S0708460K
Page 3
Main Pump (Denison T6DMY Series)
GENERAL DESCRIPTION
This section describes the servicing of "T6DMY" series pumps. Some additional information is provided
with regards to shaft seals and bolt torques for other models in the series. The T6DMY information in
indicated with an asterisk (*) or shading when appropriate.
CONSTRUCTION
General
Pumps in this series are used to develop hydraulic fluid flow for operation of industrial and mobile
equipment. The positive displacement pumping cartridges are of the rotary vane type with shaft side loads
hydraulically balanced. Flow rate depends on pump size and speed at which it is driven.
All units are designed so that direction of rotation, pumping capacity and port positions can be readily
changed to suit particular applications.

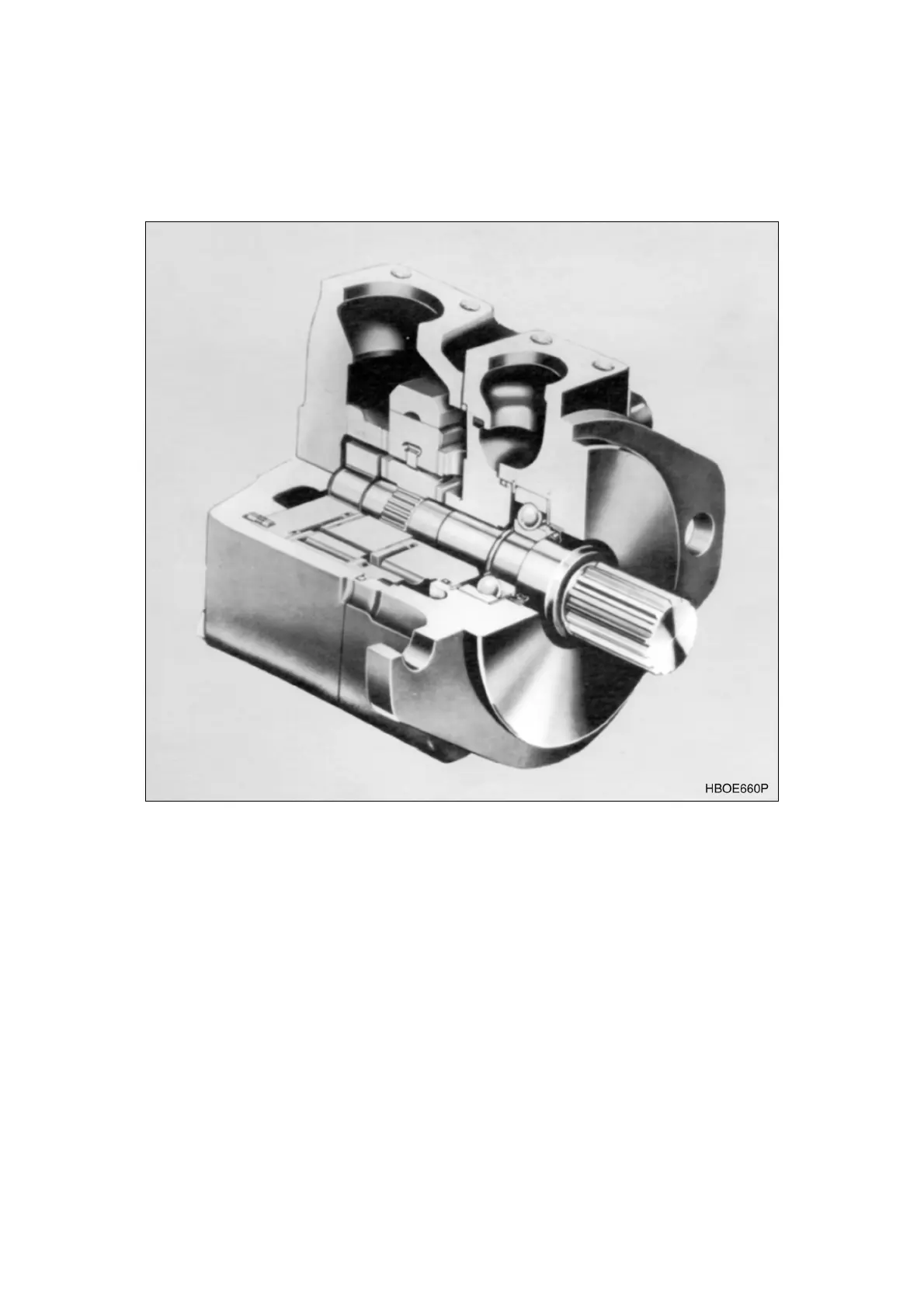

Figure 1
