S0602170K

Page 40

Axle (ZF AP 420R)

DIFFERENTIAL DISASSEMBLY (VERSION - SCREWED

BEARING CAPS)

NOTE:

Remove the two stub shafts

before separate the differential

carrier from the axle housings.

See Figure 39 - Figure 41.

1. Drain oil from the ﬁnal drive and the axle

housing.

2. Remove hex. head screws and separate

planetary carrier from the hubs using eye

hook.

NOTE:

See “Special Tools” on page 15.

3. Pull inner plate carrier (along with sun

gear) from the stub shaft.

4. Pull stub shaft out of the axle housing.

Squeeze out circlip and remove the plate

pack.

NOTE:

This step is necessary to make

the later installation of the inner

plate carrier possible.

NOTE:

See “Special Tools” on page 15.

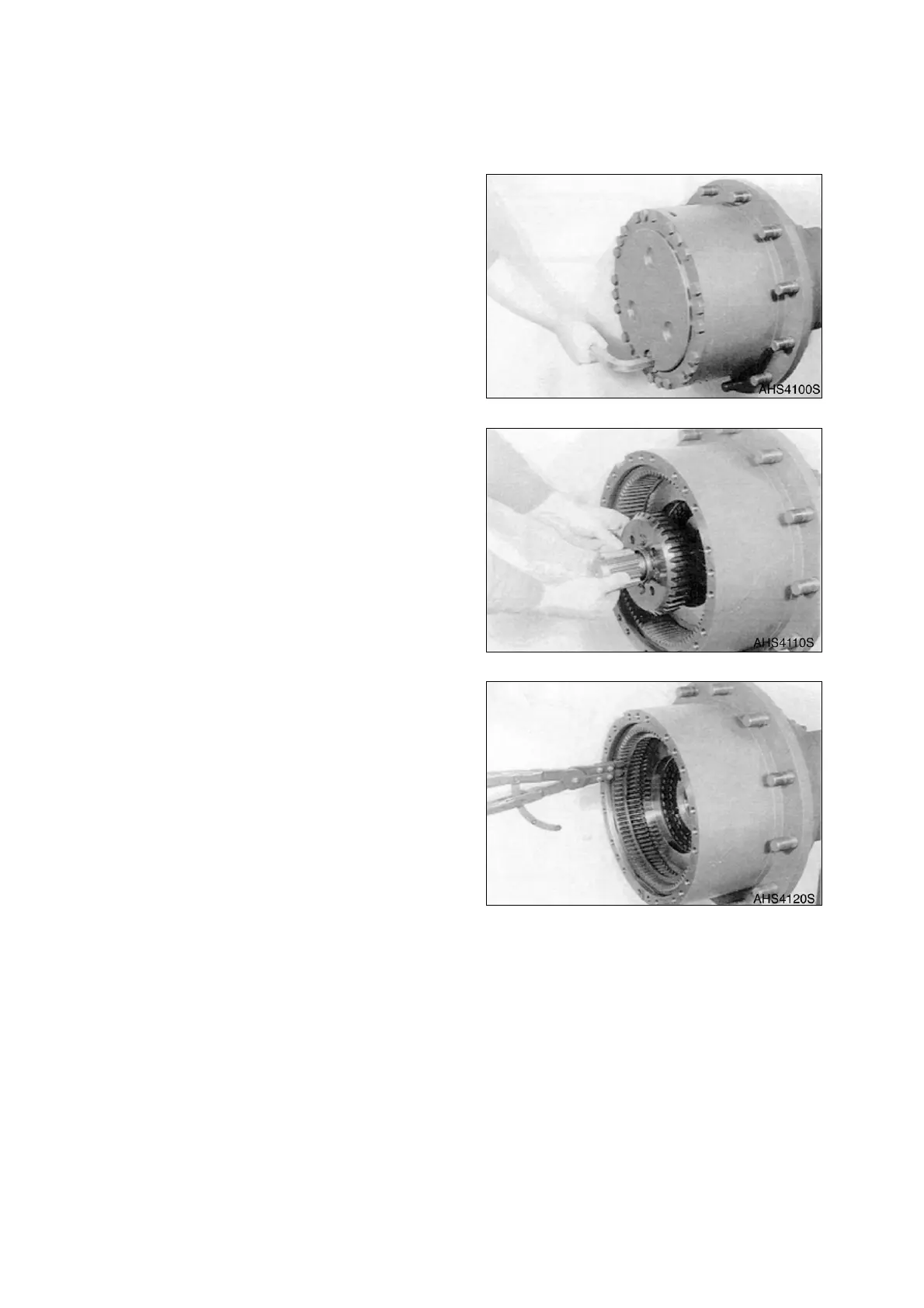

Figure 39

Figure 40

Figure 41
