Daewoo Mega 500-V - Control Unit Operation

S0802190K
Page 26
Electrical System
Return to Master Table of Contents
Control Unit Operation
AHS0120L

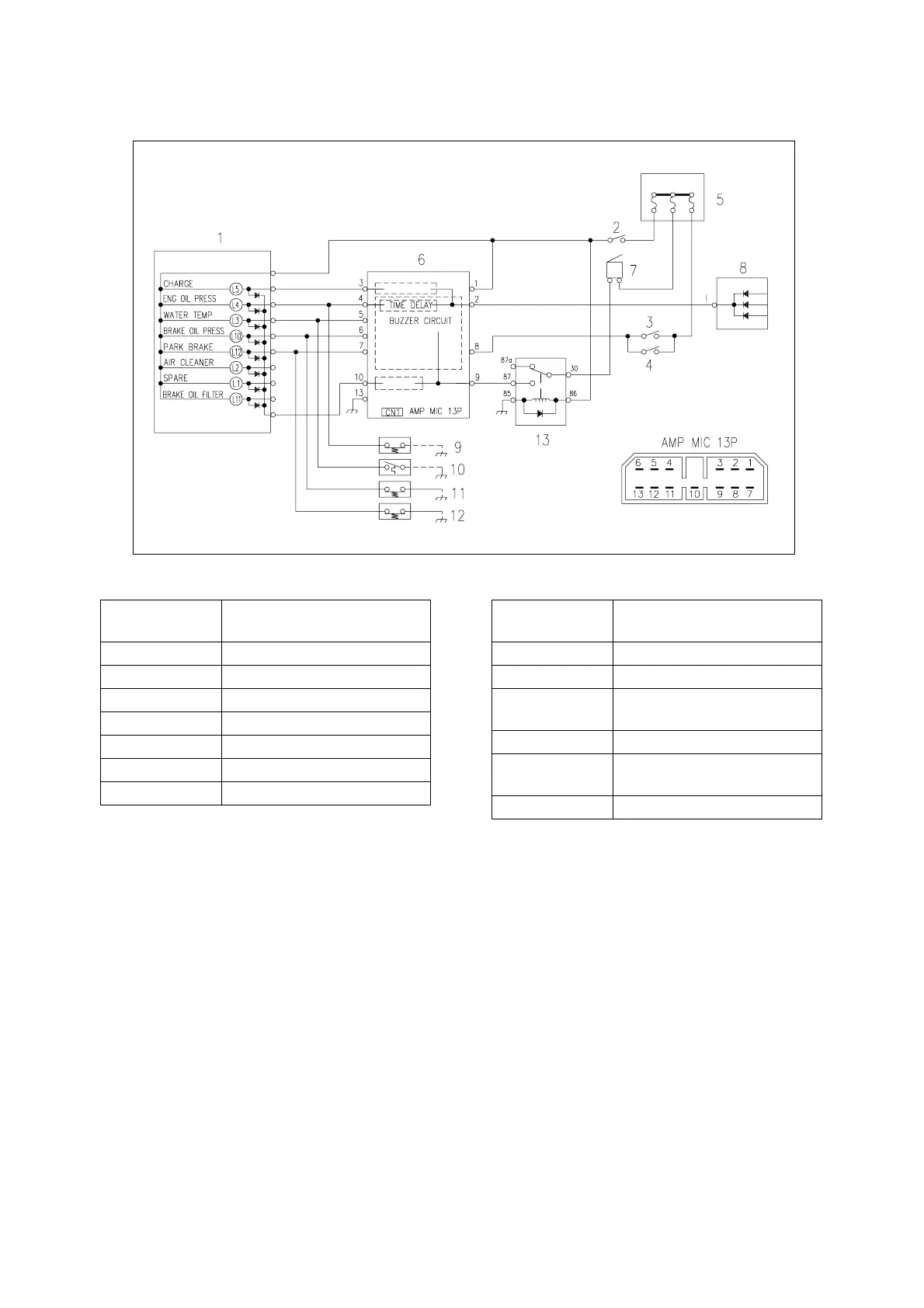

Figure 13
Reference
Number
Description
1 Instrument Panel
2 Starter Switch
3 Forward Lever Switch
4 Reverse Lever Switch
5 Fuse Box
6 Control Unit
7 Warning Buzzer
8 Alternator
9 Engine Oil Pressure Switch
10 Coolant Temperature
Switch
11 Brake Oil Pressure Switch
12 Parking Brake Pressure
Switch
13 Alarm Relay
Reference
Number
Description
