Daewoo Mega 500-V - Inductive Transmitters and Speed Sensor

S0607080K
Page 155
Transmission and Torque Converter
(ZF 4WG-310)
INDUCTIVE TRANSMITTERS AND SPEED
SENSOR

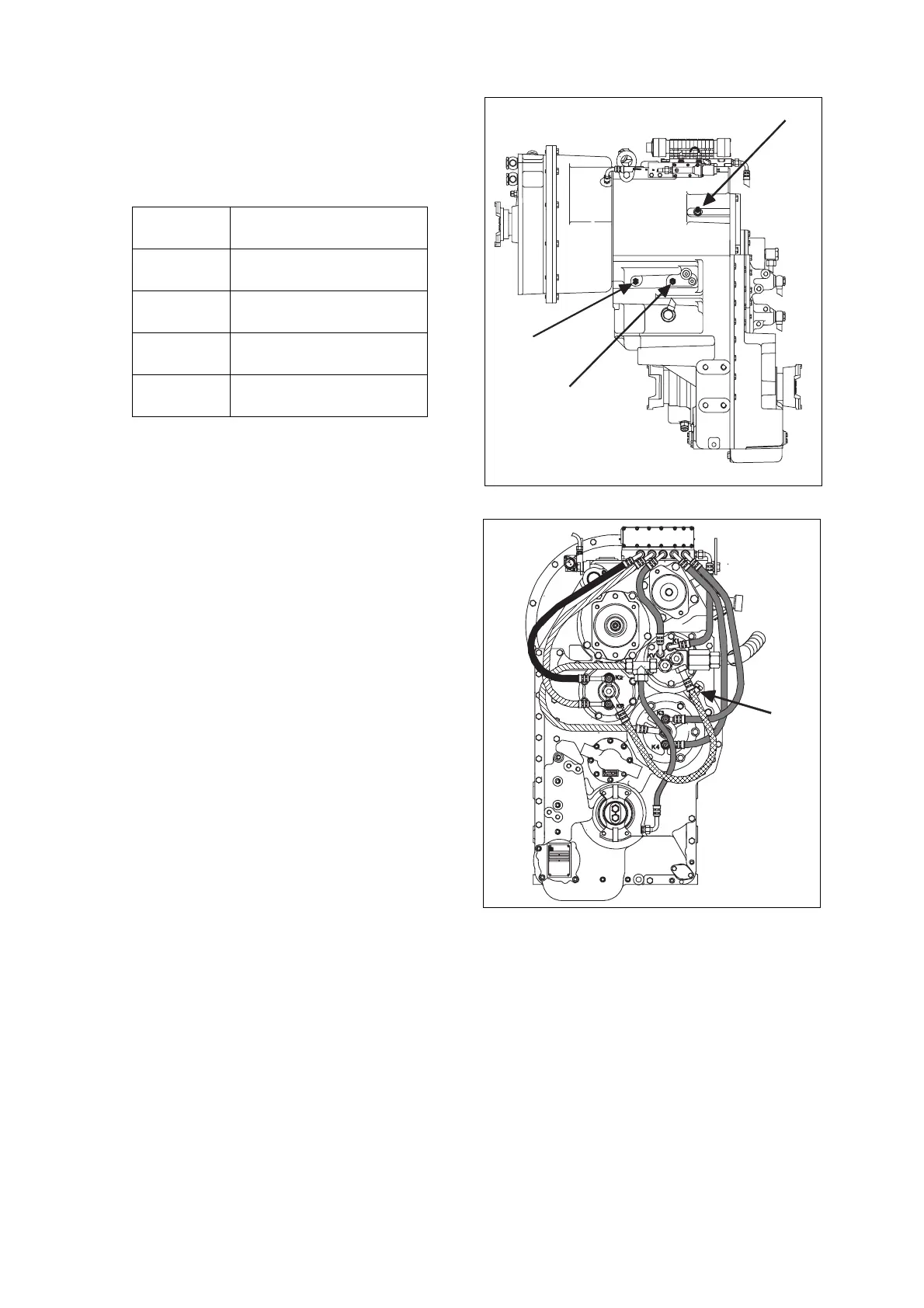

1. The figures show the installation position
of the single inductive transmitters and the
speed sensor.
Reference
Number
Description
6 Inductive Transmitter
N – Turbine
14 Inductive Transmitter
N – Engine
39 Inductive Transmitter
N – Central Gear Train 6
31 Speed Sensor N – Output
And Speedometer 39
6
39
14
AHS3460S
Figure 401
AHS3470S
B
C
31
Figure 402
