Transmission and Torque Converter
(ZF 4WG-310)
4. Tilt transmission 90˚.
5. Insert pot flush-mounted to the housing
face.
NOTE:
Wet sealing surface with Loctite
#262.
6. Install breather (Figure 399).
7. Equip screw plug (1, Figure 400) with new
O-ring and install it. Install the two
retaining plates (2, Figure 400).
8. Mount hydraulic control unit (HSG-94), see
page 56 - page 58.
9. Install all oil lines.
CAUTION!
The line routing is different
according to the design. In this
connection, pay attention to the
Perspective Illustrations of the
corresponding Spare Parts List.

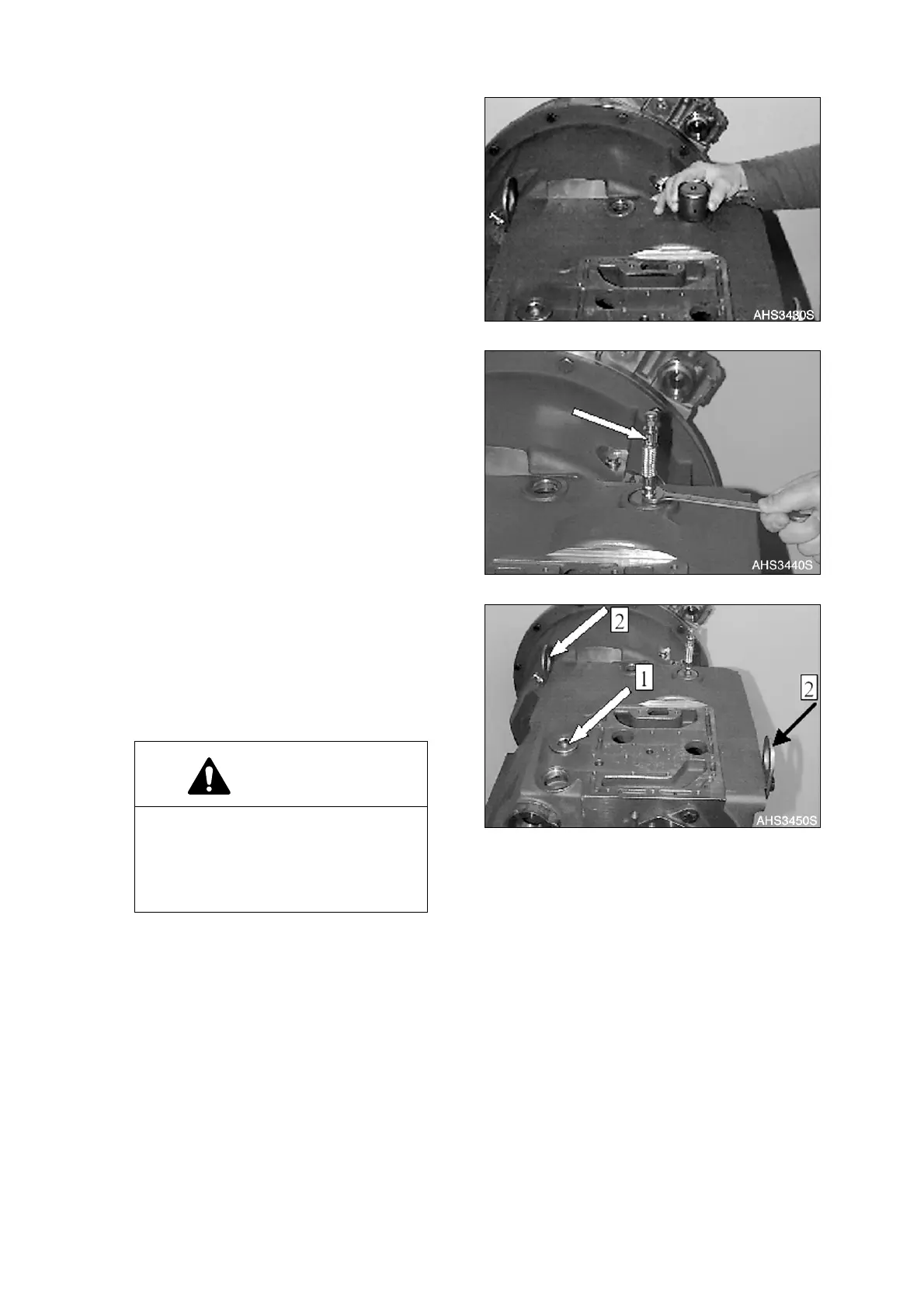

Figure 398
Figure 399
Figure 400
