Daewoo Mega 500-V - Central Gear Pick-Up Sensor; Engine Pick-Up Sensor; Turbine Pick-Up Sensor

S0607080K
Page 17
Transmission and Torque Converter
(ZF 4WG-310)
ENGINE PICK-UP SENSOR
1. Detect a revolution of gear array in engine
side.
2. Specification
• Resistance: 1050 Ω ± 10% (at 20˚C
(68˚F)).
• Fasten torque: 30 Nm (22 ft lb).
• Gap: 0.5 + 0.3 mm (0.0197 + 0.0118
in).
• Output: 4 Pulse/Rev.
CENTRAL GEAR PICK-UP SENSOR
1. Detect a revolution of central gear array
2. Specification
• Resistance: 1050 Ω ± 10% (at 20˚C
(68˚F)).
• Fasten torque: 30 Nm (22 ft lb).
• Gap: 0.5 + 0.3 mm (0.0197 + 0.0118
in).
• Output: 91 Pulse/Rev.
TURBINE PICK-UP SENSOR
1. Detect a revolution of gear array in turbine
side.
2. Specification
• Resistance: 1050 Ω ± 10% (at 20˚C
(68˚F)).
• Fasten torque: 30 Nm (22 ft lb).
• Gap: 0.5 + 0.3 mm (0.0197 + 0.0118
in).
• Output: 59 Pulse/Rev.

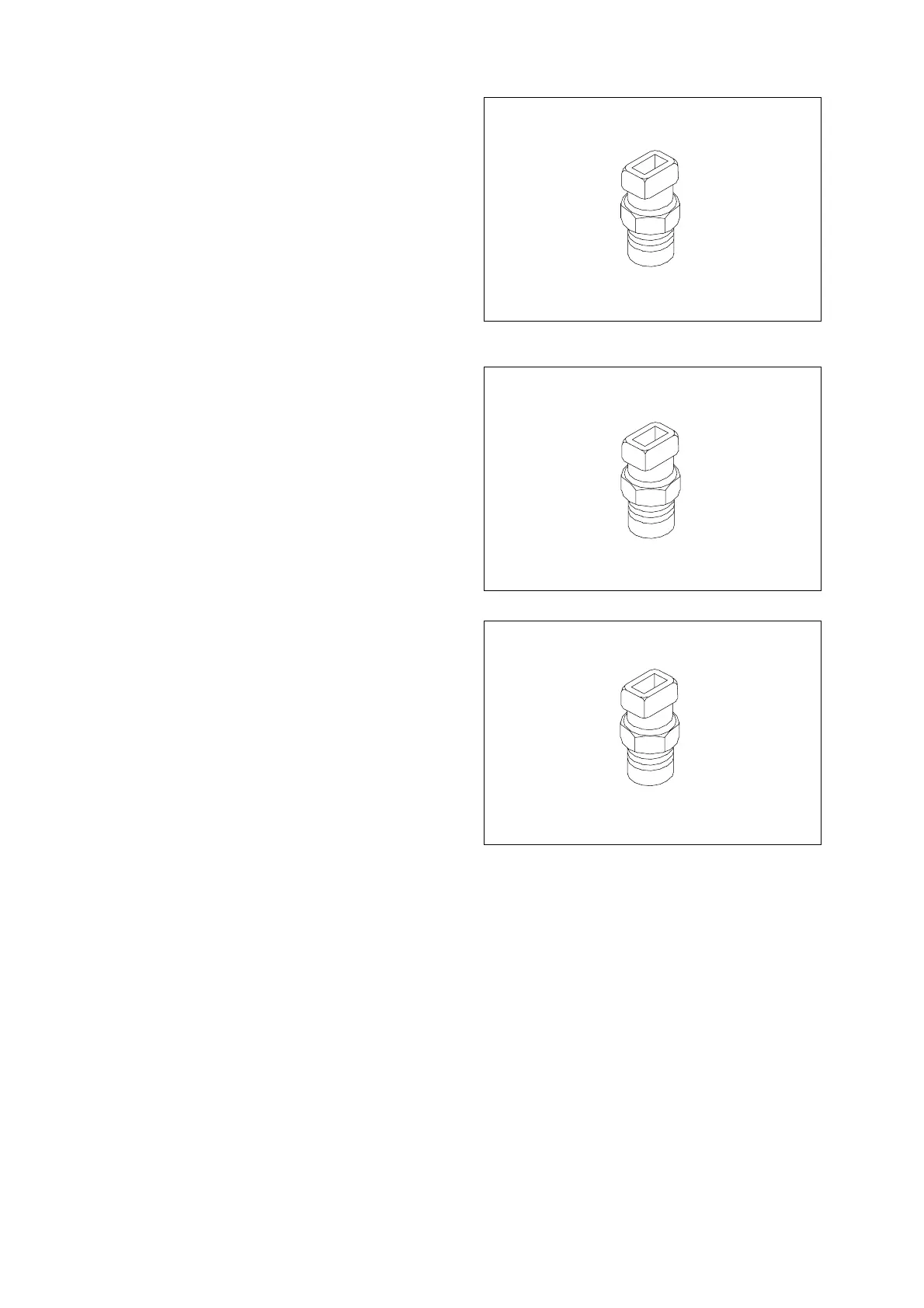

AJS0230L
Figure 9
AJS0240L
Figure 10
AJS0250L
Figure 11
