Transmission and Torque Converter
(ZF 4WG-310)
22. Drive roller bearing out of housing bore
and remove it.
MULTIDISK CLUTCHES
1. Disassemble clutch K4/K3, KR/K2 and KV/
K1 using lifting device.
NOTE:
At the disassembly of the clutch
K4/K3, lift clutch KR/K2 slightly
and displace it in arrow
direction, see Figure 122.
2. Figure 123, shows the clutches in
disassembled condition.
3. Remove countershaft gear.

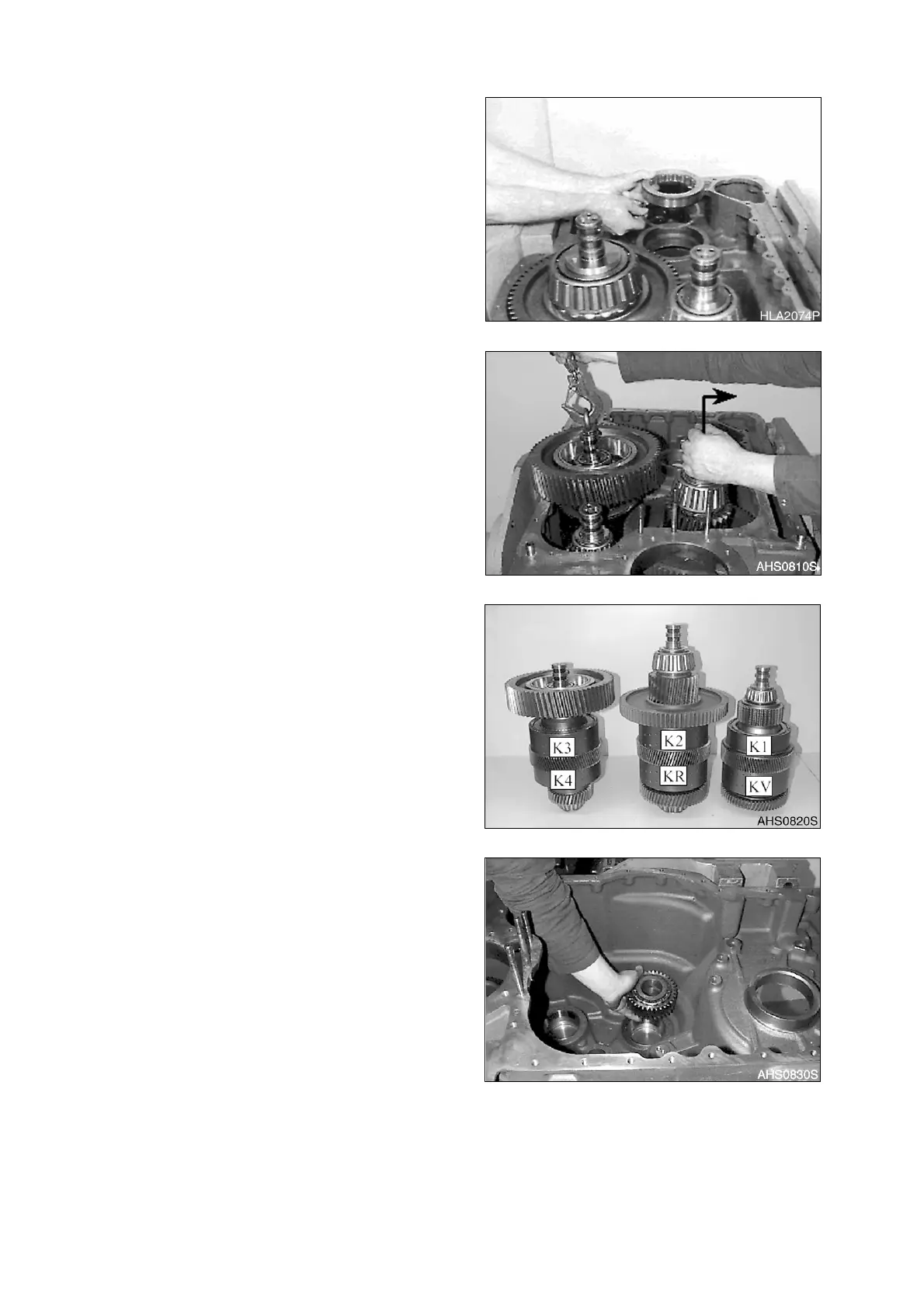

Figure 121
Figure 122
Figure 123
Figure 124
