S0605050K
Page 3
Air Conditioner
Return to Master Table of Contents

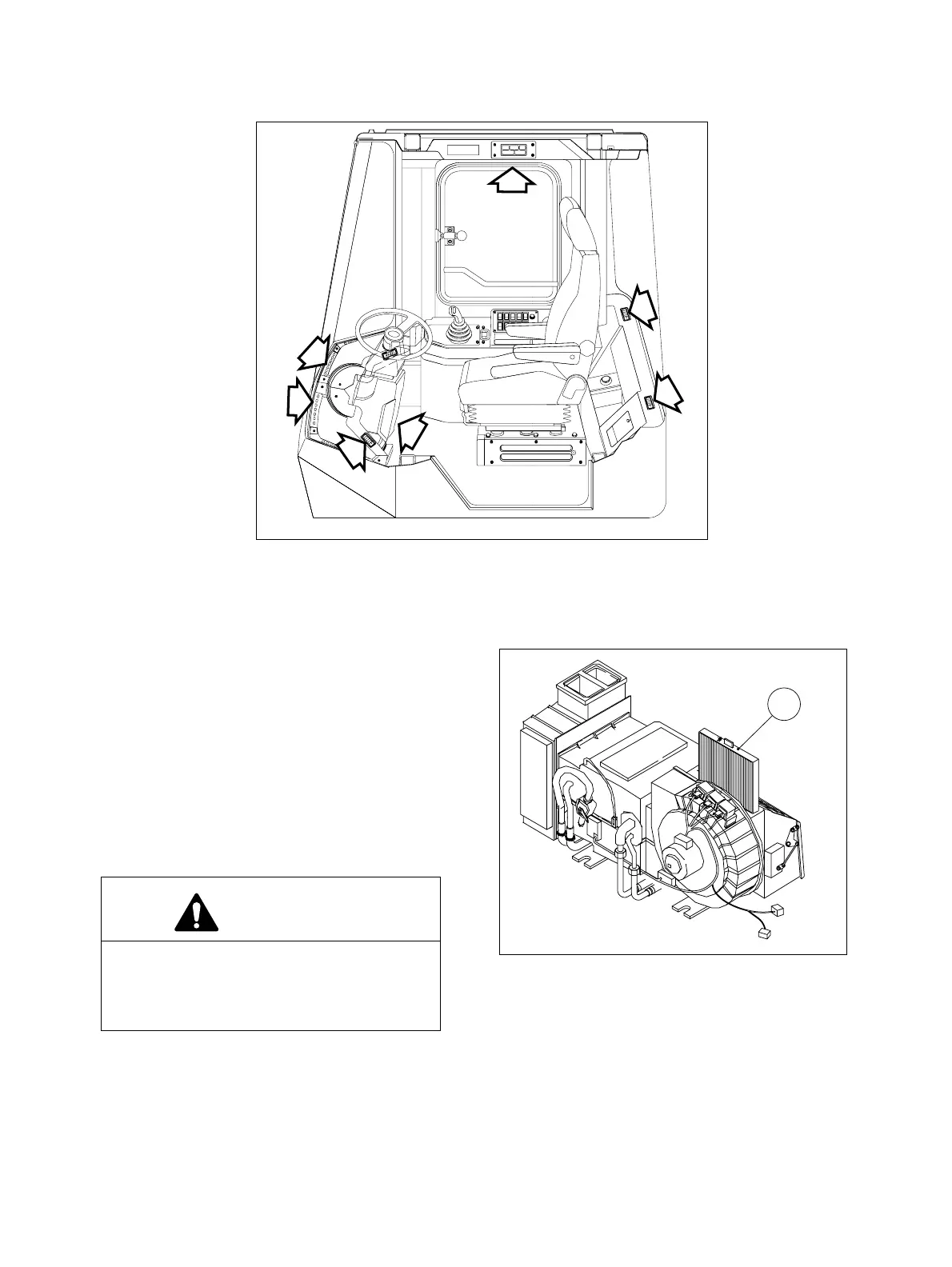

GENERAL DESCRIPTION
The heater and air conditioner are combined into one blower unit in the right control stand of operator’s
seat. If necessary, the operator can control inner temperature using the operation panel installed in the top
of the right side door.
The unit is equipped with an air filtration system
which filters out dirt and dust particles from air
being circulated into the operator’s cab. This
filter (1, Figure 2) should be cleaned out at
approximately every 500 hours and replaced
with a new one every 1000 hours.
NOTE:
In the event that the unit is
being operated in a dusty
environment, cleaning and
replacement should be
performed more frequently.
NOTE:
Refer to appropriate operation
and maintenance manual for
latest service intervals.
WARNING!
All service and inspection of the air-
conditioning system should be performed
with the starter switch in the "O" (OFF)
position.
AJS0880L
Figure 1
11
AJS0530L
Figure 2
