Transmission and Torque Converter
(ZF 4WG-310)

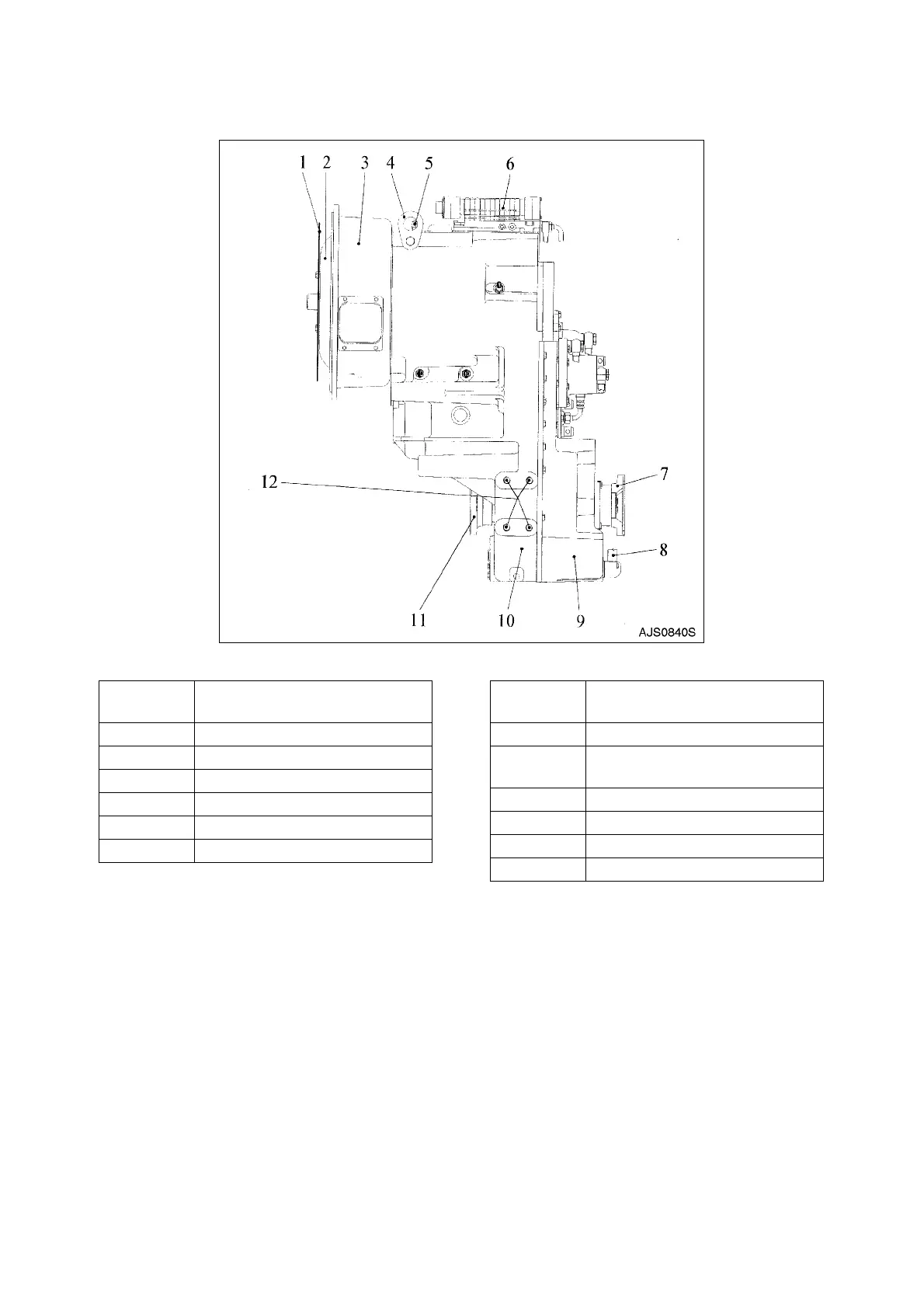

SIDE VIEW
Figure 38
Reference
Number
Description
1 Diaphragms for Direct Mounting
2 Converter
3 Converter Bell
4 Lifting Lug
5 Breather
6 Electro-hydraulic Shift Control
7 Output Flange (Rear -side)
8 Oil Filler Tube with Oil Dipstick
(Rear-side)
9Cover
10 Gearbox Housing
11 Output Flange (Converter-side)
12 Transmission Suspension M20
Reference
Number
Description
