Daewoo Mega 500-V - Final Drive; Planetary Rigid Axle AP 407 - 420 Disassembly

S0602170K
Page 34
Axle (ZF AP 420R)
PLANETARY RIGID AXLE AP 407 - 420 DISASSEMBLY

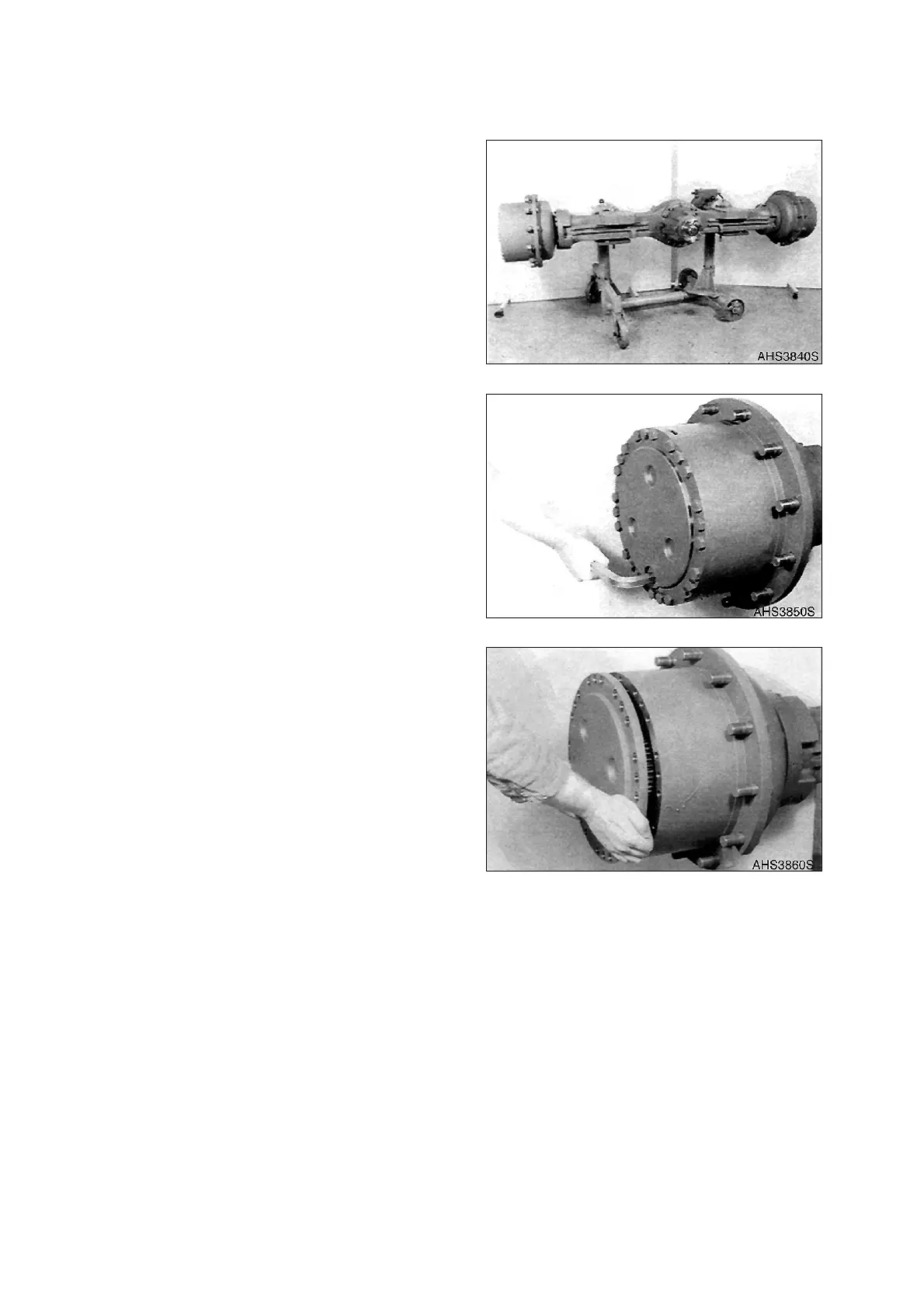

Figure 18, shows the total view of the axle.
NOTE: See “Special Tools” on page 15.
FINAL DRIVE
1. Remove oil drain plug and drain oil.
2. Remove hex. head screws and lift off the
planetary carrier.
Figure 18
Figure 19
Figure 20
