S0602170K
Page 35
Axle (ZF AP 420R)

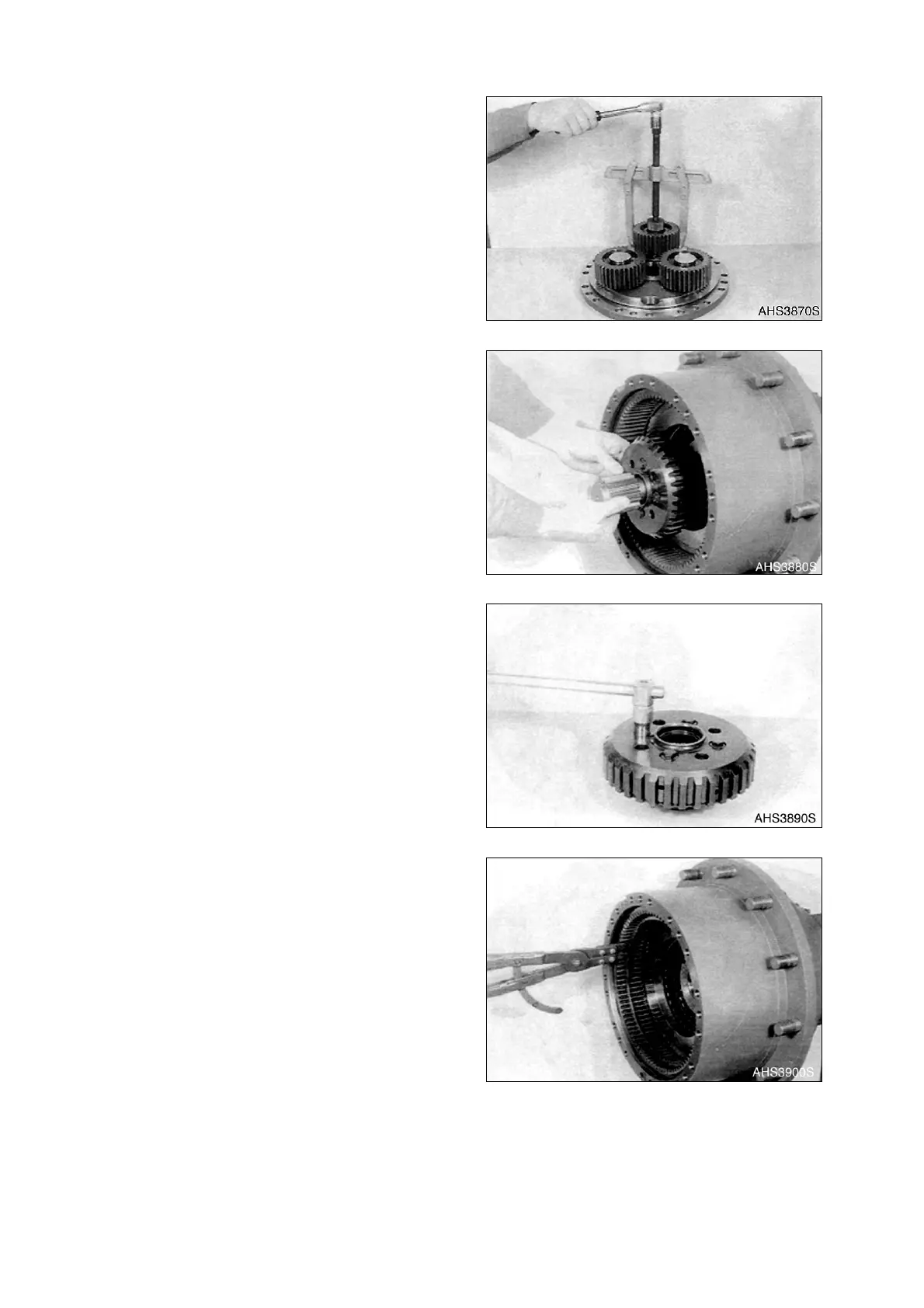

3. Squeeze out circlip and pull off the
planetary gears.
4. Remove thrust washer.
NOTE:
See “Special Tools” on page 15.
5. Pull sun gear along with inner plate carrier
from the stab shaft, resp. out of the plate
pack.
6. Remove locking screws and remove ring
from the inner plate carrier.
7. Squeeze out circlip.
NOTE:
See “Special Tools” on page 15.
Figure 21
Figure 22
Figure 23
Figure 24
