Daewoo Mega 500-V - Control Specifications

S0605050K
Page 7
Air Conditioner
Return to Master Table of Contents

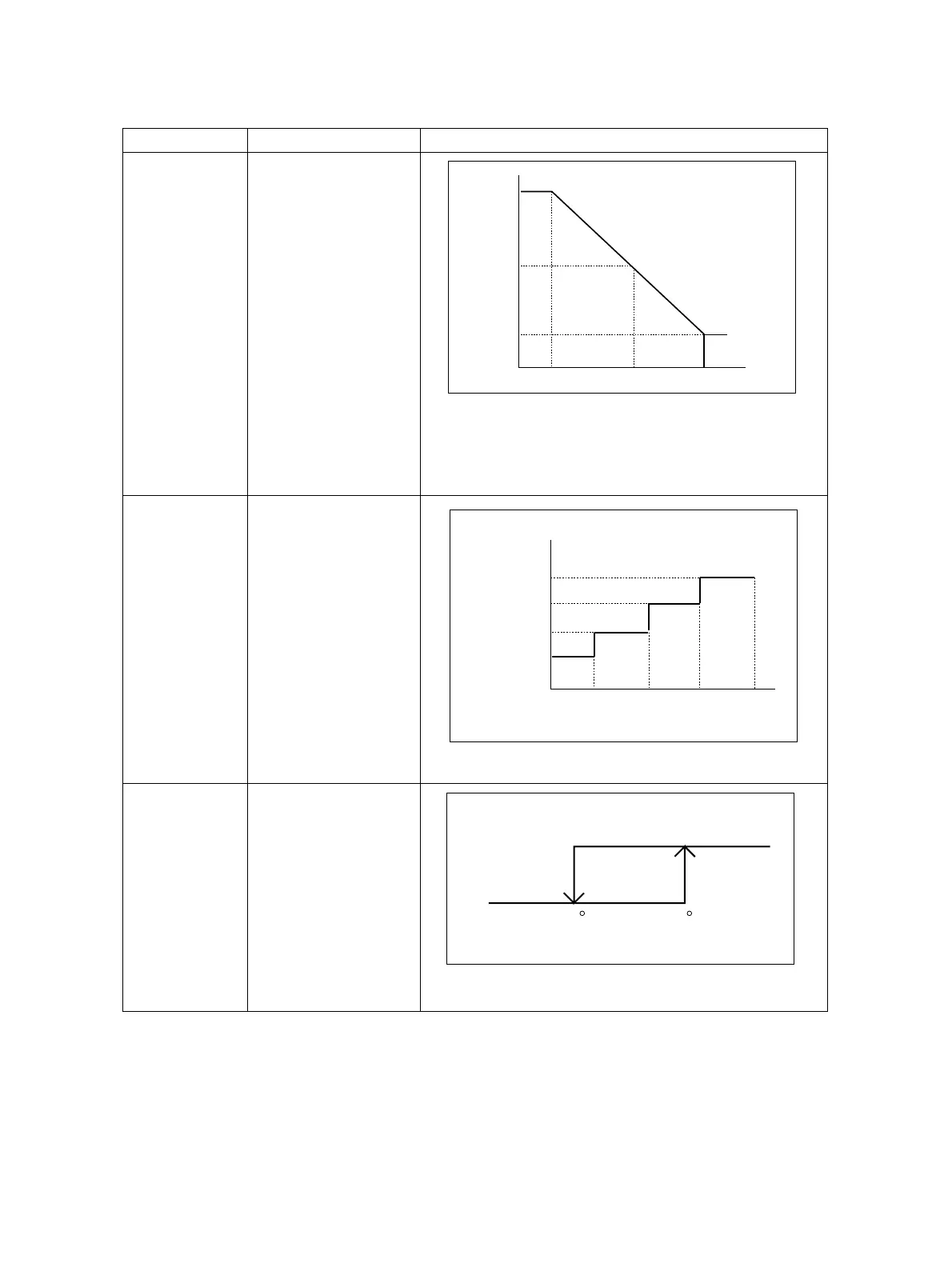

CONTROL SPECIFICATIONS
Control Item Control Switch Control Specifications
Temperature
Control
"COOL" Switch
"WARM" Switch
Temperature control switch consists of a 24 step
variable selector. The display uses 7, Green / Red two-
color LED’s to display the selected temperature.
Blower Fan
Speed Control
"OFF" Switch
"LOW" Switch
"MID" Switch
"HI" Switch
Compressor
Control
Temperature Sensor
100%
50%
0%
MAX HOT
MAX COOL
HDA6049L
Figure 6
HI RELAY
MID RELAY
LOW RELAY
OFF LOW MID HI
HDA6050L
Figure 7
COMP OFF
COMP ON
1.5 C
4.0 C
HDA6051L
Figure 8
