S0607080K
Page 98
Transmission and Torque Converter
(ZF 4WG-310)
Multidisk Clutch - KR

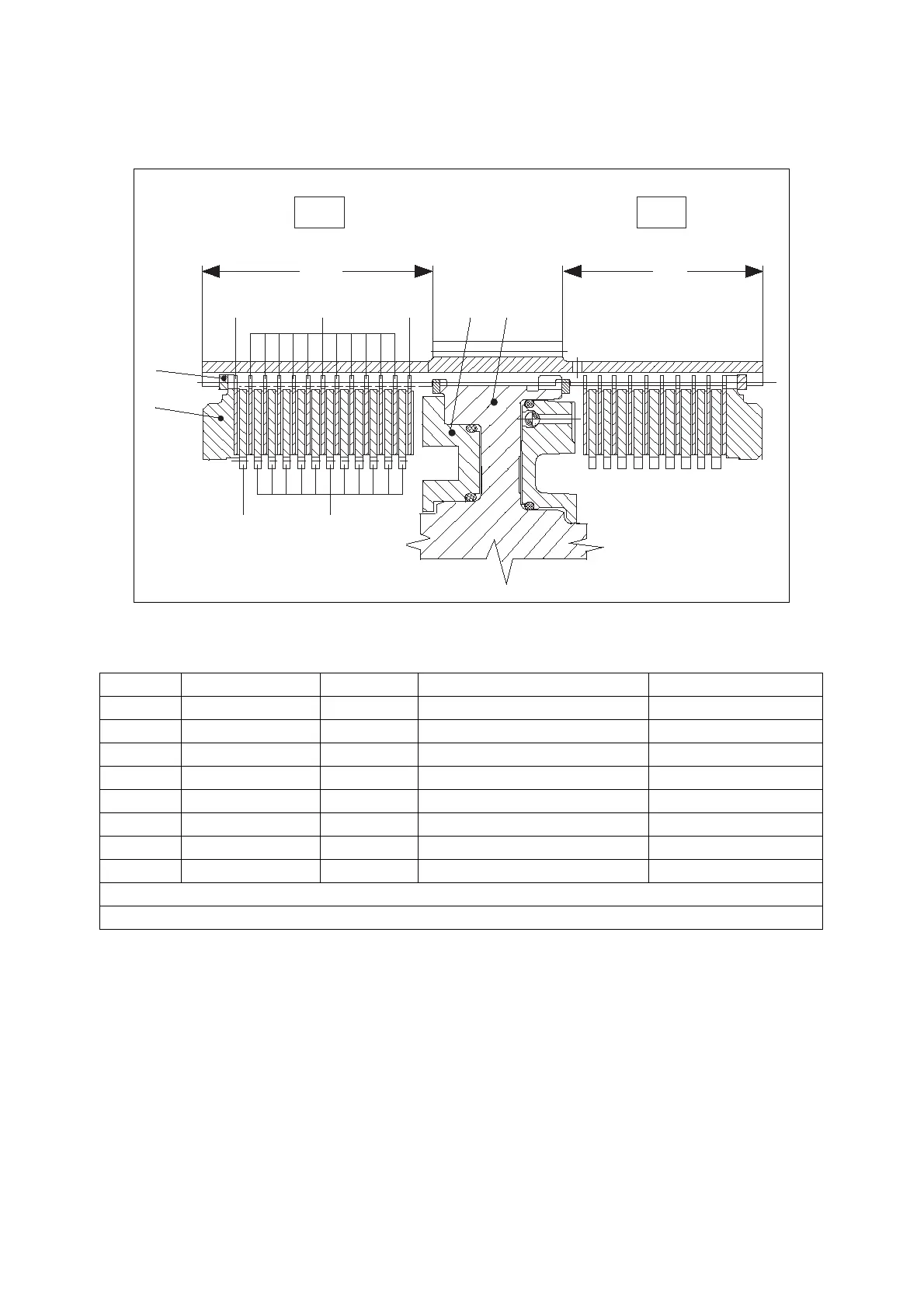

Figure 218, shows the plate stacking and the installation position of the components.
NOTE:
Install outer plates Item 3, with the uncoated side facing the piston, resp. the end shim.
The respective clutch side can be recognized by the length of the plate carrier, see Figure
218.
KR = Dimension Y (long plate-carrier side)
K2 = Dimension X (short plate-carrier side)
Item Denomination Quantity s (mm) Comment
1 Plate Carrier 1
2 Piston 1
3 Outer Plate 2 1.85 (0.0728 in) One-side Coated
4 Outer Plate 11 2.5 (0.0984 in) Coated On Both Sides
5 Inner Plate 11 2.5 (0.0984 in)
6 Inner Plate 1 3.0 (0.1181 in) Optional
7 Snap Ring 1 2.5 - 4.0 (0.0984 - 0.1575 in) Optional
8 End Shim 1
Number of friction surfaces: 24
Plate clearance: 2.8 - 3.0 mm (0.1102 - 0.1181 in)
AHS1780S
33
4
65
7
8
21
KR K2
KR
Figure 218
