Transmission and Torque Converter
(ZF 4WG-310)
1. Check Plate clearance KR = 2.8 - 3.0 mm
(0.1102 - 0.1181 in) (Figure 219 - Figure
221).
NOTE:
To ensure a faultless measuring
result, install the plates for the
present without oil.
A. Install plate pack according to Figure
218.
B. Introduce end shim and secure it
using snap ring.
C. Press the end shim on with about
100 N (10 kg) and set the dial
indicator to "Zero." Now, press the
end shim against the snap ring
(upward) and read the plate
clearance on the dial indicator.
D. After the performed adjustment of the
plate clearance, disassemble the
plate pack, oil plates according to ZF-
List of lubricants TE-ML 03 and
install them again.
IMPORTANT
In case of deviations from the required plate clearance = 2.8 - 3.0 mm (0.1102 - 0.1181 in), correct
with corresponding inner plate Item 6 (optional 2.5 - 4.0 mm (0.0984 - 0.1575 in)) or and snap ring
Item 7 (optional).

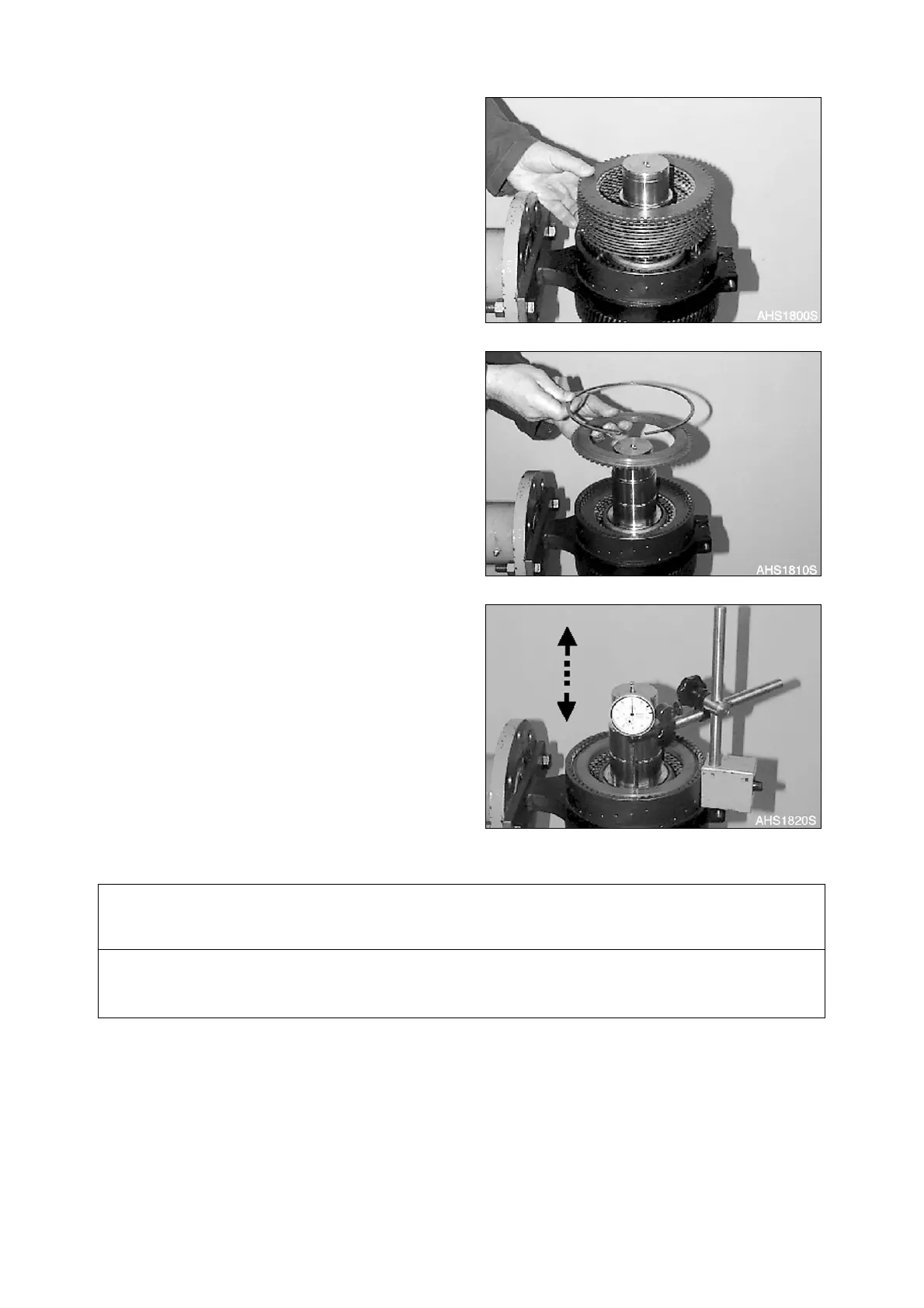

Figure 219
Figure 220
Figure 221
