Transmission and Torque Converter
(ZF 4WG-310)

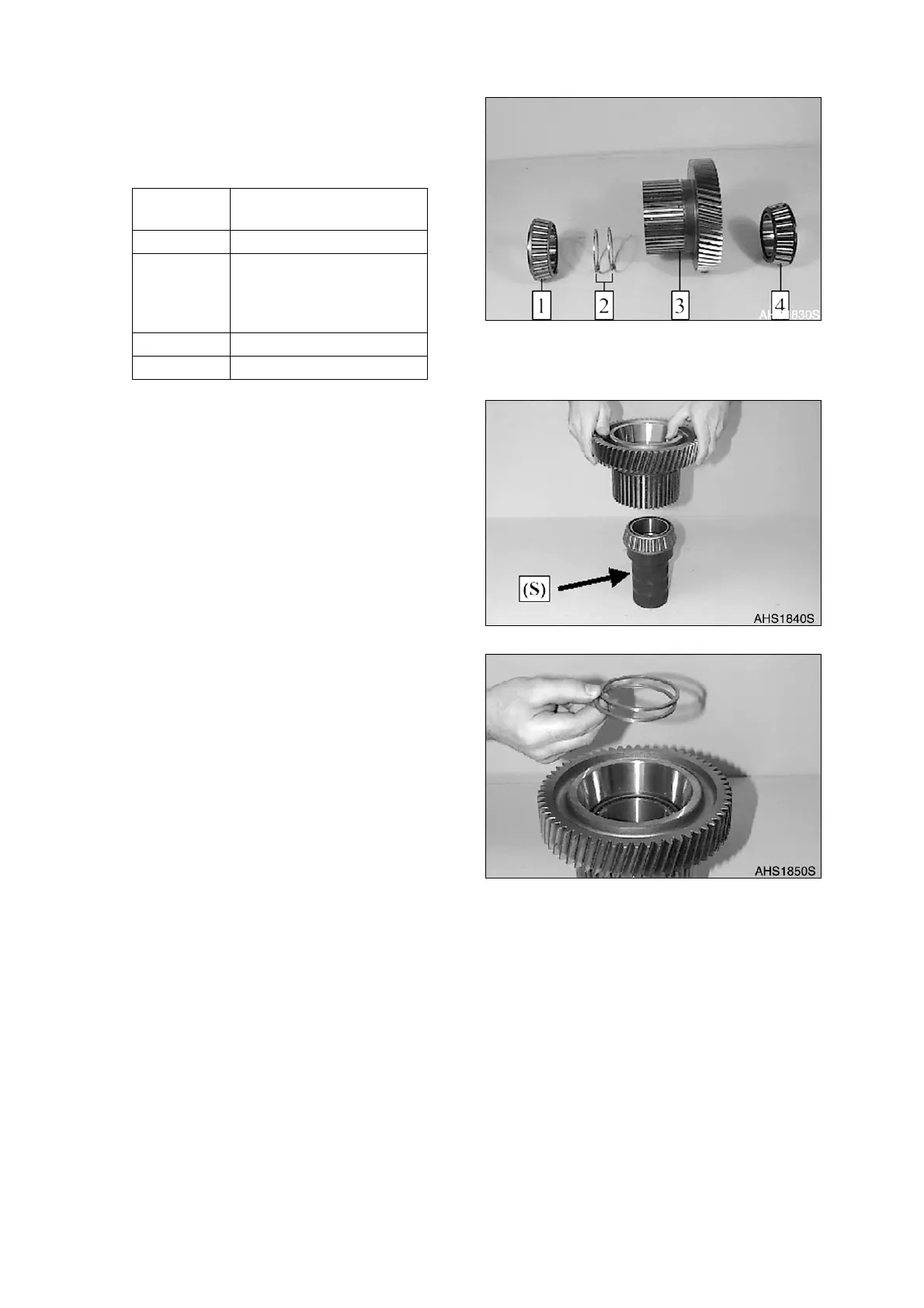

2. Pre-assemble and install Spur gear KR
(Figure 222 - Figure 230)
A. Figure 222, shows the components
of spur gear KR.
B. Check Axial play – Spur gear bearing
0.0 - 0.05 mm (0.0 - 0.0020 in).
C. Place spur gear over the inner
bearing race.
D. Introduce shims (2 pieces/s = 3.0
(0.1181 in) and s = 3.10 mm (0.1220
in)).
Reference
Number
Description
1 Inner Bearing Race
2 Shim s=3.0 and
s=3.10 mm
(∑=6.10 mm / Empirical
Value)
3 Spur Gear
4 Inner Bearing Race
Figure 222
Figure 223
Figure 224
