S0607080K
Page 153
Transmission and Torque Converter
(ZF 4WG-310)
22. Introduce converter bell using lifting device
until contact is obtained.
NOTE:
Slight rotary motions of the
input shaft will facilitate the
sliding in. Protect the splines
from damage. Pay attention to
the radial installation position.
CONVERTER
1. Fasten diaphragms (3x) on converter,
using hex. head screws (mount plain
washer).
NOTE:
Insert hex. head screws with
Loctite #243.
NOTE:
Torque limit (M10/8.8) 4.69
kg•m (33.93 ft lb).
2. Squeeze in and engage rectangular ring
(Figure 396). Now, grease rectangular and
align it centrically.
3. Install converter using lifting drive until
contact is obtained.

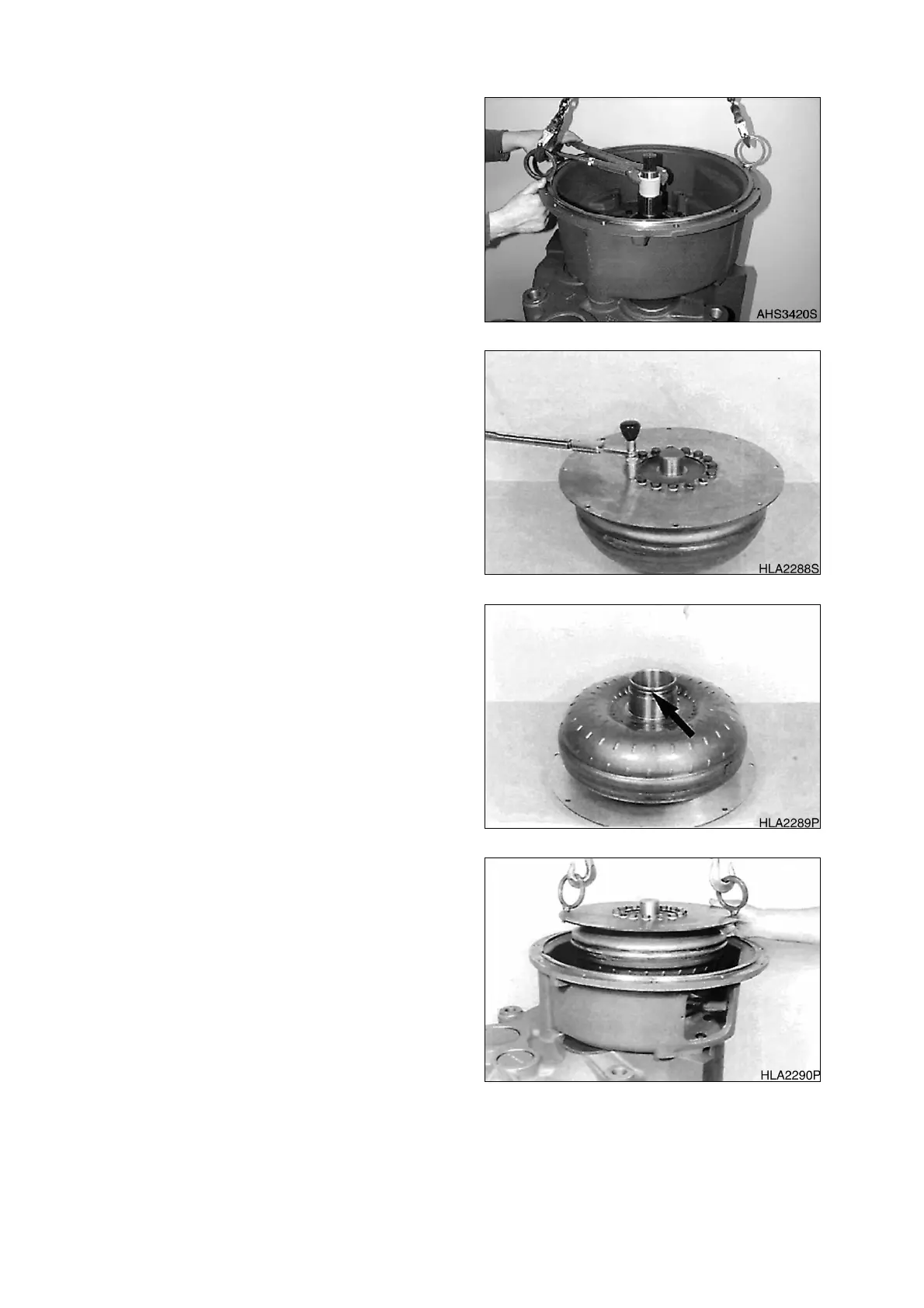

Figure 394
Figure 395
Figure 396
Figure 397
