S0607080K
Page 152
Transmission and Torque Converter
(ZF 4WG-310)

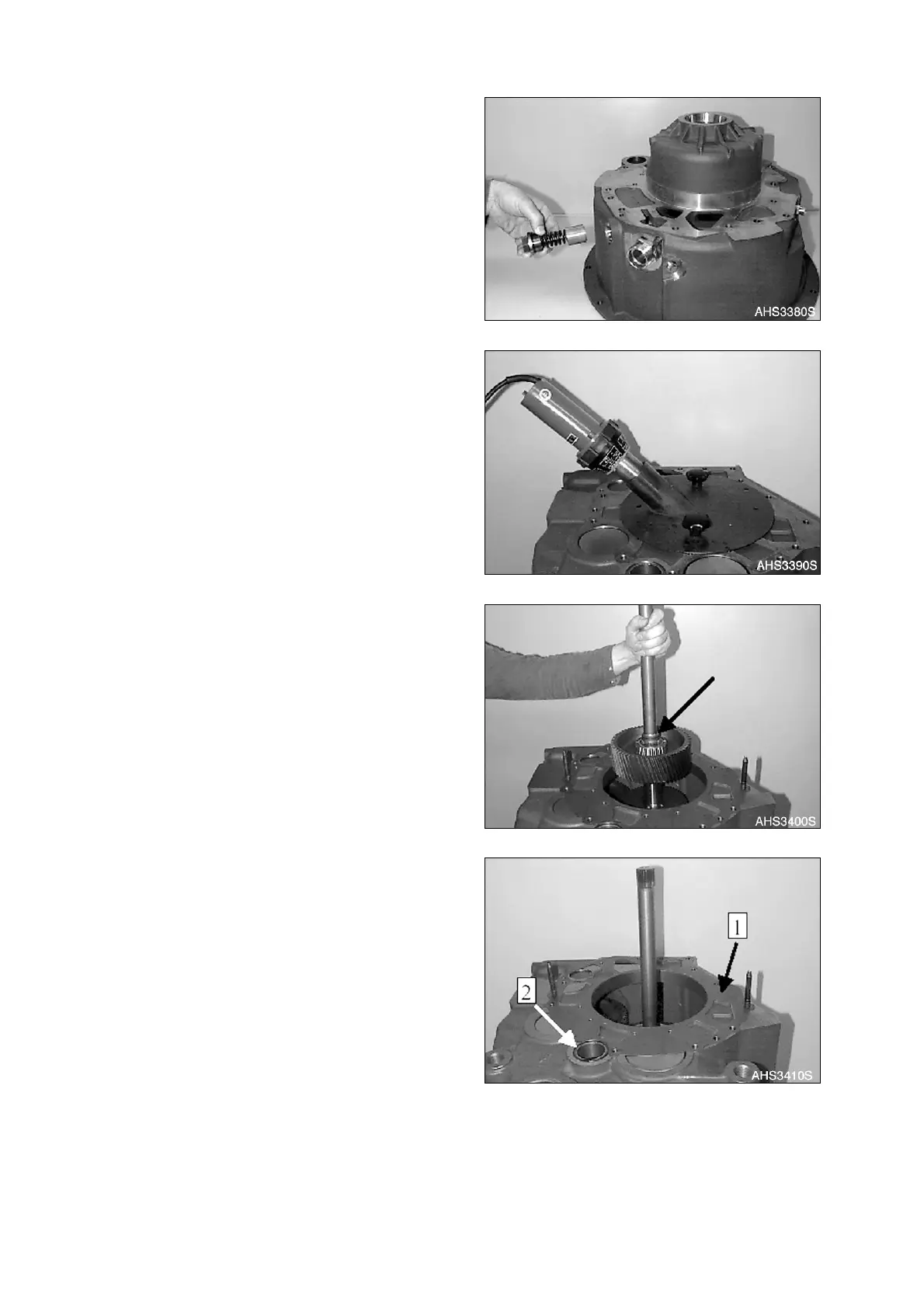

B. Introduce spool and compression
spring.
C. Equip screw plug with new O-ring
and install it.
NOTE:
Torque limit 130 Nm (96 ft lb).
18. Remove input shaft and heat housing bore
(about 120˚C (248˚F)).
NOTE:
Carry out the following steps
(Figure 392 - Figure 394) in
immediate chronological order.
19. Grease rectangular ring (Arrow) and align
it centrically. Introduce input shaft until
contact is obtained.
NOTE:
Pay attention to the overlapping
of the fitting key with the fitting
key groove.
20. Install two adjusting screws and mount flat
gasket (1, Figure 393).
21. Lay O-ring (2, Figure 393) into the annular
groove.
Figure 390
Figure 391
Figure 392
Figure 393
