Transmission and Torque Converter
(ZF 4WG-310)
13. Introduce supercooled oil feed flange until
contact is obtained.
NOTE: Pay attention to the radial
installation position.
14. Mount flat gasket (Arrow) and install
bearing cover.
NOTE: Pay attention to the radial
installation position.
NOTE: Torque limit (M10/8.8) 46 Nm
(34 ft lb).
15. Wet thread of the screw-in sleeves (1 and
2, Figure 388) with Loctite #262 and install
the two screw-in sleeves.
16. Equip screw plugs (3 and 4, Figure 388)
with new O-rings and install them.
NOTE: Torque limit (10x1) 25 Nm (18 ft
lb).
NOTE: Torque limit (M14x1,5) 35 Nm
(26 ft lb).
17. Converter Pressure Backup Valve (Figure
389 and Figure 390).
A. Drive roll pin (6 x 50 mm) (0.2362 x
1.9685 in) into the bore until contact
is obtained.
CAUTION!
Use protective gloves.

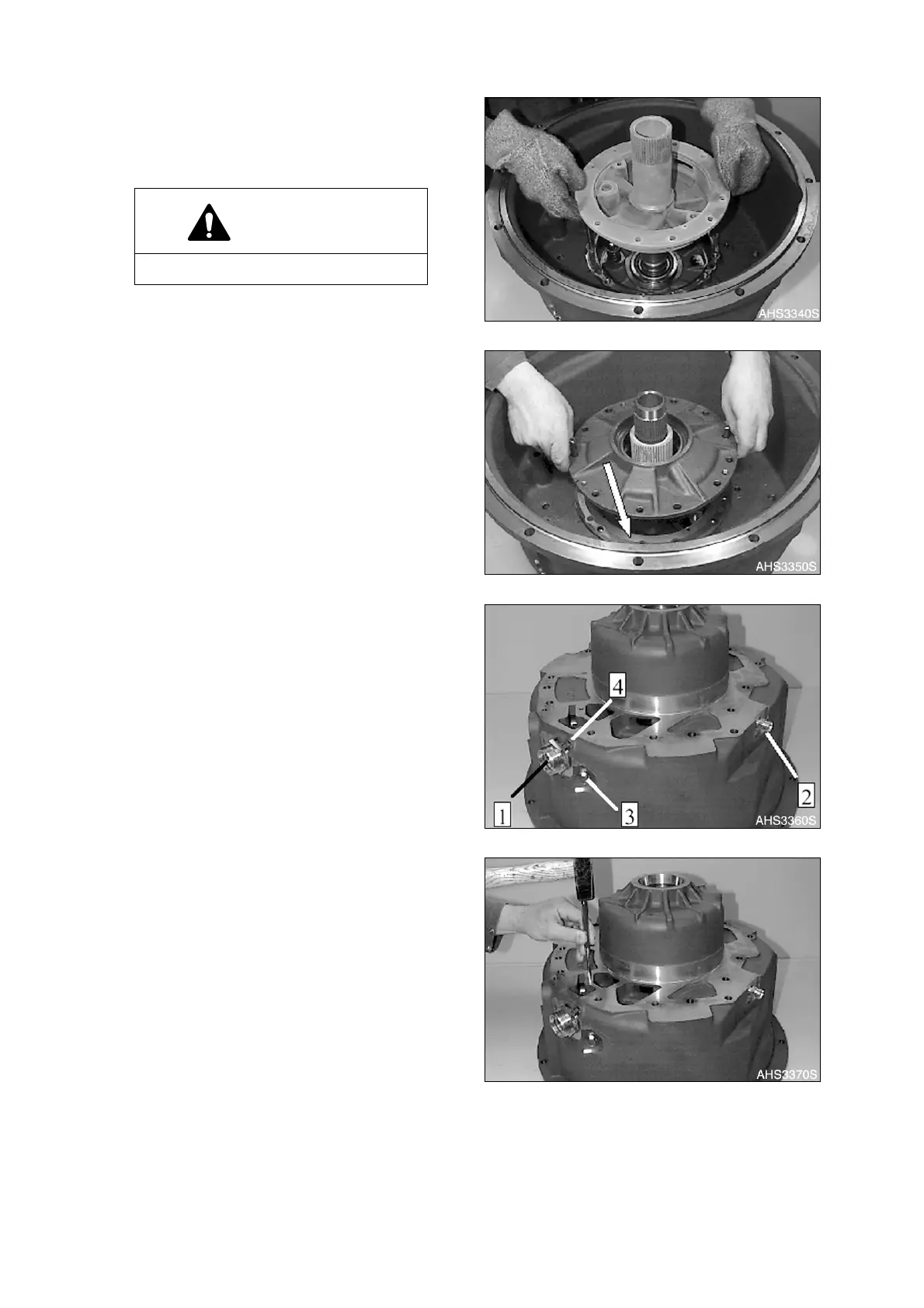

Figure 386
Figure 387
Figure 388
Figure 389
