S0607080K
Page 150
Transmission and Torque Converter
(ZF 4WG-310)

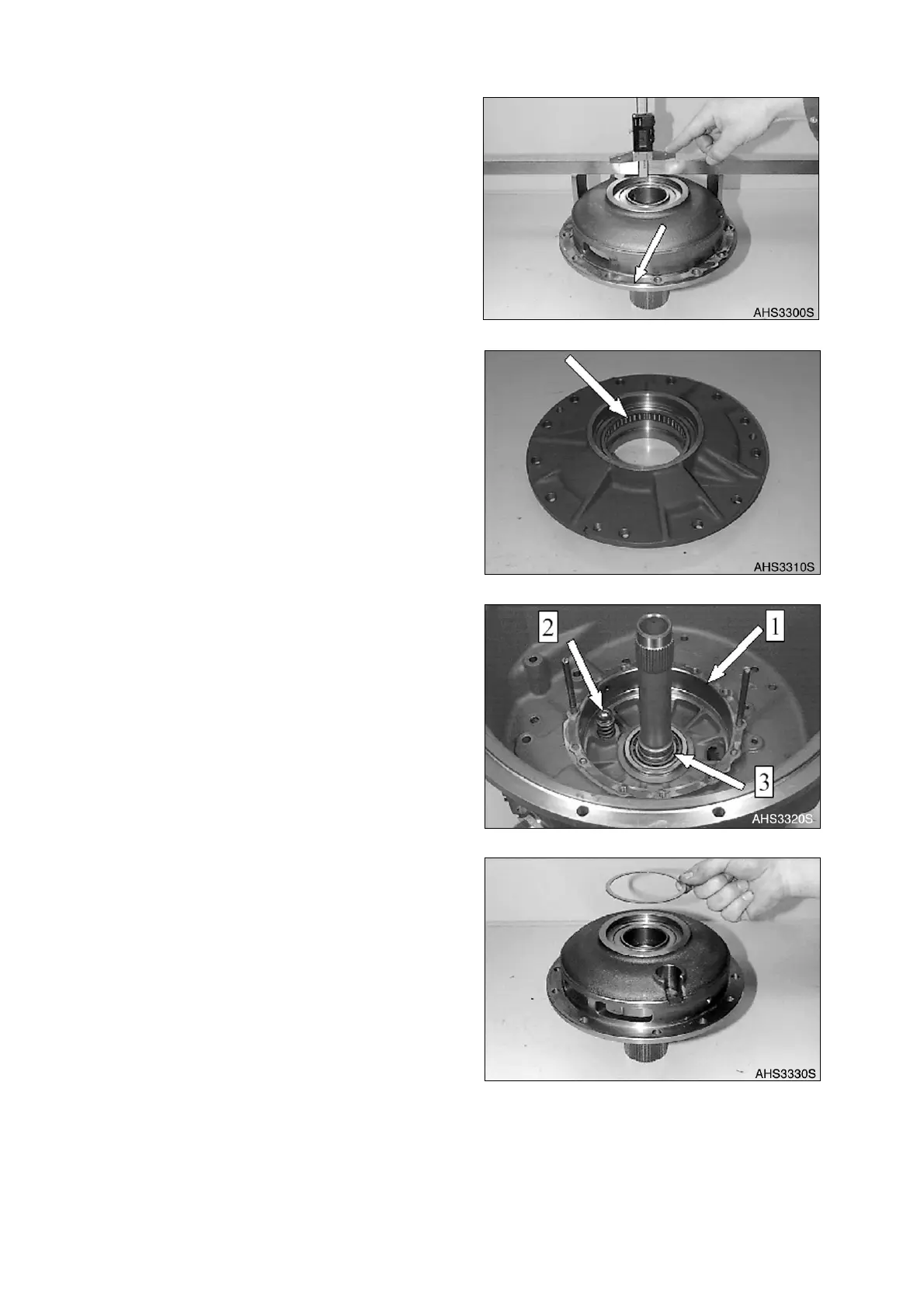

8. Insert needle sleeve (Figure 383), with the
reinforced shell facing the pressing-in tool
until contact is obtained.
9. Install two adjusting screws and mount
gasket (1, Figure 384).
10. Install converter safety valve (disk,
compression spring and ball), see (2,
Figure 384). Squeeze both rectangular
rings into the annular grooves of the input
shaft and engage them (3, Figure 384).
11. Now, grease rectangular rings and align
them centrically.
12. Supercool oil feed flange, (about -80˚C
(-112˚F)) and make shim s = 1.05 mm
(0.0413 in) (see Example, page 149)
adhere with assembly grease in the
bearing bore.
Figure 382
Figure 383
Figure 384
Figure 385
