Daewoo Mega 500-V - Page 400

S0607080K
Page 149
Transmission and Torque Converter
(ZF 4WG-310)

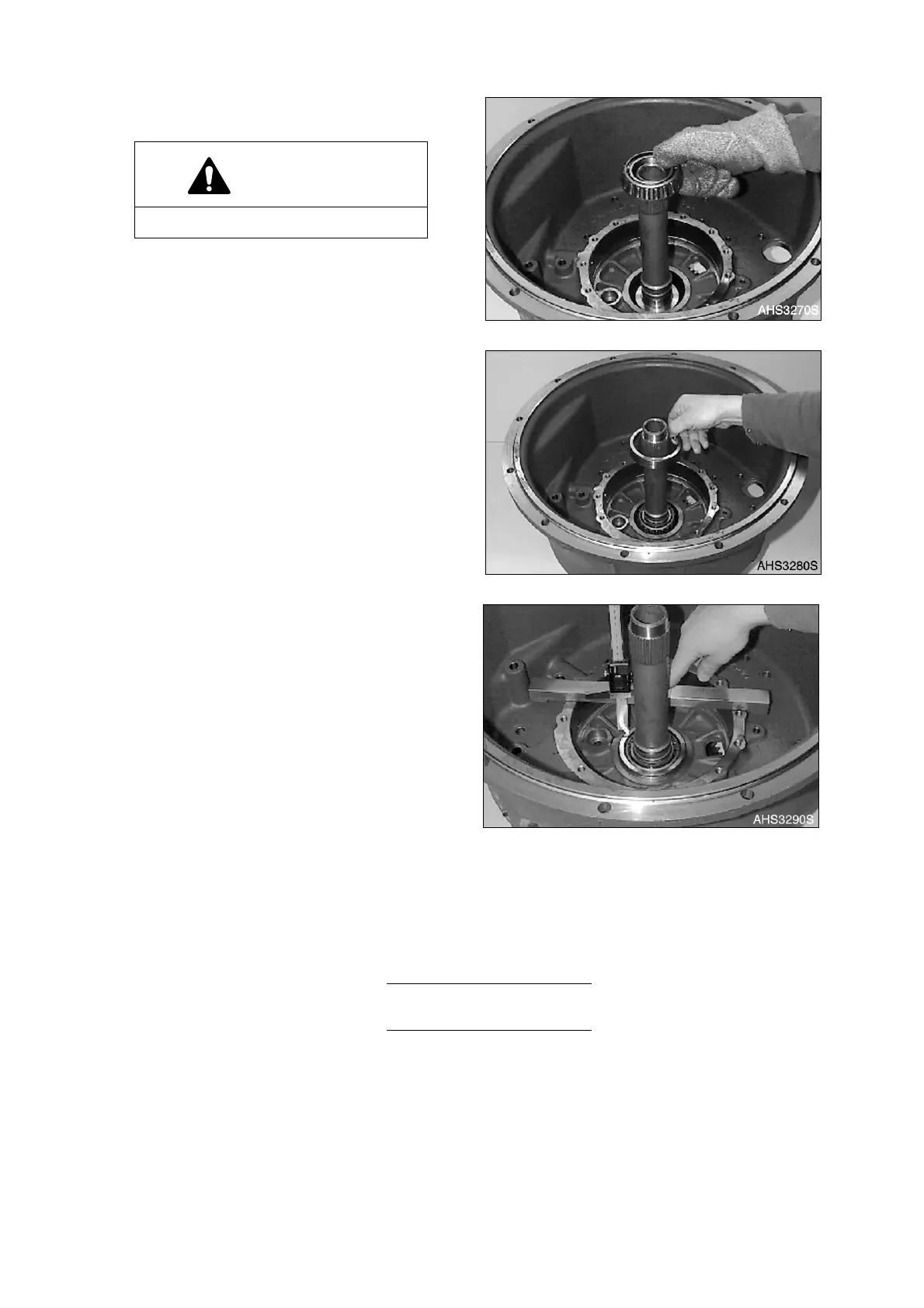

5. Heat inner bearing race and line it up until
contact is obtained.
6. Position outer bearing race against
shoulder.
7. Adjust Axial play of the Drive gear bearing
= 0.03 - 0.07 mm (0.0012 - 0.0028 in)
(Figure 381 - EXAMPLE L).
A. Measure Dimension I from the
mounting face to the outer bearing
race.
NOTE: Dimension I e.g. 59.60 mm
(2.3465 in).
B. Mount gasket (Arrow) and determine
Dimension II from the mounting face
to the locating face of the outer
bearing race.
NOTE:
Dimension II e.g. 58.50 mm
(2.3031 in).
EXAMPLE L:
CAUTION!
Use protective gloves.
Dimension I 59.60 mm (2.3465 in)
Dimension II - 58.50 mm (2.3031 in)
Difference = 1.10 mm (0.0433 in)
Axial Play (0.03 - 0.07) e.g. - 0.05 mm (0.0020 in)
Gives Shim (s) = 1.05 mm (0.0413 in)
Figure 379
Figure 380
Figure 381
