Transmission and Torque Converter
(ZF 4WG-310)
9. Squeeze snap ring out.
10. Disassemble end shim and plate pack K2.
11. Tilt plate carrier 90˚.
12. Loosen slotted nut.
13. Pull tapered roller bearing from plate
carrier.
14. Pull tapered roller bearing from plate
carrier.
CAUTION!
Slotted nut is secured with Loctite.
To prevent a damage of the thread,
heat the slotted nut before loosen it
(about 120˚C (248˚F)).

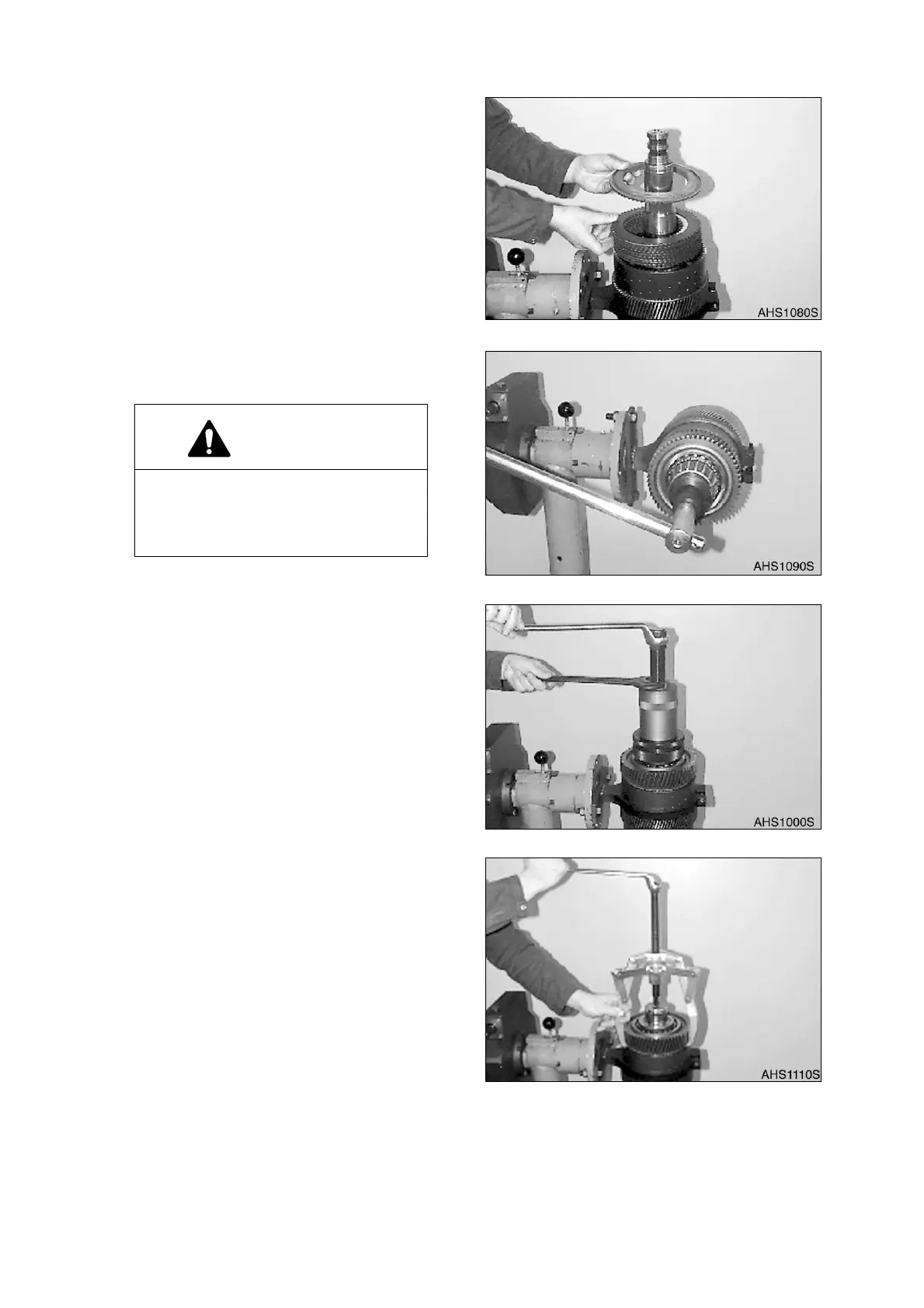

Figure 149
Figure 150
Figure 151
Figure 152
