S0607080K
Page 131
Transmission and Torque Converter
(ZF 4WG-310)

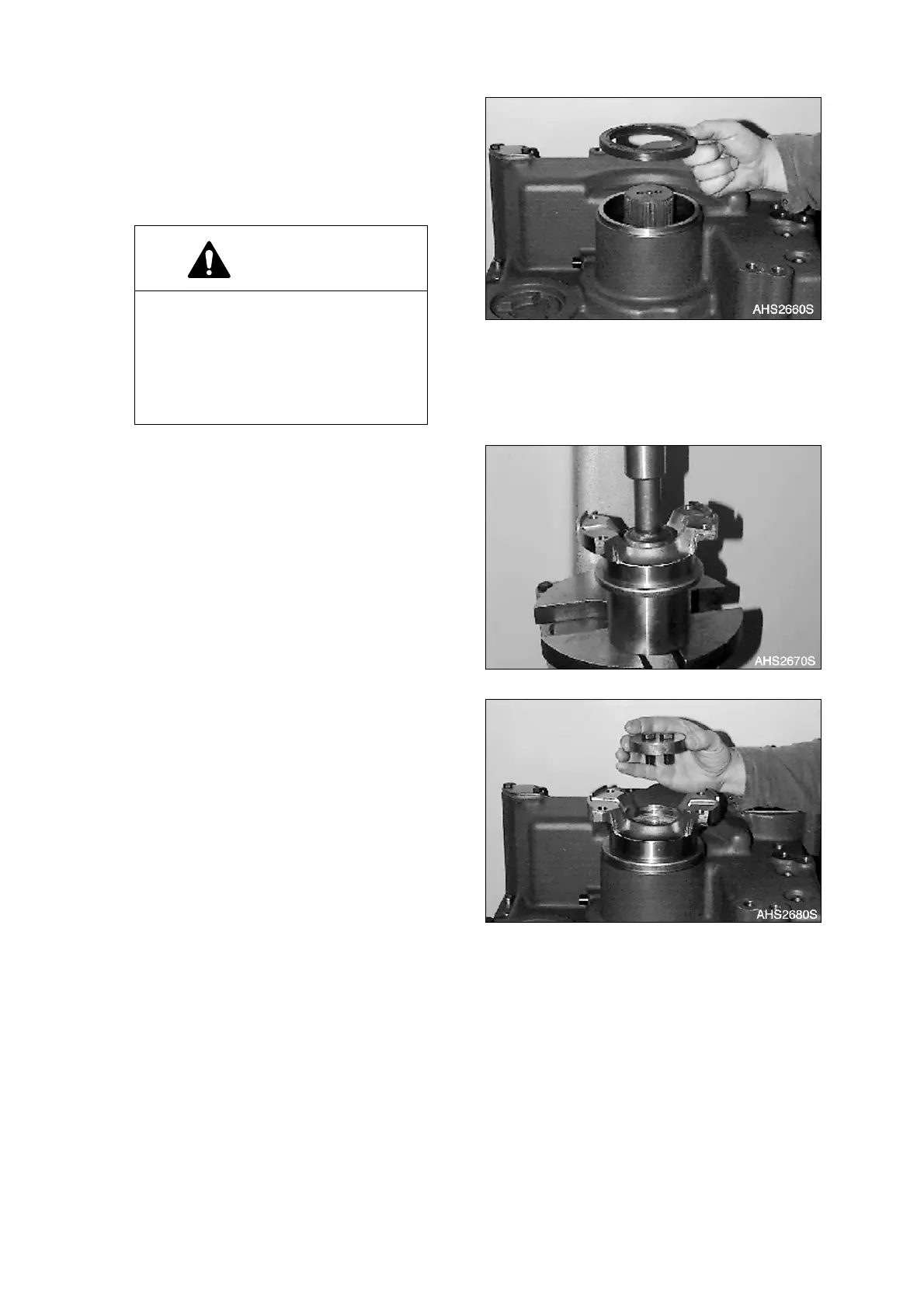

15. Install shaft seal, with the sealing lip facing
the oil chamber.
NOTE:
At application of the prescribed
driver (S), the exact installation
position is obtained. Grease
sealing lip.
16. Press screening plate against shoulder.
17. Line up output flange.
18. Wet contact face of the shim with sealing
compound Loctite #574 and fasten output
flange with hex head screws.
NOTE:
Torque limit (M10/8.8) 46 Nm
(34 ft lb).
CAUTION!
According to the version, different
shaft seals can have been applied.
Outer diameter rubber-coated – wet
with mineral spirits.
Outer diameter metallic - wet with
sealing compound (Loctite #574).
Figure 318
Figure 319
Figure 320
