Transmission and Torque Converter
(ZF 4WG-310)
19. Secure hex. head screws using lock plate.
20. Adjust bearing preload – Clutch K3/K4 =
0.00 - 0.15 mm (0.00 - 0.0059 in) (Figure
322 - Figure 324).
A. Insert inner bearing race into the
outer race.
Housing dimension: Press the inner
bearing race uniformly on, and
determine Dimension I from the
mounting face to the inner bearing
race.
NOTE: Dimension I e.g. 43.85 mm
(1.7264 in).
NOTE: Apply several measuring points
and determine the average value.
Cover dimension: Determine
Dimension II from the mounting face
to the con-tact / inner bearing race.
NOTE: Dimension II e.g. 42.15 mm
(1.6594 in).

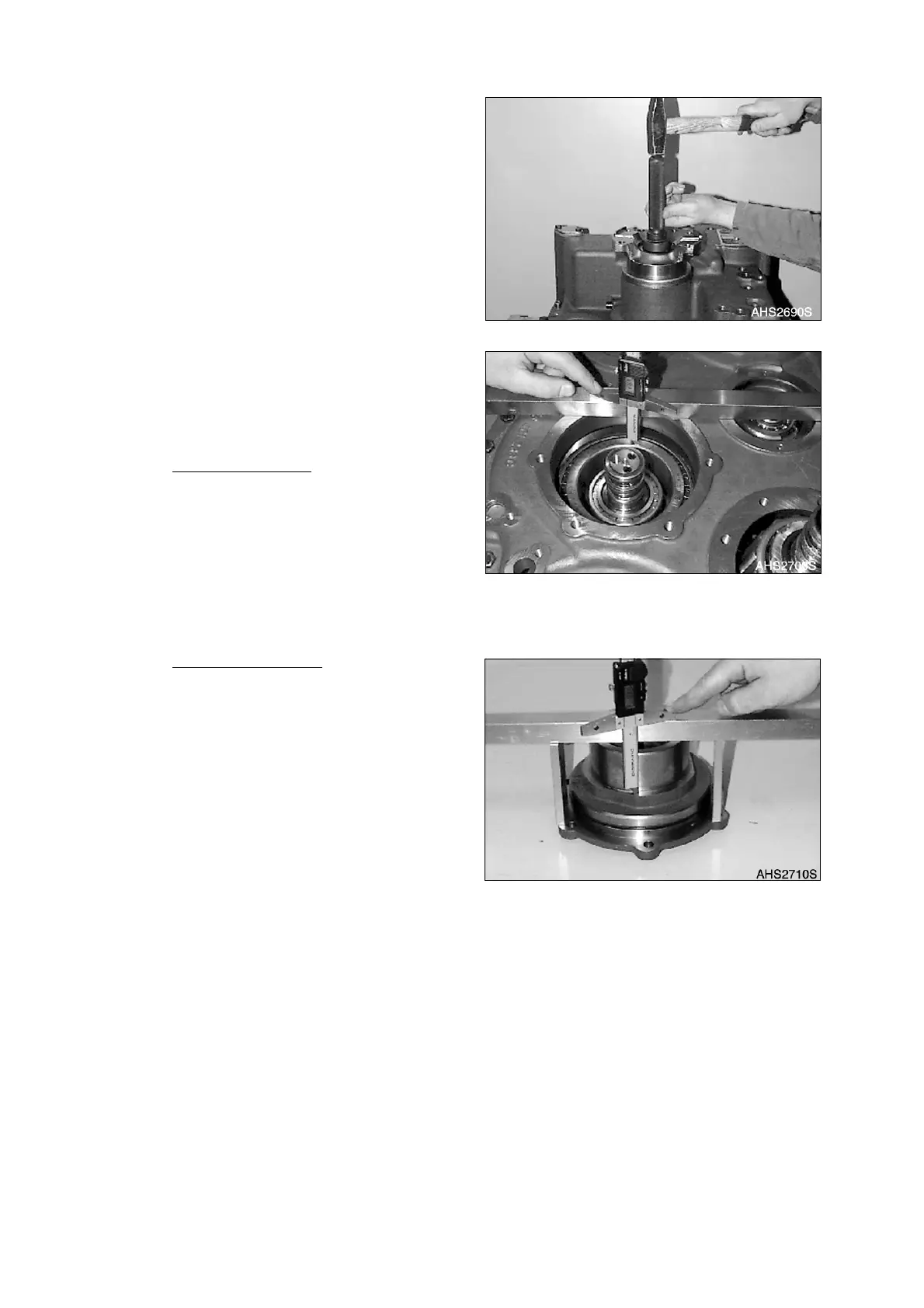

Figure 321
Figure 322
Figure 323
