Transmission and Torque Converter
(ZF 4WG-310)
16. Install output gear.
17. Insert second oil baffle and fasten both
plates using hex. head screws (mount
plain washer).
NOTE: Torque limit (M8/8.8) 2.35 kg•m
(16.96 ft lb).
NOTE: Secure hex. head screws with
Loctite #262.
18. Cool down output shaft and install it until
contact is obtained.
NOTE: Pay attention to installation
position, see Figure 306.

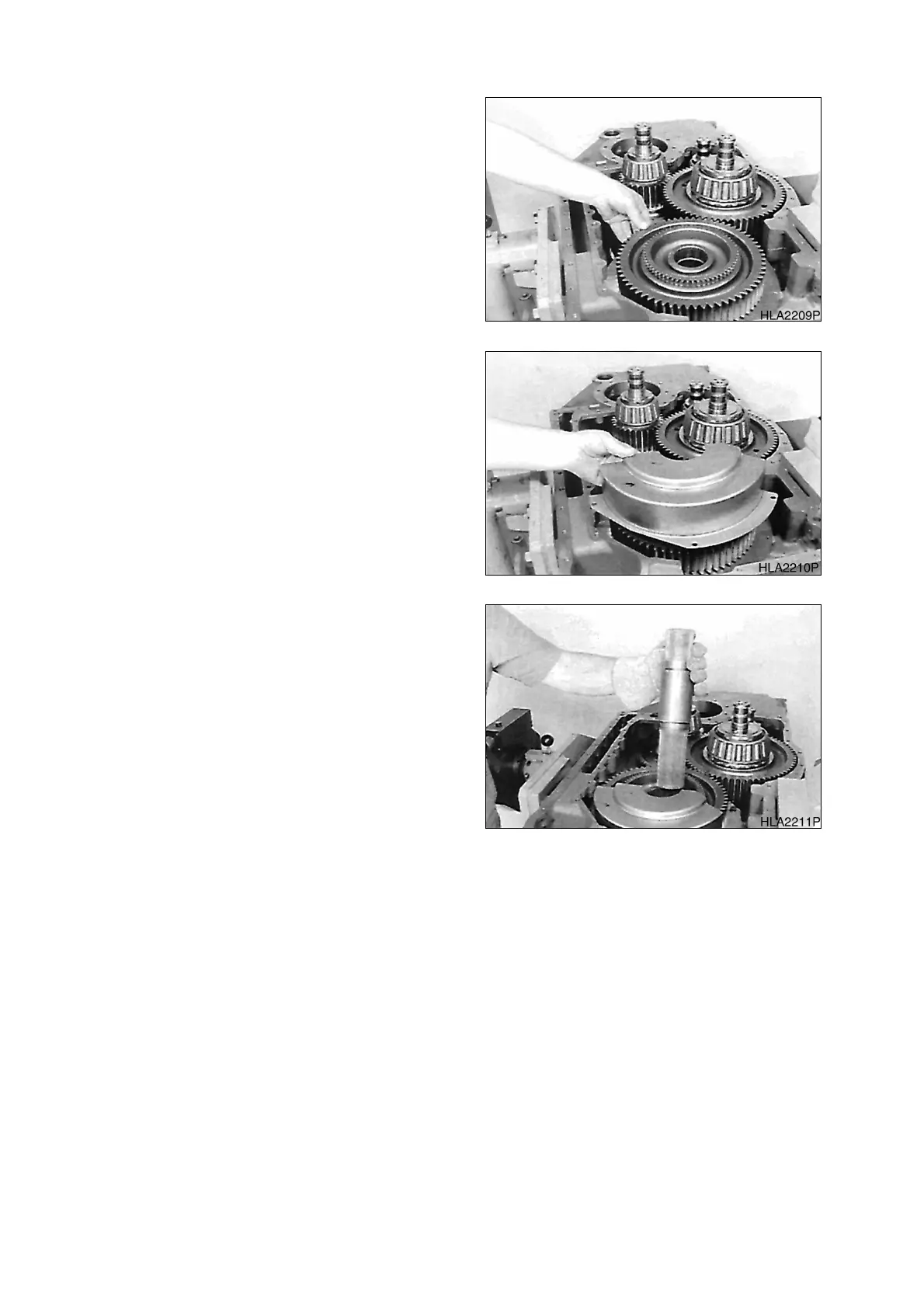

Figure 304
Figure 305
Figure 306
