S0607080K
Page 118
Transmission and Torque Converter
(ZF 4WG-310)

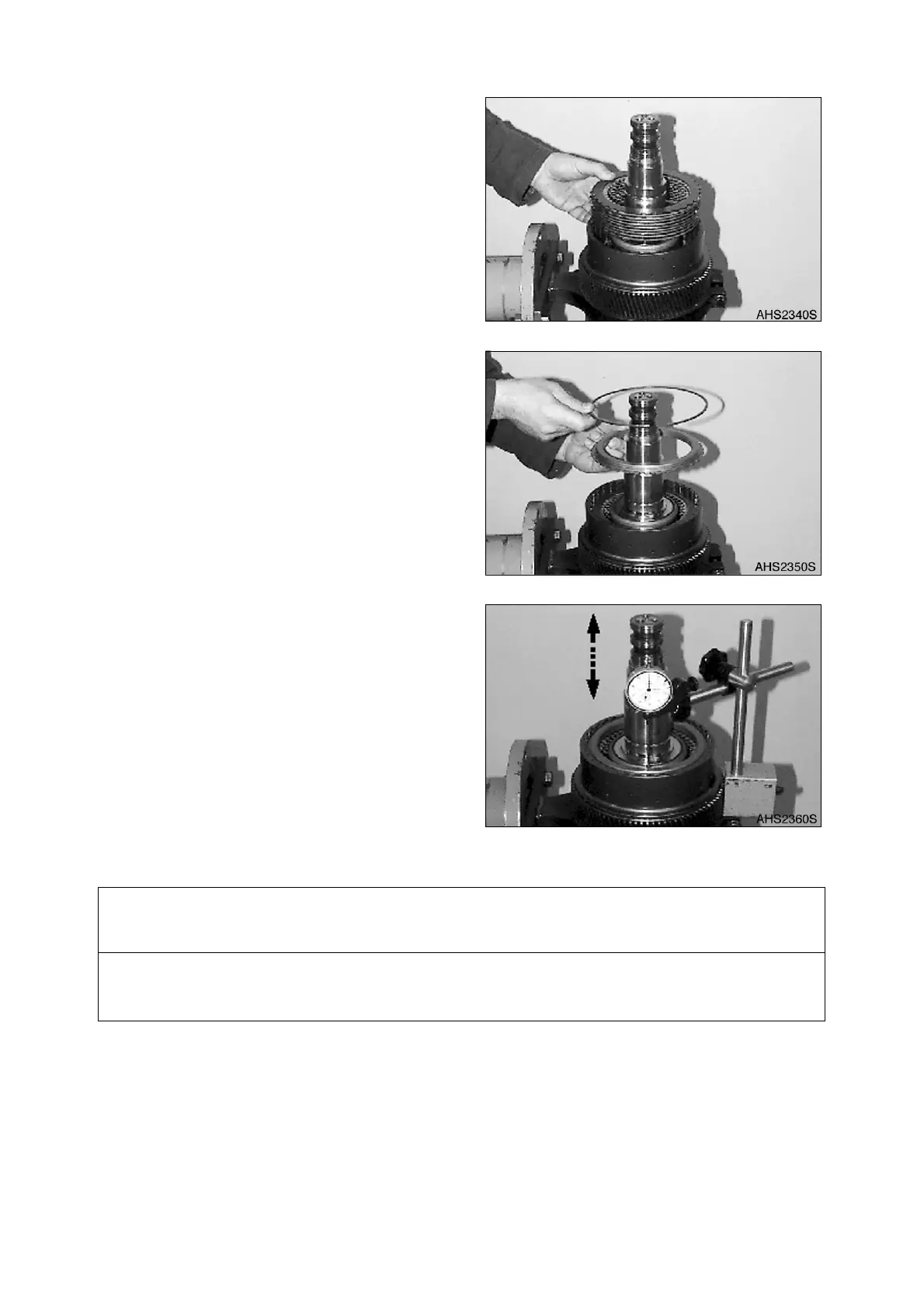

1. Check plate clearance K1 = 2.6 - 2.8 mm
(0.1024 - 0.1102 in) (Figure 274 - Figure
276).
NOTE:
To ensure a faultless measuring
result, install the plates for the
present without oil.
A. Install plate pack according to Figure
273.
B. Introduce the end shim and secure it
using snap ring.
C. Press the end shim on with about
100 N (10 kg) and set the dial
indicator to "Zero."
D. Now, press the end shim against the
snap ring (upward), and read the
plate clearance on the dial indicator.
E. After the performed adjustment of the
plate clearance, disassemble the
plate pack, oil plates according to ZF-
List of lubricants TE-ML 03 and
install them again.
IMPORTANT
In case of deviations from the required plate clearance = 2.6 - 2.8 mm (0.1024 - 0.1102 in), correct
with corresponding inner plate Item 6 (optional 2.5 - 3.5 mm (0.0984 - 0.1378 in)) or and snap ring
Item 7 (optional).
Figure 274
Figure 275
Figure 276
