S0602170K
Page 98
Axle (ZF AP 420R)

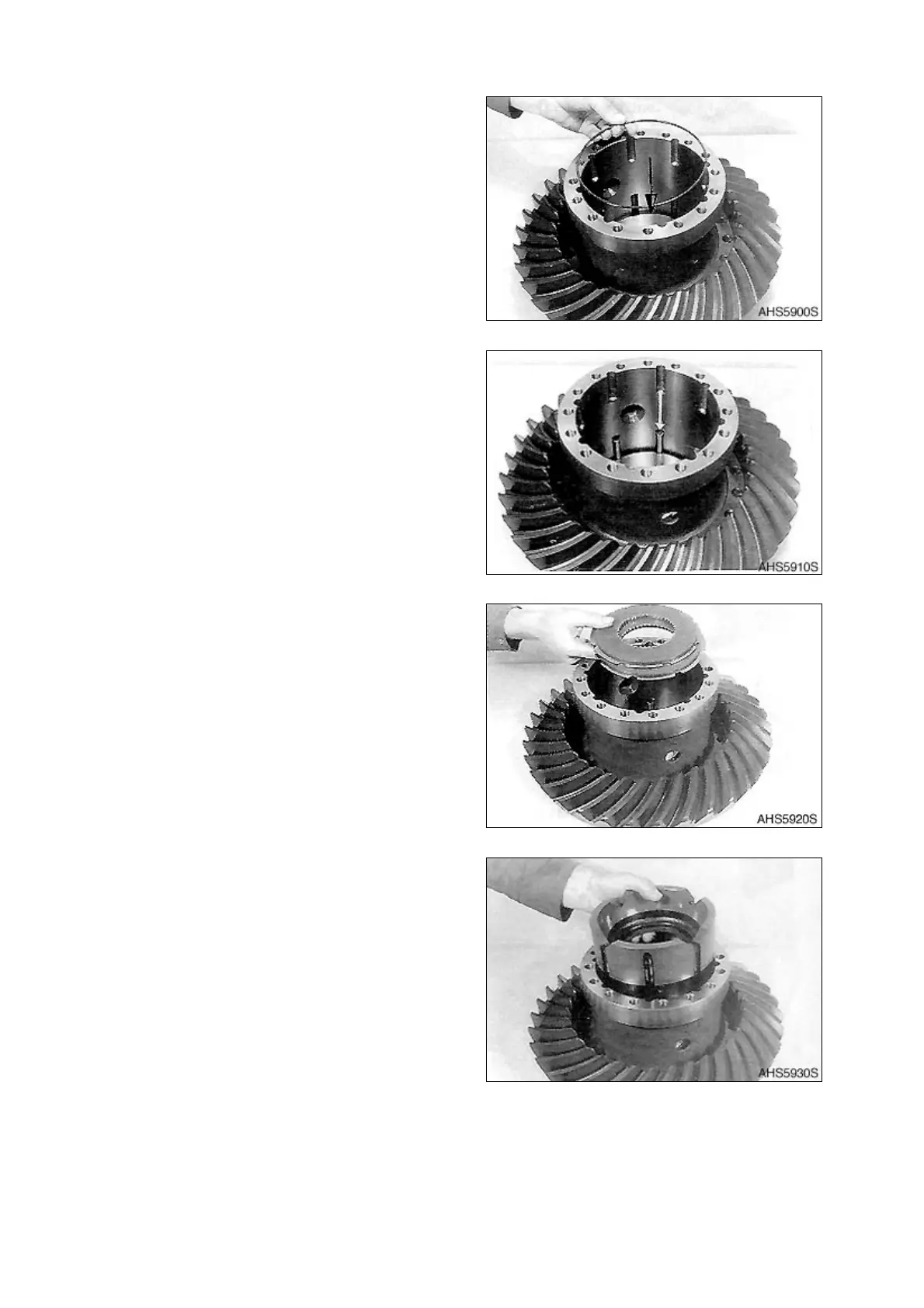

6. Lay snap ring into the ring groove, see
Figure 216.
7. Insert drive pin, see Figure 217.
8. Assemble alternating outer and inner
plates, starting with one outer plate.
NOTE:
For number and installation
position of outer and inner
plates, see corresponding List
of Spare Parts (according to the
Version). The total height
(thickness) of the plate pack
must be equal on both
differential sides. Plate
thickness of outer plates may
be different.
9. Replace pressure ring.
Figure 216
Figure 217
Figure 218
Figure 219
