Axle (ZF AP 420R)
10. Insert side gear and assemble inner plates
at the same time.
11. Insert the differential spider assembly.
12. Install second side gear.
13. Install second pressure ring and insert all
drive pins.
NOTE:
Pay attention to the radial
installation position of the
pressure ring.

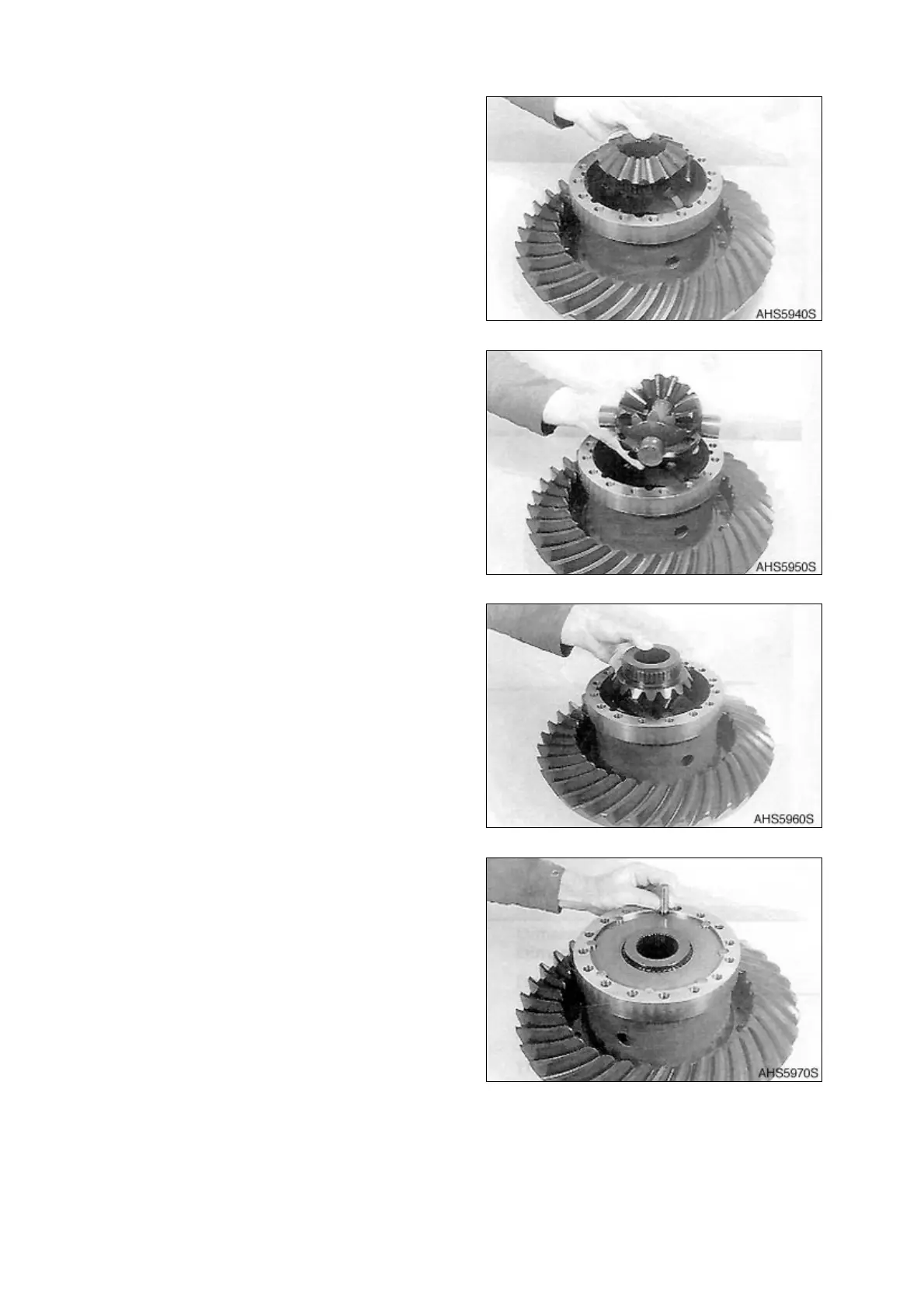

Figure 220
Figure 221
Figure 222
Figure 223
