Transmission and Torque Converter
(ZF 4WG-310)
8. Oil O-rings and piston bearing surfaces.
9. Insert K1-piston uniformly against
shoulder.
NOTE:
Pay attention to the installation
position of the piston, see
Figure 255.
10. Introduce intermediate washer and
compression spring.
11. Lay guide ring, with the chamfer (Figure
257) facing upward, over the compression
spring and line up the snap ring.
12. Lift the plate carrier out of the clamping
ring. Preload compression spring using
Special device (S) and squeeze snap ring
into the annular groove of the plate carrier
(Arrow) – seeFigure 258.
13. Install purge valve, spool and compression
spring on the opposite side (KV-clutch)
accordingly.
14. Now, lift the plate carrier, with the KV-side
facing downward, into the clamping ring
(S) and secure it. Tilt plate carrier 180˚.

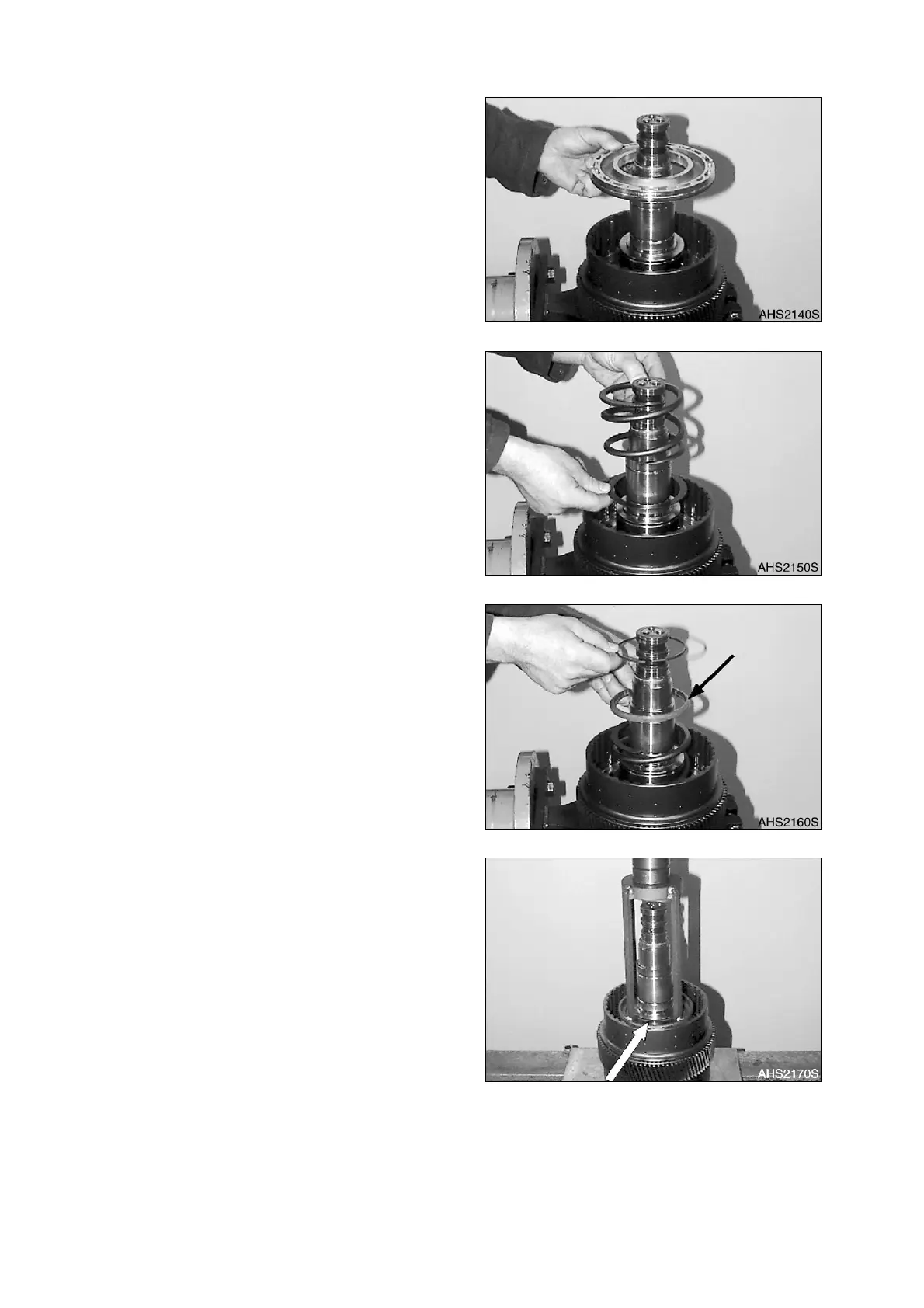

Figure 255
Figure 256
Figure 257
Figure 258
