S0607080K
Page 113
Transmission and Torque Converter
(ZF 4WG-310)

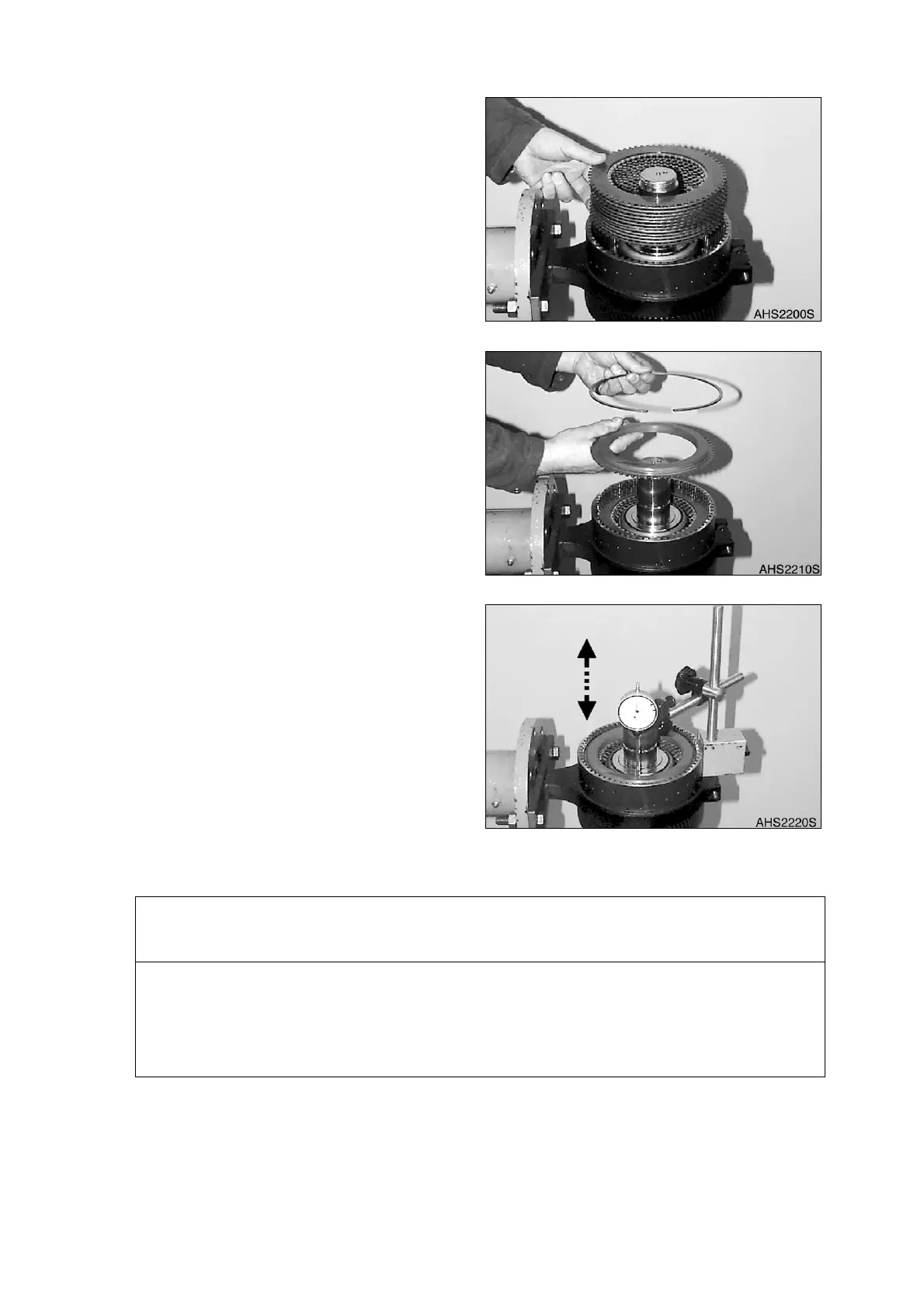

1. Check plate clearance KV = 2.8 - 3.0 mm
(0.1102 - 0.1181 in) (Figure 260 - Figure
262).
NOTE:
To ensure a faultless measuring
result, install the plates for the
present without oil.
A. Install the plate pack according to
Figure 259.
B. Introduce the end shim and secure it
using snap ring.
C. Press the end shim on with about
100 N (10 kg) and set the dial
indicator to "Zero."
D. Now, press the end shim against the
snap ring (upward), and read the
plate clearance on the dial indicator.
IMPORTANT
In case of deviations from the required plate clearance = 2.8 - 3.0 mm (0.1102 - 0.1181 in),
correct with corresponding inner plate Item 6 (optional s = 2.5 - 4.0 (0.0984 - 0.1575 in)) or
and snap ring (optional).
After the performed adjustment of the plate clearance disassemble the plate pack, oil plates
according to ZF-List of lubricants TE-ML 03 and install them again.
Figure 260
Figure 261
Figure 262
