S0607080K
Page 114
Transmission and Torque Converter
(ZF 4WG-310)

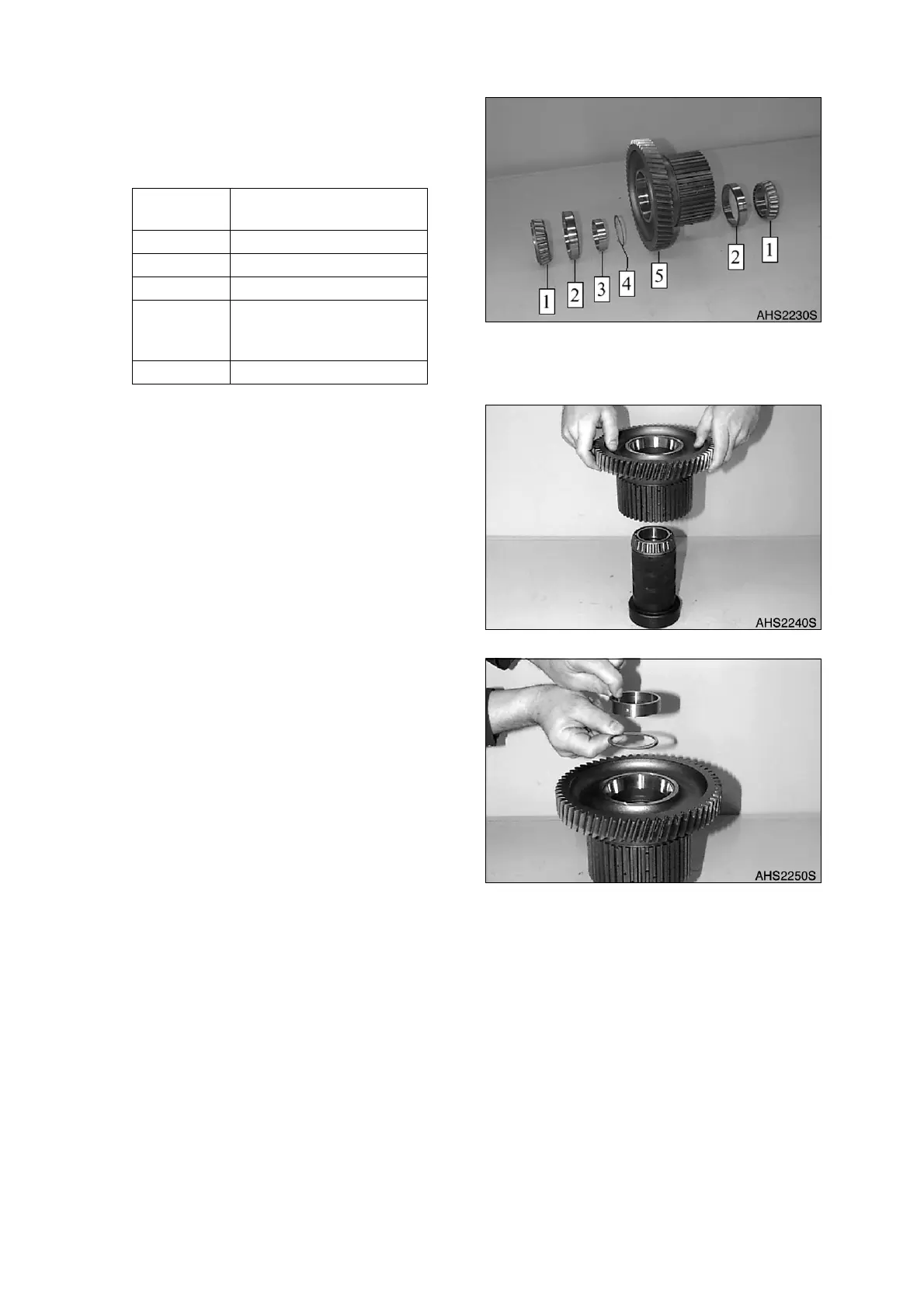

2. Pre-assemble and install Spur gear KV
(Figure 263 - Figure 271):
A. Figure 263, shows the components
of spur gear KV.
B. Check Axial play – Spur gear bearing
0.0 - 0.05 mm (0.0 - 0.0020 in).
C. Install both outer bearing races (2)
and place spur gear over the inner
bearing race.
D. Introduce shim(s) 4 and ring 3.
Reference
Number
Description
1 Inner Bearing Race
2 Outer Bearing Race
3 Ring
4 Shim(s) Optional,
Empirical Value s = 1.70
mm (0.0669 in)
5 Spur Gear
Figure 263
Figure 264
Figure 265
