Steering and Brake Pump (Denison T67DB Series)

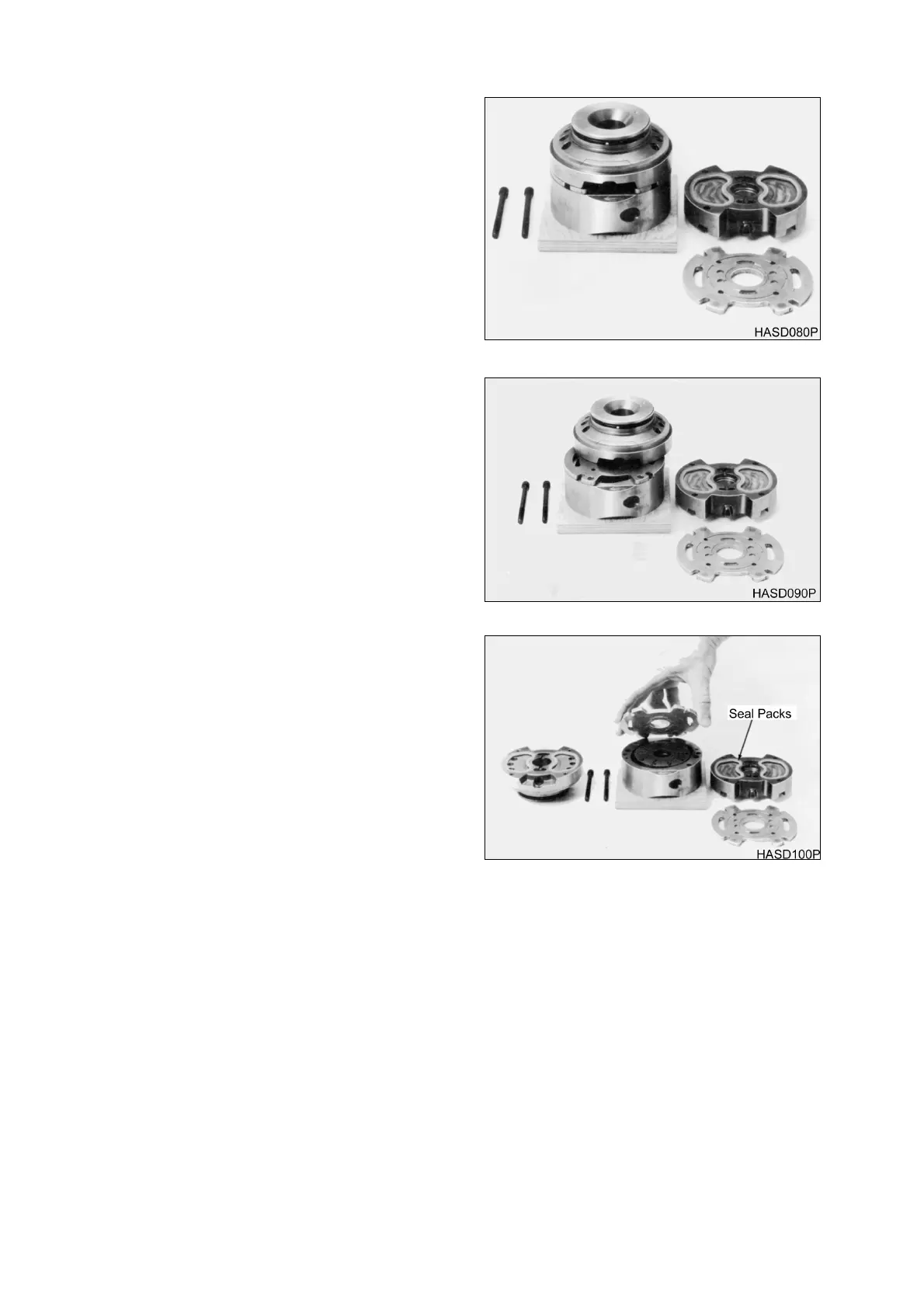

5. If a small flat piece of wood is available,
place it over ring and rotor and reverse
cartridge to have outlet support plate
pointing up. Use wood to hold ring, rotor
and vanes.
6. Slide outlet support plate and seal packs
off cartridge, do not allow flex side plate to
slide with support plate.
7. Move flex side plate off center just enough
to lift up and away without sliding.
Figure 10
Figure 11
Figure 12
