Axle (ZF AP 420R)
5. Drive the drive pinion out of the axle
carrier.
NOTE:
Pay attention to the released
tapered roller bearing. If
necessary drive the two outer
bearing races out of the axle
carrier bores.
6. Pull spacer from the drive pinion end.
7. Press tapered roller bearing from drive
pinion using grab sleeved (See Arrow).
NOTE:
See “Special Tools” on page 15.

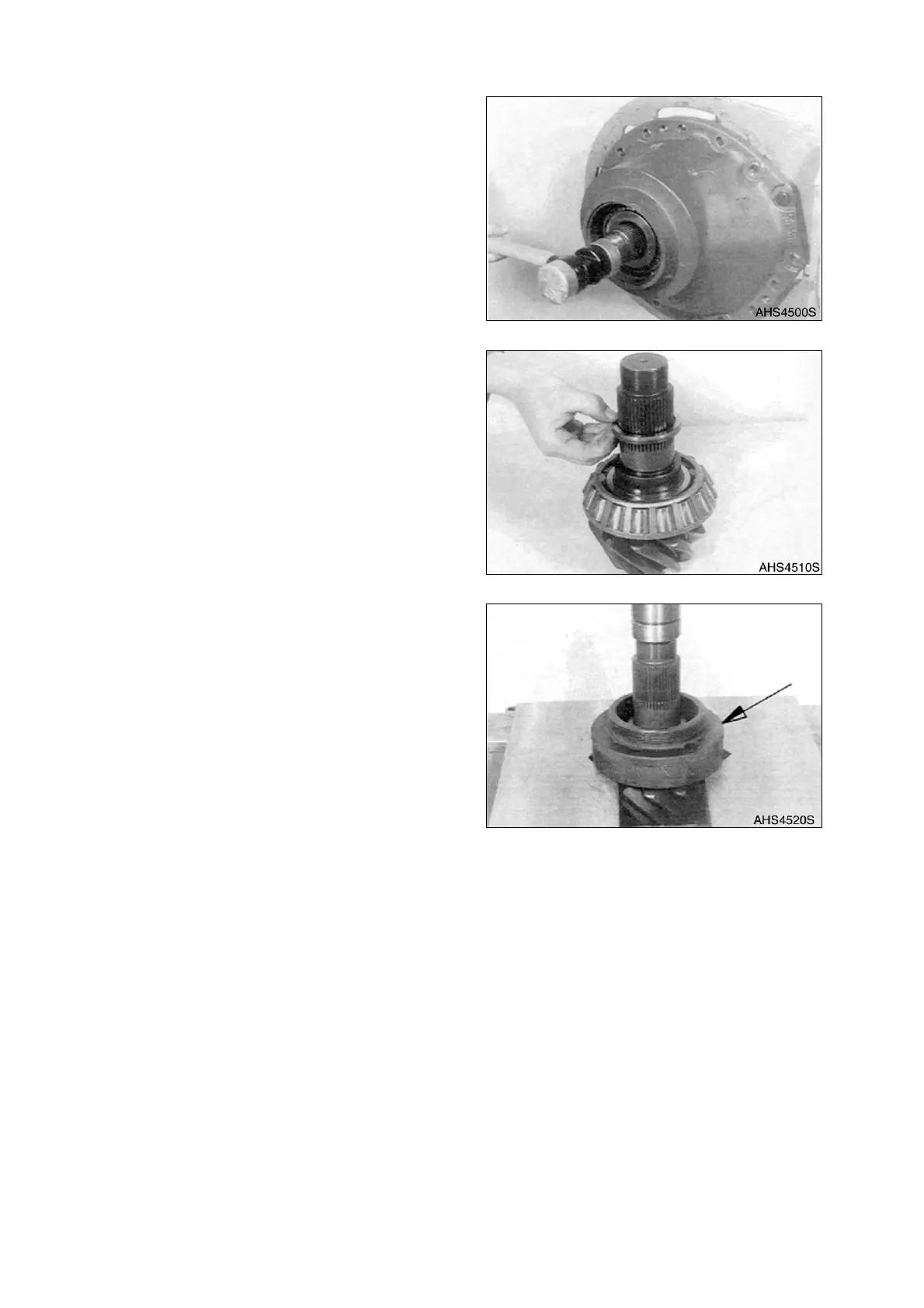

Figure 79
Figure 80
Figure 81
