Axle (ZF AP 420R)
10. Separate housing cover from differential
case and pull it out of the axle carrier.
11. Lift differential carrier out of the axle
carrier.
12. Take all components of the multidisk self-
locking differential out of the differential
case.
13. Clamp the differential housing.
14. Remove locking screws and separate the
crown wheel from the differential case.

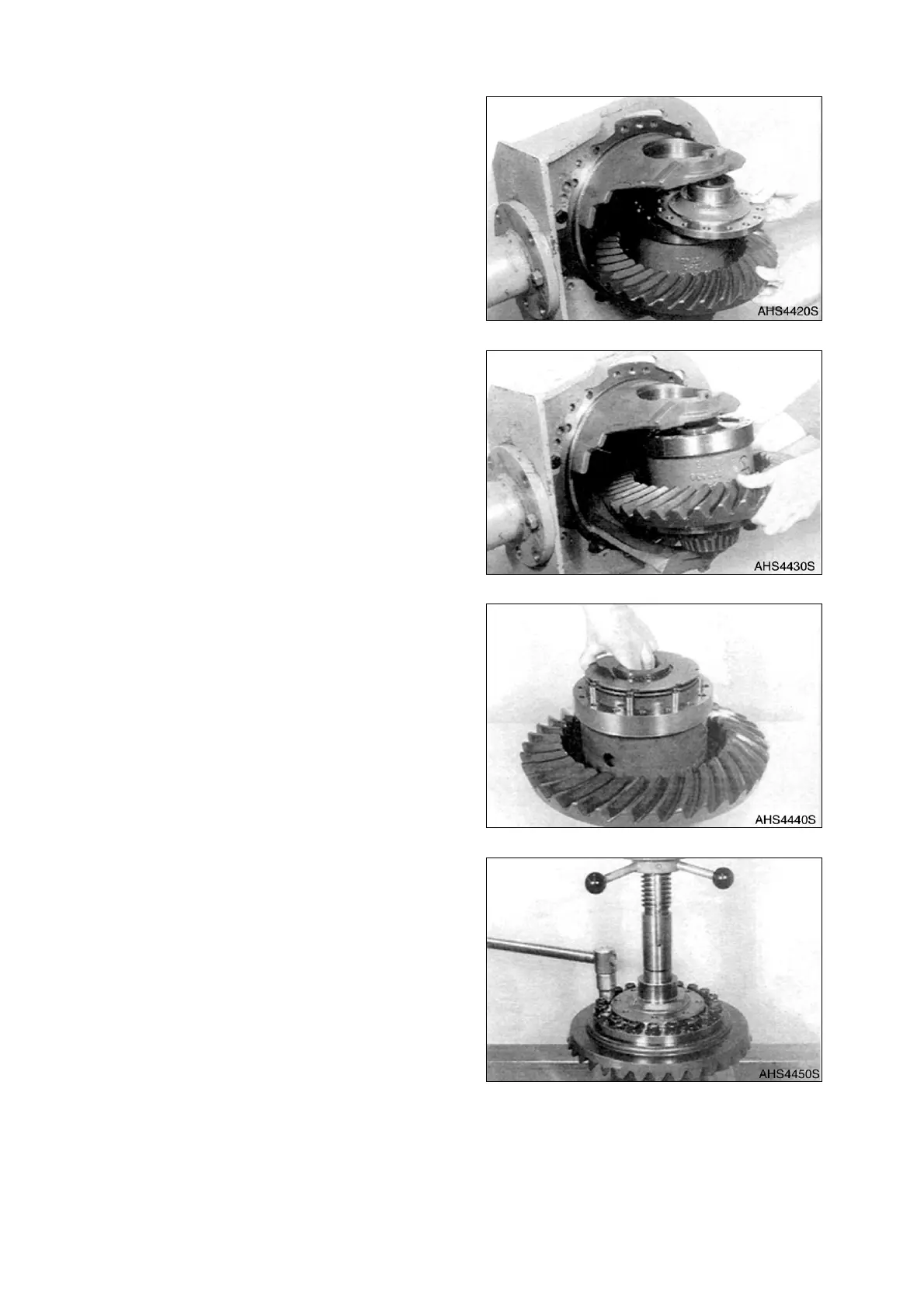

Figure 71
Figure 72
Figure 73
Figure 74
