S0602170K
Page 53
Axle (ZF AP 420R)

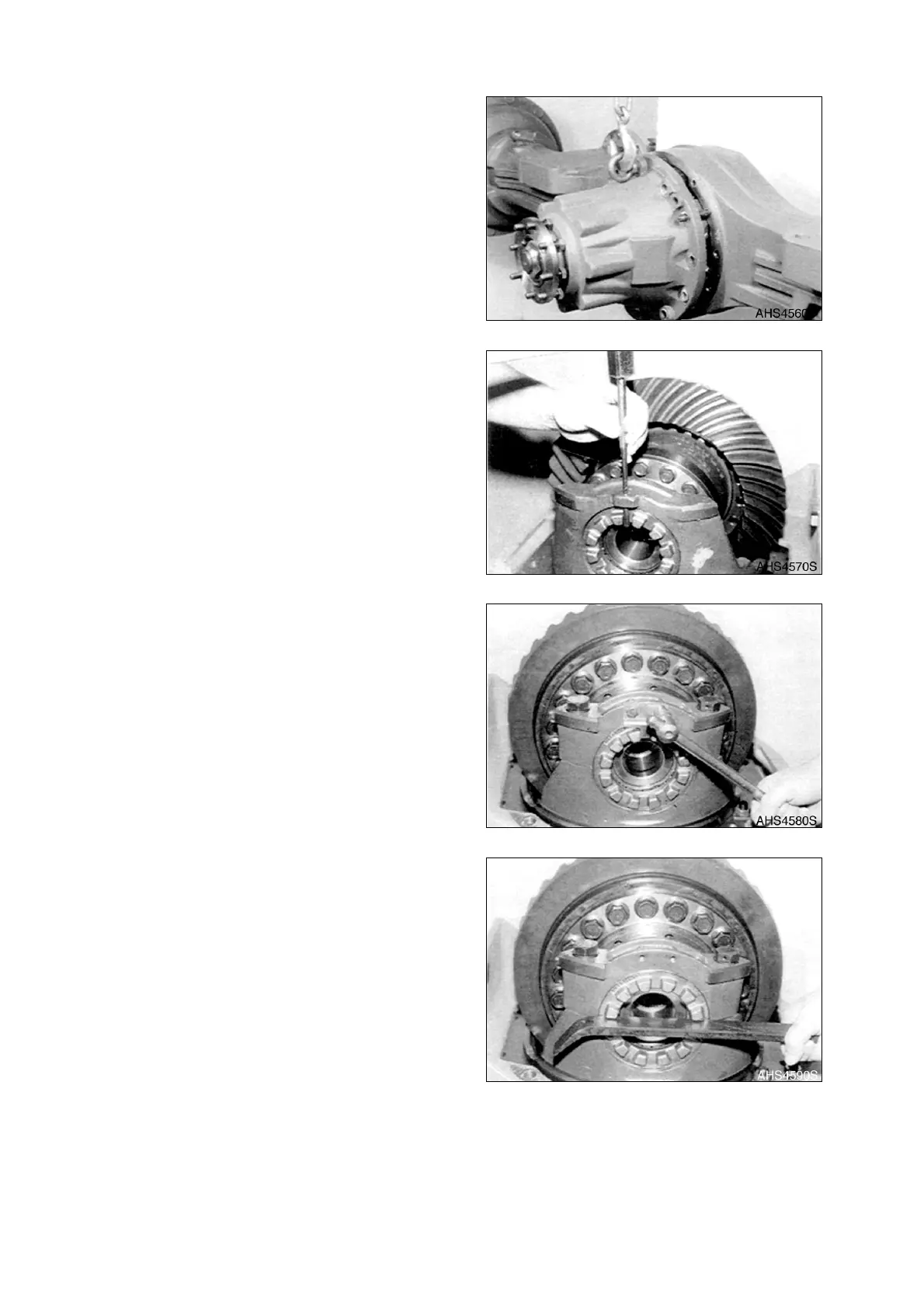

5. Remove hex. head screws and separate
the differential carrier from the axle
housing.
NOTE:
See “Special Tools” on page 15.
6. Fasten differential carrier in the assembly
jig.
7. Drive out the roll pin.
NOTE:
See “Special Tools” on page 15.
8. Remove lock wire and lock plate.
9. Loosen and remove the two adjusting
nuts.
NOTE:
See “Special Tools” on page 15.
Figure 85
Figure 86
Figure 87
Figure 88
