S0602170K
Page 59
Axle (ZF AP 420R)

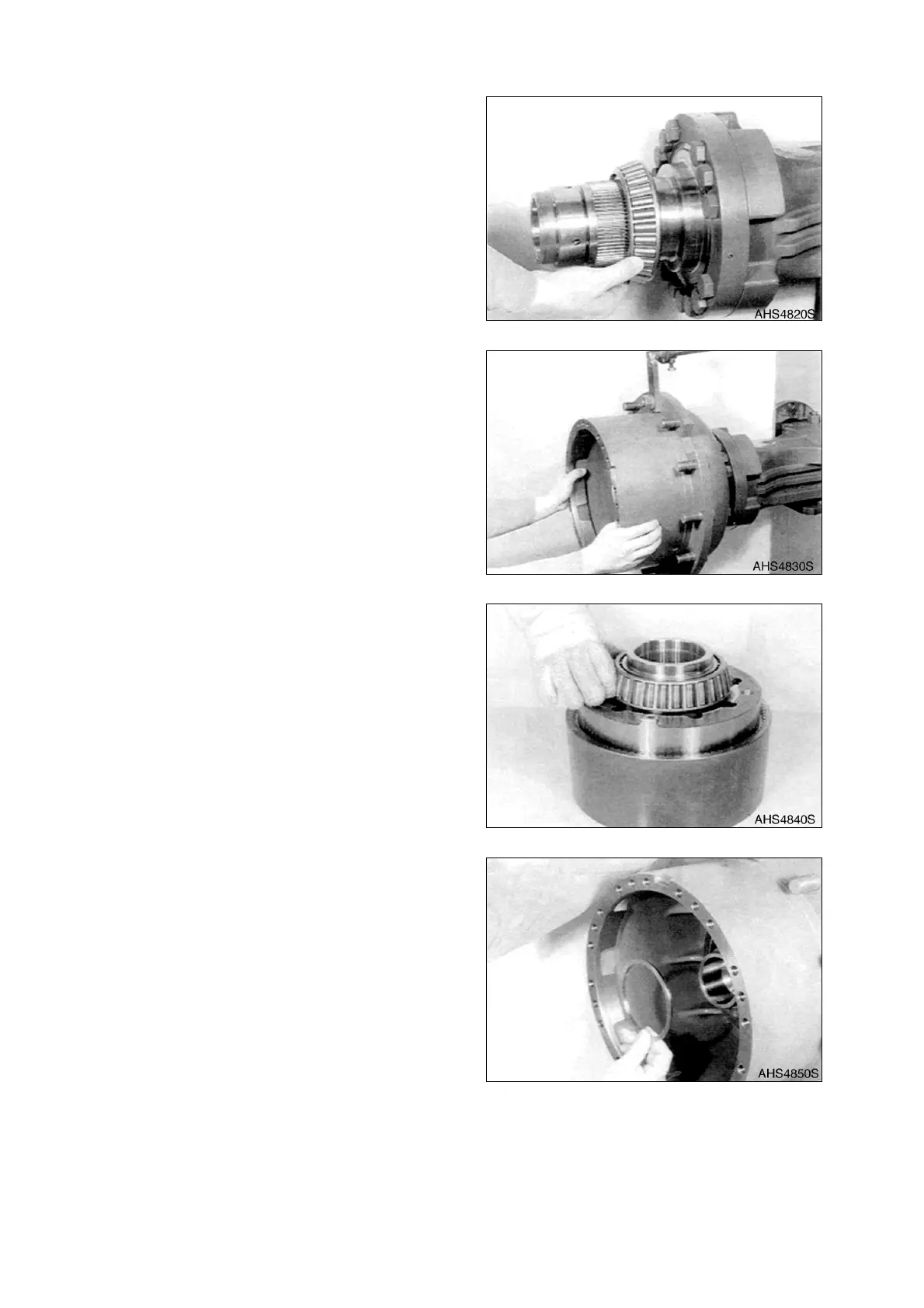

4. Guide the inner bearing race over the end
of the hub carrier until contact is obtained.
5. Guide hub over the end of the hub carrier.
6. Heat inner bearing race and place it firmly
against shoulder.
7. Assemble spacer s = 5.4 mm (0.2126 in)
(empirical value).
NOTE:
If hub carriers hub and internal
gear carrier are not replaced we
recommend to install the
existing spacer again. Decisive,
however, is the rolling
resistance of the wheel bearing,
See Figure 112.
Figure 106
Figure 107
Figure 108
Figure 109
