Daewoo Mega 500-V - Page 171

S0602170K
Page 66
Axle (ZF AP 420R)

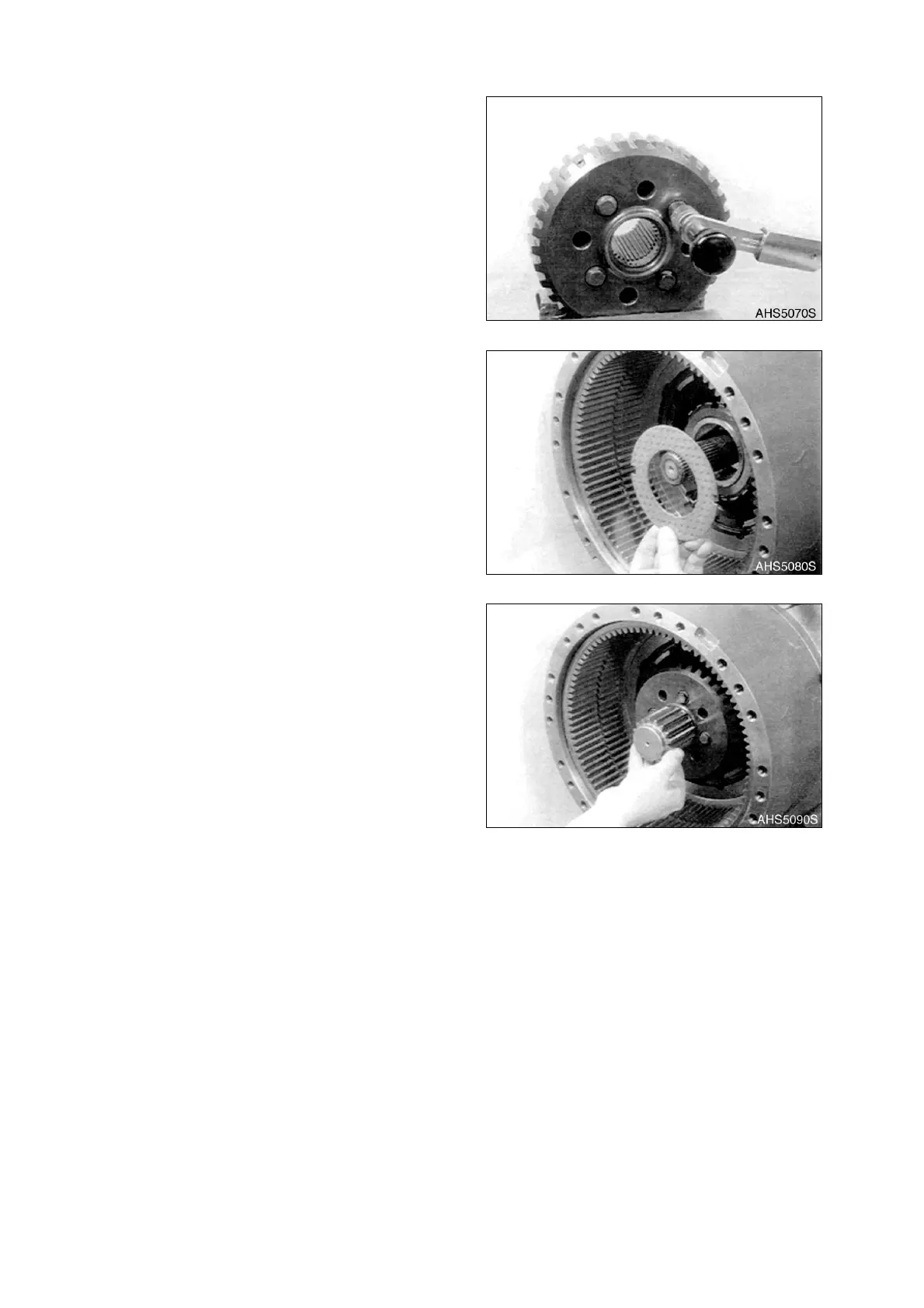

9. Attach oil seal to inner plate carrier.
NOTE: Torque limit:
AP 407 - 420 = 50 Nm (37 ft lb)
10. Install thrust washer.
11. Guide the inner plate carriers (along with
the sun gear) on the stub shaft splines.
Figure 131
Figure 132
Figure 133
