S0602170K
Page 71
Axle (ZF AP 420R)
EXAMPLE
NOTE:
Remove thrust washer again and make it adhere with Loctite #270.

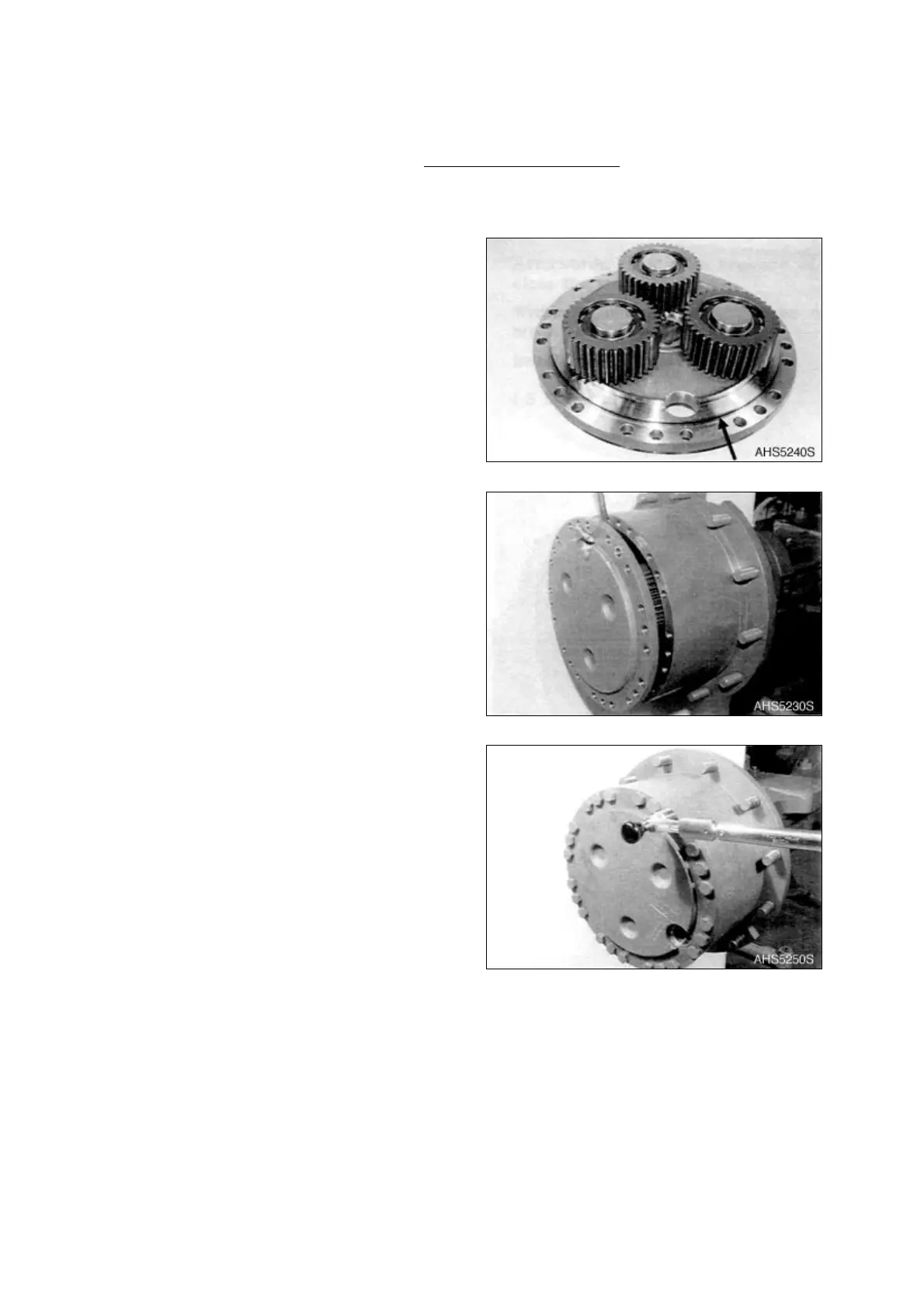

3. Insert new O-ring into the ring groove of
the planetary carrier (Arrow).
4. Assemble planetary carrier until contact is
obtained.
5. Tighten hex. head screws.
NOTE:
See “Torque Limits for Screws”
on page 6.
Dimension A 6.00 mm (0.2362 in)
Dimension B - 5.50 mm (0.2165 in)
Required end play of the sun-gear shaft = 0.50 mm (0.0197 in)
Figure 147
Figure 148
Figure 149
