Axle (ZF AP 420R)
A. Make the two thrust washers adhere
with grease in the housing cover.
NOTE: Mount the brass washer on top
with the lubricating groove
facing the side gear.
B. Fasten the housing cover using
locking screws.
NOTE: Pay attention to the installation
position see Figure 182. Only
use of the locking screws one
time. Do not reuse them.
NOTE: See “Torque Limits for Screws”
on page 6.
C. Heat the two inner bearing races and
place them against shoulder.
D. Install the two outer bearing races
and insert the differential assembly
into the housing.
E. Secure the differential using the
adjusting nuts.
NOTE: See “Special Tools” on page 15.

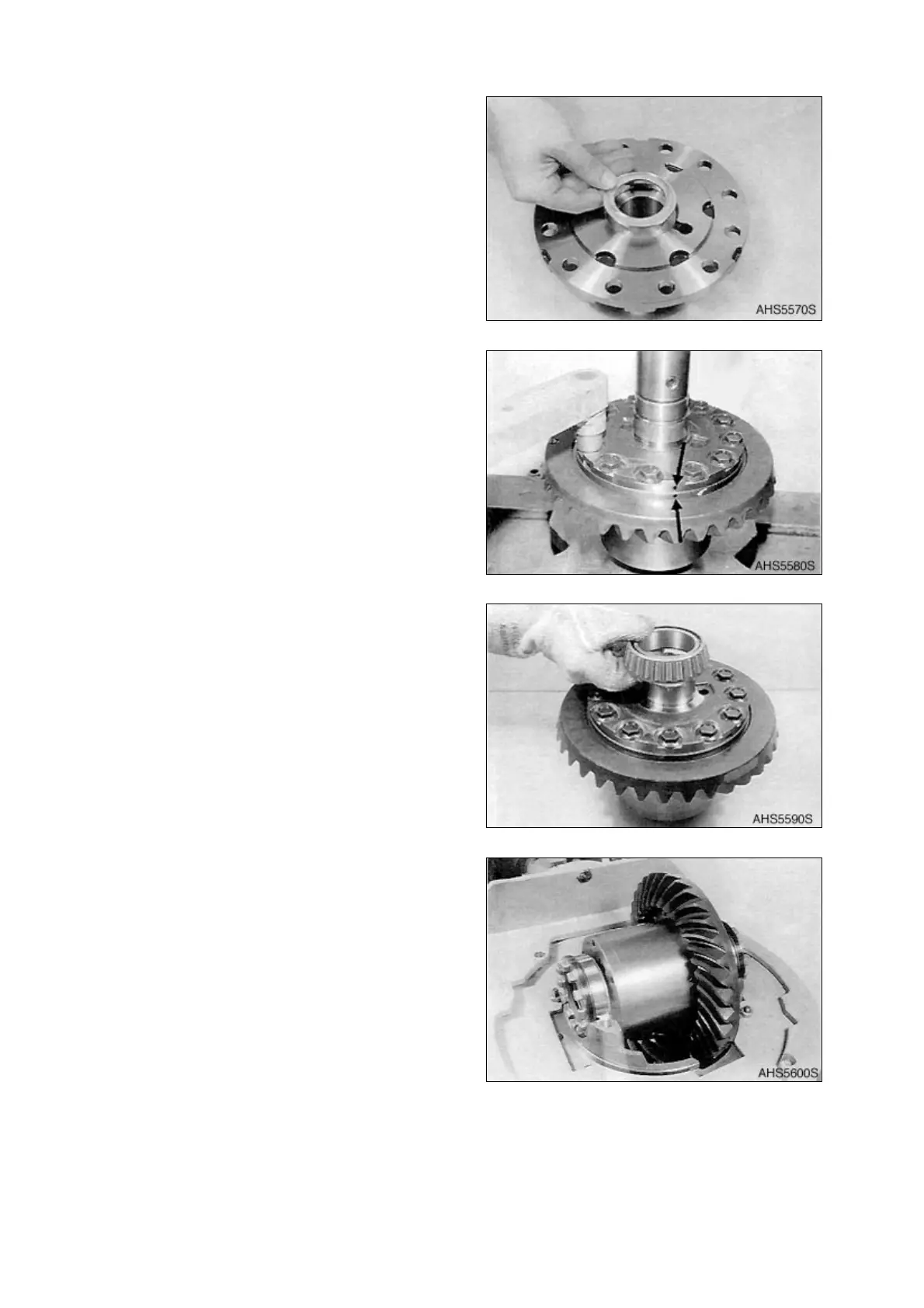

Figure 182
Figure 183
Figure 184
Figure 185
