S0602170K
Page 88
Axle (ZF AP 420R)

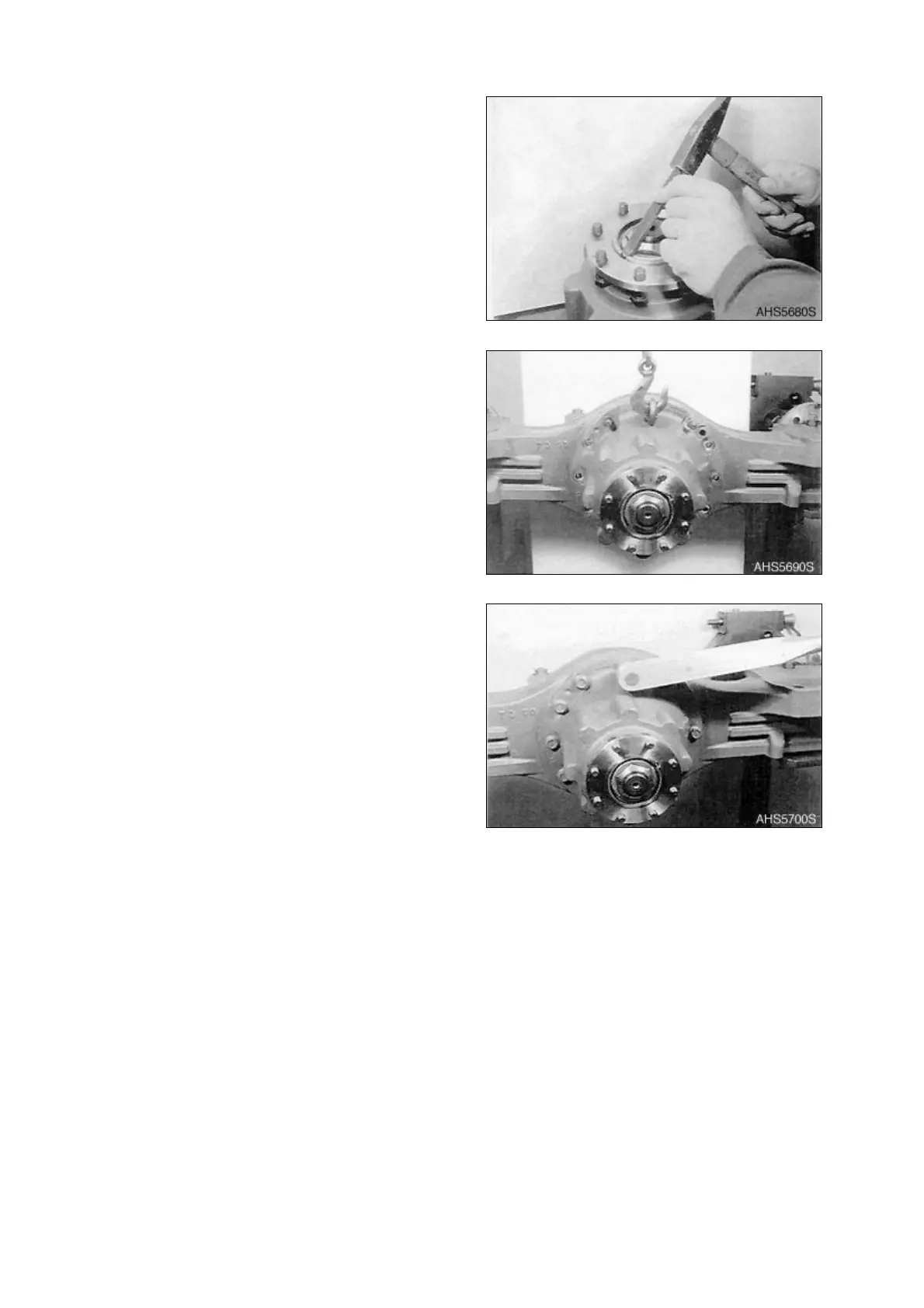

G. Tilt differential carrier.
H. Insert lock plate firmly against
shoulder and caulk it on the drive
flange, using a suitable tool.
I. Cover flange-mounted surface with
sealing compound Loctite #573.
J. Screw in two adjusting screws and
place the differential carrier against
the axle housing until contact is
obtained.
NOTE:
See “Special Tools” on page 15.
K. Fasten differential carrier on the axle
housing using hex. head screws.
NOTE:
Cover hex. head screws with
sealing compound Loctite #573.
NOTE:
See “Torque Limits for Screws”
on page 6.
NOTE:
Now, install the stub shafts
again and complete the final
drive.
NOTE:
Before the axle is put into
service, follow the “Lubrication
Instructions” on page 8.
Figure 193
Figure 194
Figure 195
