S0602170K
Page 91
Axle (ZF AP 420R)

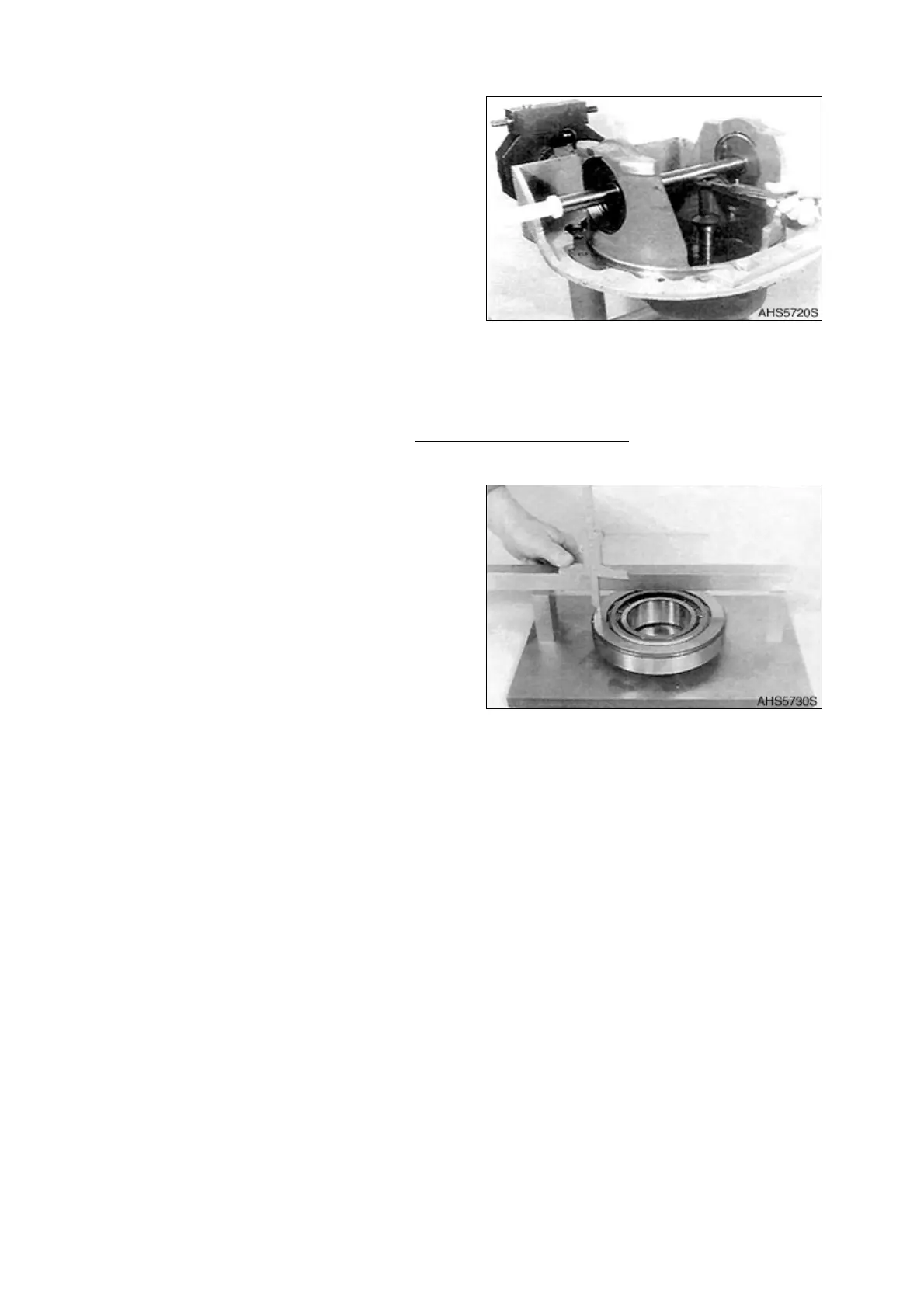

2. Determine gap (Dimension b) between
measuring pin and measuring shaft with
feeler gauge.
• Dimension b e.g. 0.70 mm (0.0276
in).
EXAMPLE I
3. Measure bearing width.
• Bearing width e.g. 42.45 mm (1.6713
in).
Dimension a (=measuring pin) 226.00 mm (8.8976 in)
Dimension b + 0.70 mm (0.0276 in)
Dimension c (1/2 ∅ measuring shaft) + 15.00 mm (0.5906 in)
Gives Dimension "X" = 241.70 mm (9.5157 in)
Figure 198
Figure 199
