Daewoo Mega 500-V - Page 212

S0602170K
Page 107
Axle (ZF AP 420R)

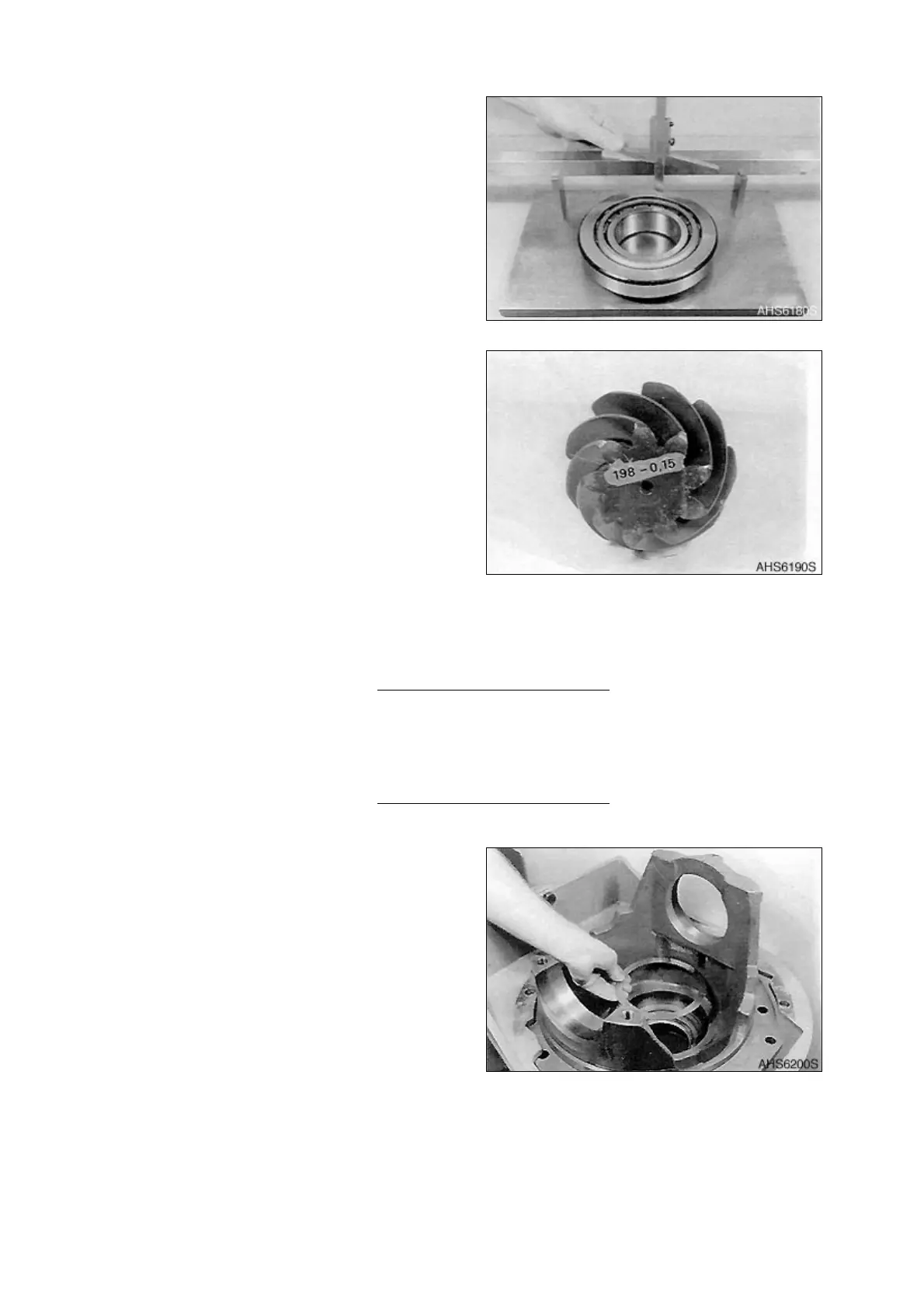

3. Measure bearing width.
• Bearing width e.g. 42.45 mm (1.6713
in).
4. Read pinion dimension.
• Pinion dimension e.g. 197.85 mm
(7.7894 in).
EXAMPLE II
EXAMPLE III
5. Lay shim (according to the Example s =
1.20 mm (0.0472 in)) into the housing
bore.
Bearing width 42.45 mm (1.6713 in)
Pinion dimension + 197.85 mm (7.7894 in)
Gives Dimension "X" 1 = 240.30 mm (9.4606 in)
Dimension "X" 241.50 mm (9.5079 in)
Dimension "X" 1 - 240.30 mm (9.4606 in)
Difference = Shim thickness s = 1.20 mm (0.0472 in)
Figure 245
Figure 246
Figure 247
