Axle (ZF AP 420R)
8. Check rolling resistance.
NOTE:
If the required rolling resistance
is not obtained correct again
with a corresponding spacer.
9. Remove drive flange and install shaft seal.
NOTE:
Pay attention to the contact.
NOTE:
If the outer diameter of the shaft
seal is rubber-coated,
wet the sealing face with
mineral spirits. Otherwise use
the sealing compound Loctite
#586.
NOTE:
Fill the cavity between sealing
lip and dust lip with grease.
NOTE:
See “Special Tools” on page 15.
10. Replace drive flange.
11. Assemble washer and tighten slotted nut,
resp. hex. nut (according to the Version)
finally
NOTE:
Torque limit:
DK/CK 700 Nm (515 ft lb)
RK 1,100 Nm (810 ft lb)
HK/LK 1,200 Nm (885 ft lb)
NOTE:
The securing of the slotted nut,
resp. hex. nut (according to the
Version) is carried out after the
contact pattern is taken.
NOTE:
See “Special Tools” on page 15.

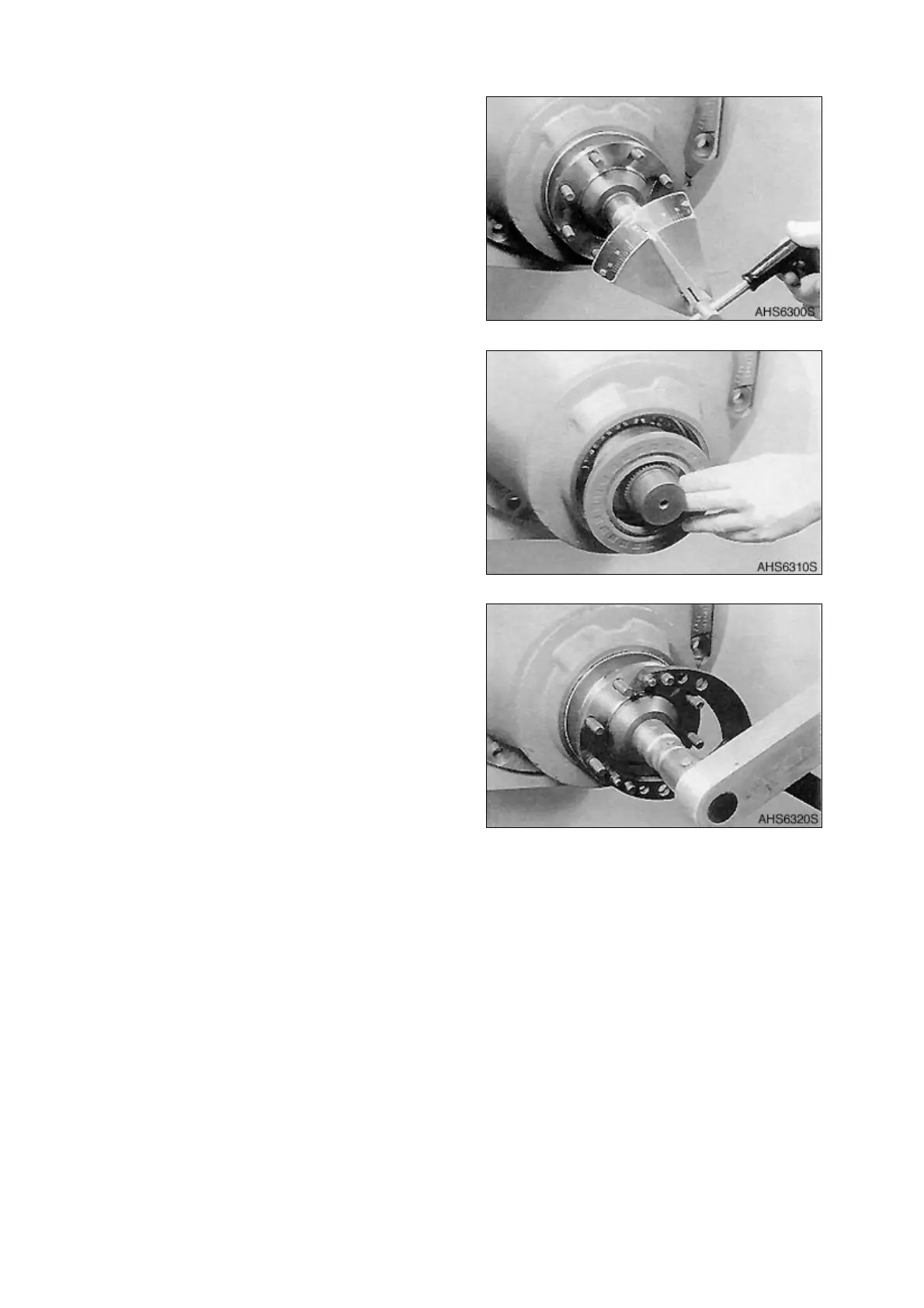

Figure 257
