S0602170K
Page 116
Axle (ZF AP 420R)

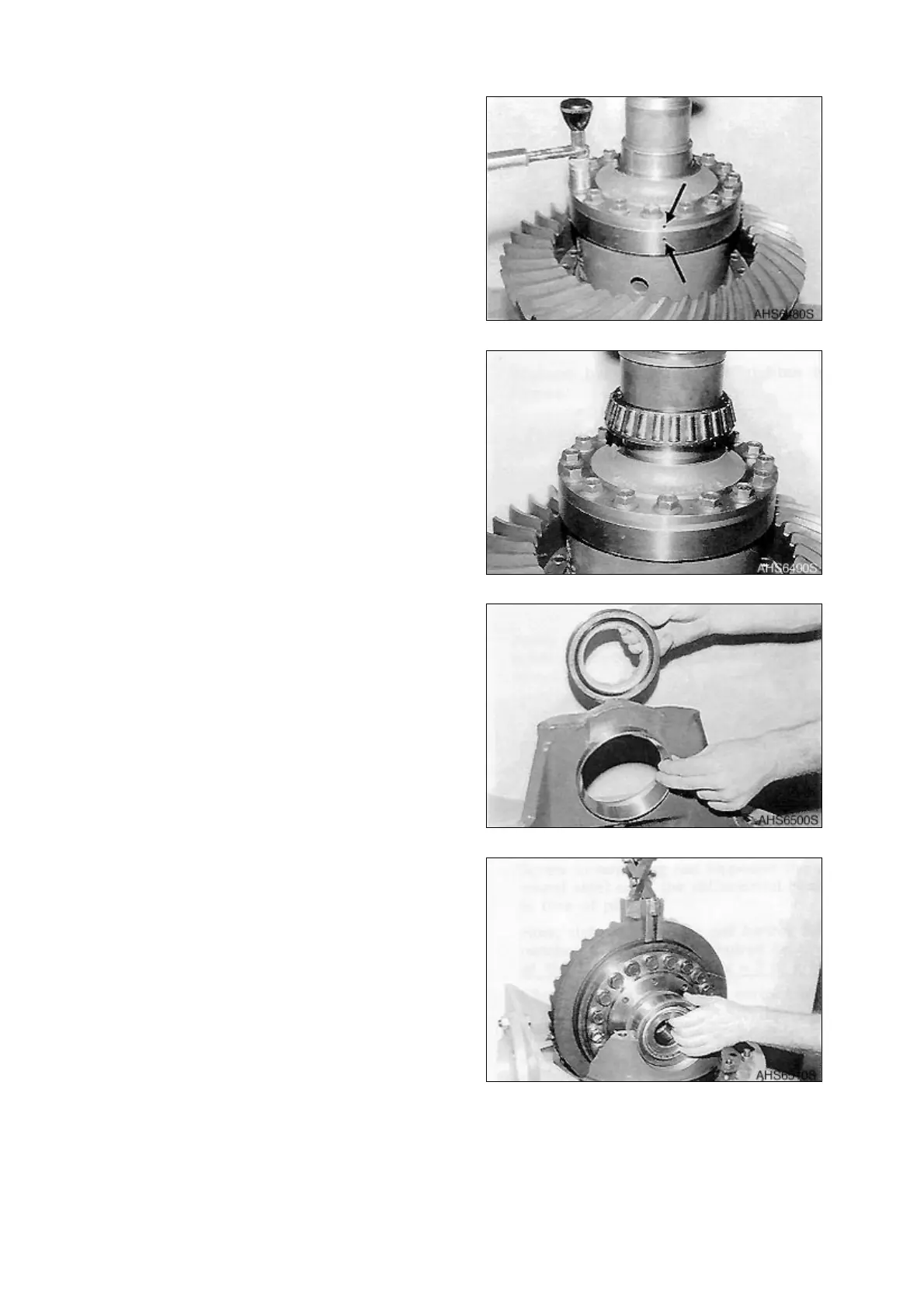

4. Lay housing cover over the differential
case and fasten it using locking screws.
NOTE:
See “Torque Limits for Screws”
on page 6.
NOTE:
Pay attention to the installation
position, see Figure 275. Only
single use of locking screws is
admitted.
5. Heat inner bearing race and position it on
the housing cover until contact is obtained.
6. Insert 1st outer bearing race into the
housing and hold it temporarily using
adjusting nut.
7. Mount 2nd outer bearing race and insert
the differential assembly into the axle
carrier.
NOTE:
See “Special Tools” on page 15.
Figure 275
Figure 276
Figure 277
Figure 278
