Daewoo Mega 500-V - Page 263

S0607080K
Page 12

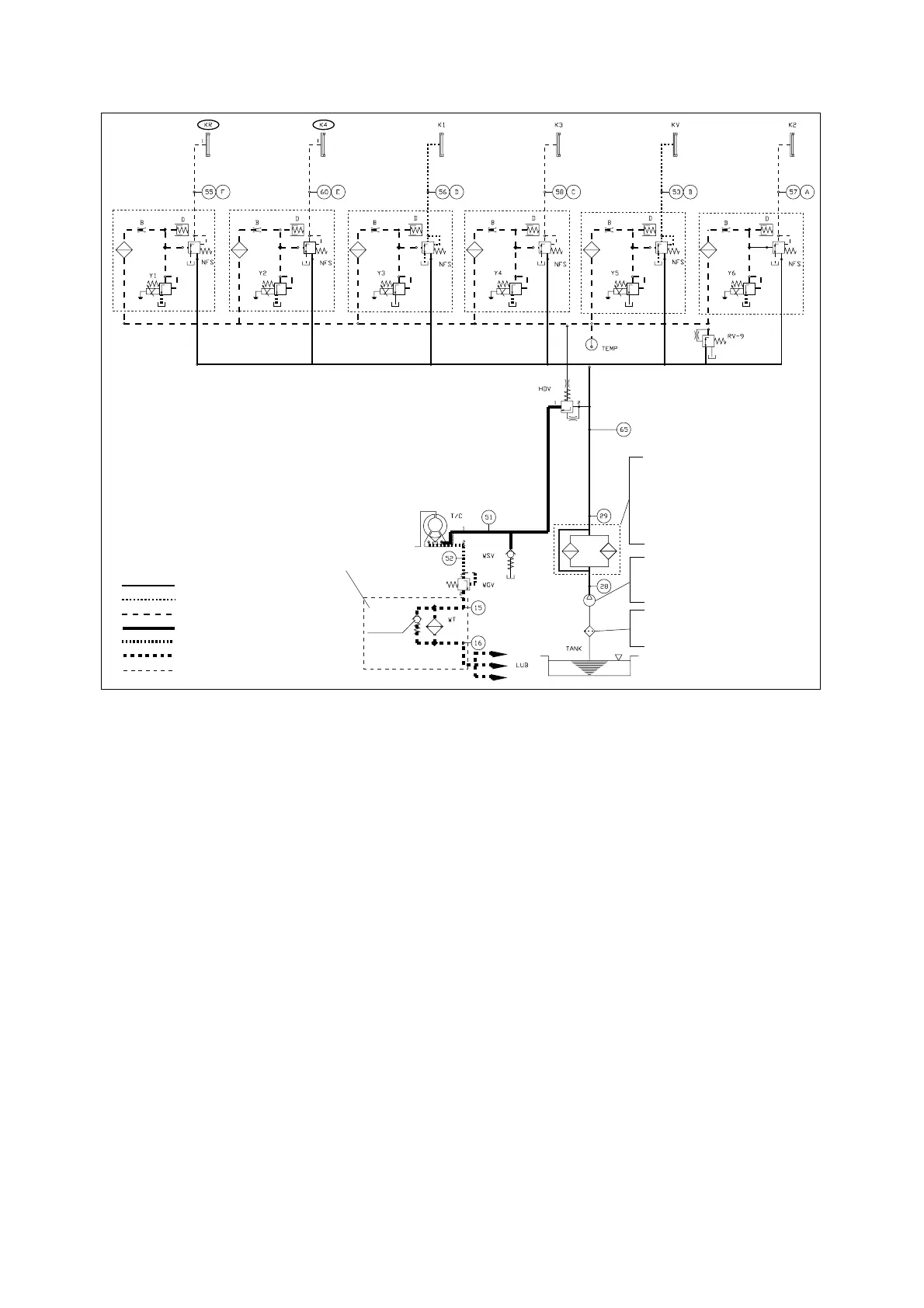

Transmission and Torque Converter
(ZF 4WG-310)
LEGEND:
= MAIN PRESSURE
= REGULATED MAIN PRESSURE
= PILOT PRESSURE
= CONVERTER INPUT PRESSURE
= CONVERTER OUTPUT PRESSURE
= LUBRICATION
= RETURN INTO THE SUMP
ZF-FINE FILTER
FILTER GRADE ACCORDING ISO 4572:
β30>75 β15=25 β10=5.0
DUST CAPACITY ACCORDING ISO 4572:
min. 17g
FILTER SURFACE
cm
2 x 6,700 = 13,400
2
TRANSMISSION PUMP
p = 16+2 bar
Q = 130 l/min at
n = ENGINE 2000 min
-1
p
-1
COARSE FILTER
MESH WIDTH µm : 450
FILTER SURFACE cm 1000
2
BYPASS-
VALVE
∆p=1.5bar
WT
(SCOPE OF SUPPLY
CUSTOMER)
P1
P2
P3
P4
P5
P6
AJS0871L
Figure 4
