S0607080K
Page 80
Transmission and Torque Converter
(ZF 4WG-310)

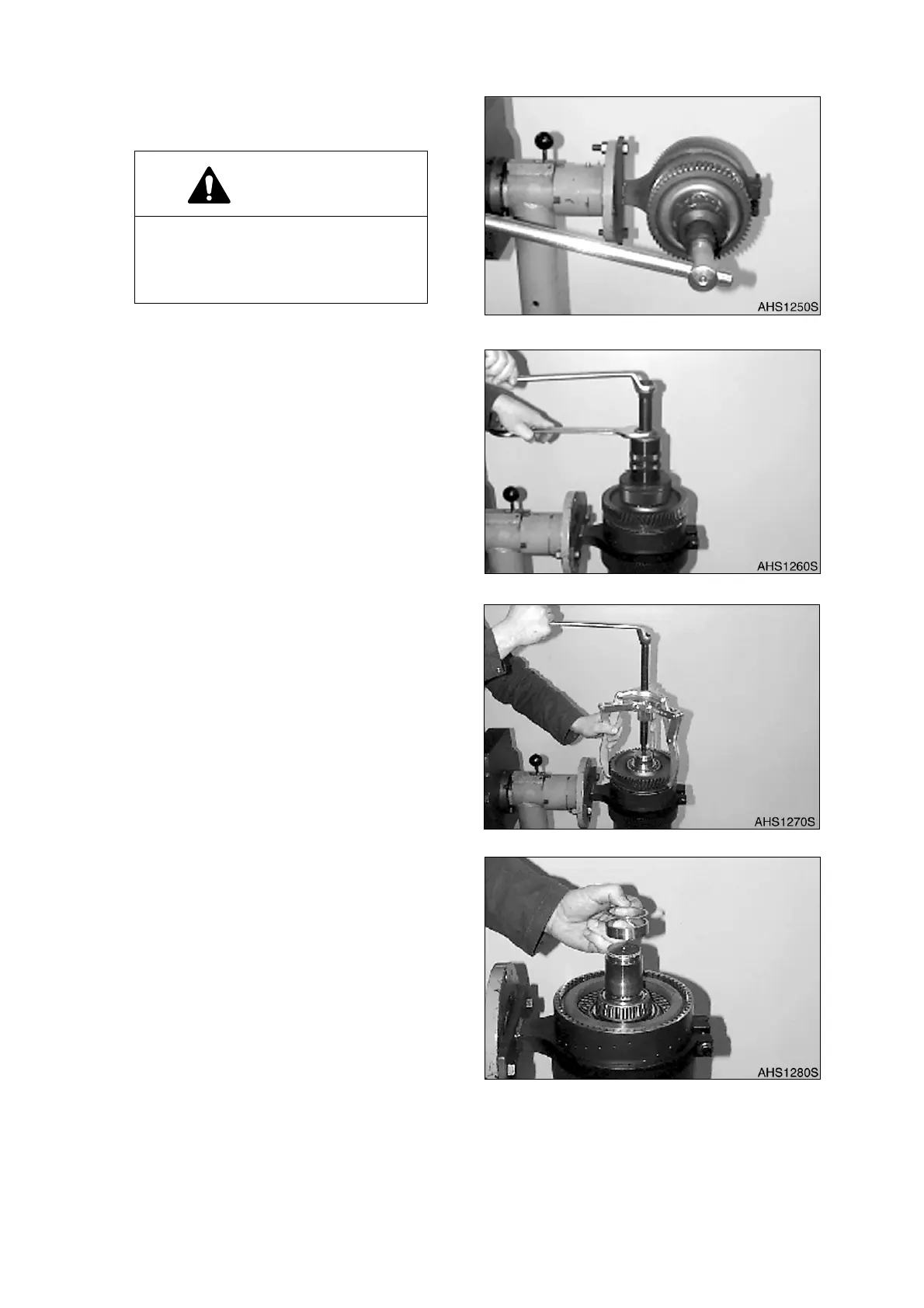

12. Tilt plate carrier 90˚.
13. Loosen slotted nut.
14. Pull tapered roller bearing from plate
carrier.
15. Pull spur gear KV from plate carrier.
16. Remove shim and ring.
CAUTION!
Slotted nut is secured with Loctite.
To prevent a damage of the thread,
heat the slotted nut before loosen it
(about 120˚C (248˚F)).
Figure 165
Figure 166
Figure 167
Figure 168
