S0607080K
Page 88
Transmission and Torque Converter
(ZF 4WG-310)

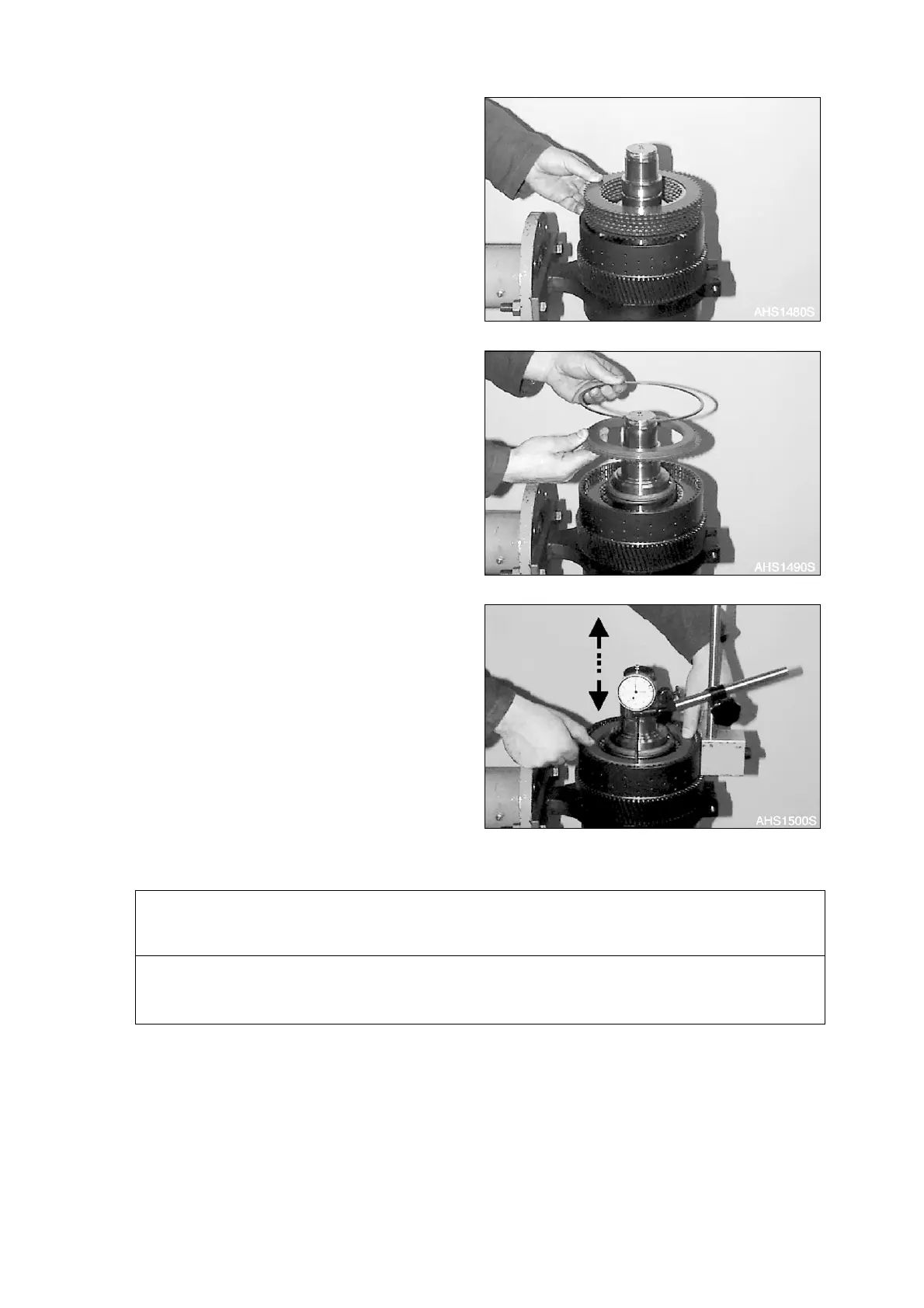

1. Check Plate Clearance - K4 (2.2 - 2.4 mm
(0.0866 - 0.0945 in)) (Figure 187- Figure
189).
NOTE:
To ensure a faultless measuring
result, install the plate pack for
the present without oil
A. Install the plate pack according to
Figure 186.
B. Introduce the end shim and secure it
using snap ring.
C. Press end shim on with about 100 N
(10 kg) and set dial indicator to
"Zero" (Figure 189).
D. Now, press end shim against the
snap ring (upward) and read the
plate clearance on the dial indicator.
E. After the performed adjustment of the
plate clearance, disassemble the
plate pack, oil the plates according to
ZF-List of lubricants TE-ML 03, and
install them again.
IMPORTANT
In case of a deviation from the required plate clearance (2.2 - 2.4 mm (0.0866 - 0.0945 in)),
correct with corresponding inner plate Item 6 (optional s = 2.5 - 4.0 mm (0.0984 - 0.1575 in))
or and snap ring Item 7 (optional).
Figure 187
Figure 188
Figure 189
