S0607080K
Page 104
Transmission and Torque Converter
(ZF 4WG-310)

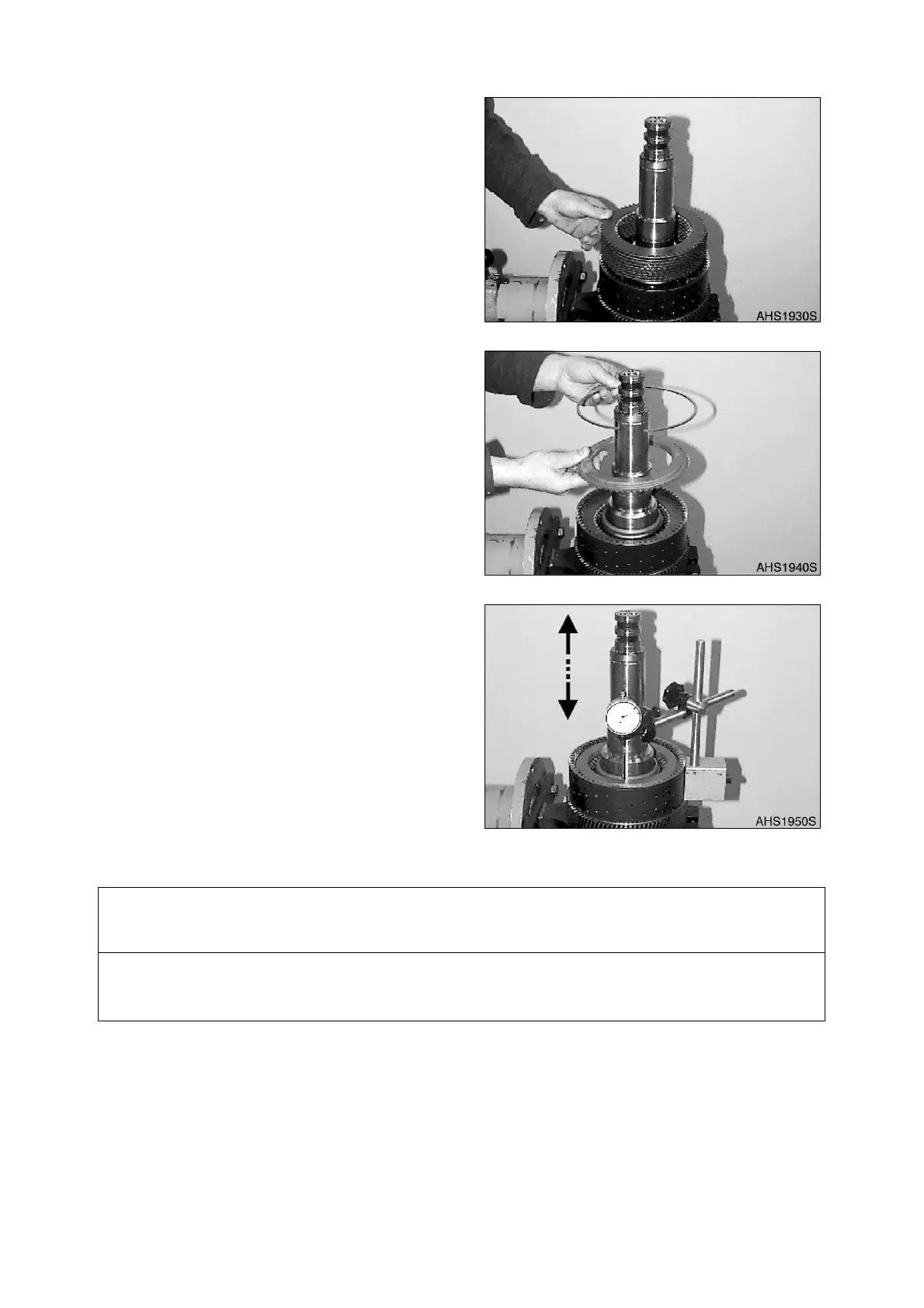

1. Check Plate clearanceK2 = 2.6 - 2.8 mm
(Figure 233 - Figure 235).
NOTE:
To ensure a faultless measuring
result, install the plates for the
present without oil.
A. Install the plate pack according to
Figure 232.
B. Introduce end shim and secure it
using snap ring.
C. Press the end shim on with about
100 N (10 kg) and set the dial
indicator to "Zero."
D. Now, press the end shim against the
snap ring (upward) and read the
plate clearance on the dial indicator.
E. After the performed adjustment of the
plate clearance, disassemble the
plate pack, oil the plates according to
ZF-List of lubricants TE-ML 03 and
install them again.
IMPORTANT
In case of deviations from the required plate clearance = 2.6 - 2.8 mm (0.1024 - 0.1102 in), correct
with corresponding inner plate Item 7 (optional s = 2.5 - 4.0 mm (0.0984 - 0.1575 in)) or and snap
ring Item 8 (optional).
Figure 233
Figure 234
Figure 235
