Daewoo Mega 500-V - Page 462

S0705010
Page 6
Cylinders
Return to Master Table of Contents

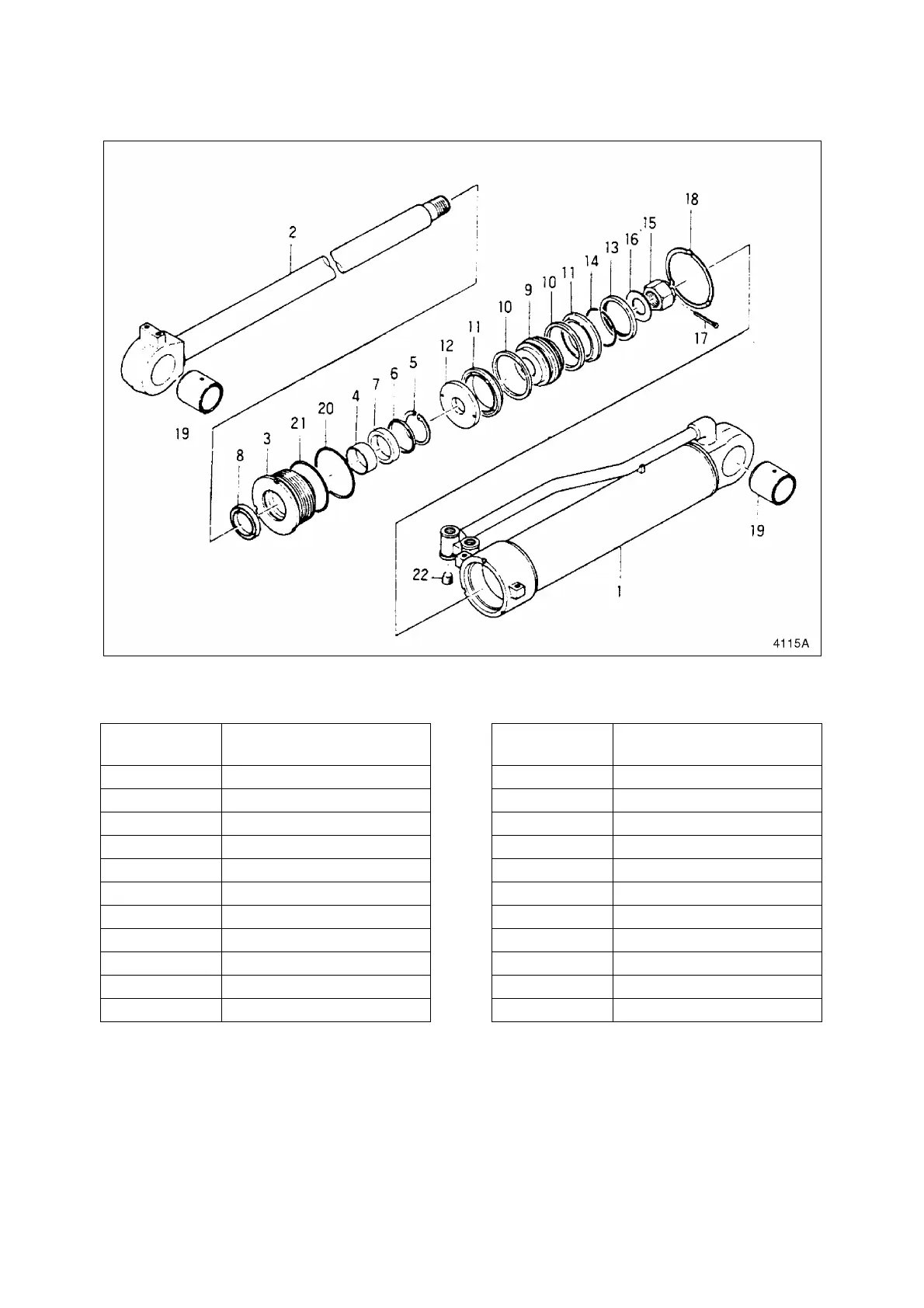

Bucket Hydraulic Cylinder
Figure 6
Reference
Number
Description
1 Cylinder Tube
2 Cylinder Rod
3 Cylinder Head
4 Bushing
5 Snap Ring
6 Packing Header
7 U-ring
8 Wiper Ring
9 Piston
10 Piston Ring
11 U-ring
12 U-ring Holder
13 U-ring Holder
14 Stopper
15 Castle Nut
16 Shim
17 Dividing Pin
18 Lock Washer
19 Pin Bushing
20 O-ring
21 O-ring
22 Plug
Reference
Number
Description
