Main Pump (Denison T6DMY Series)
Reference
Number
Description
1 Primary Seal
2 Secondary Seal
3 Special Shaft (Longer Seal
Area)
4 Plastic Plug
A 16.002 mm
(0.630 in)
B 58.420 mm
(2.30 in)

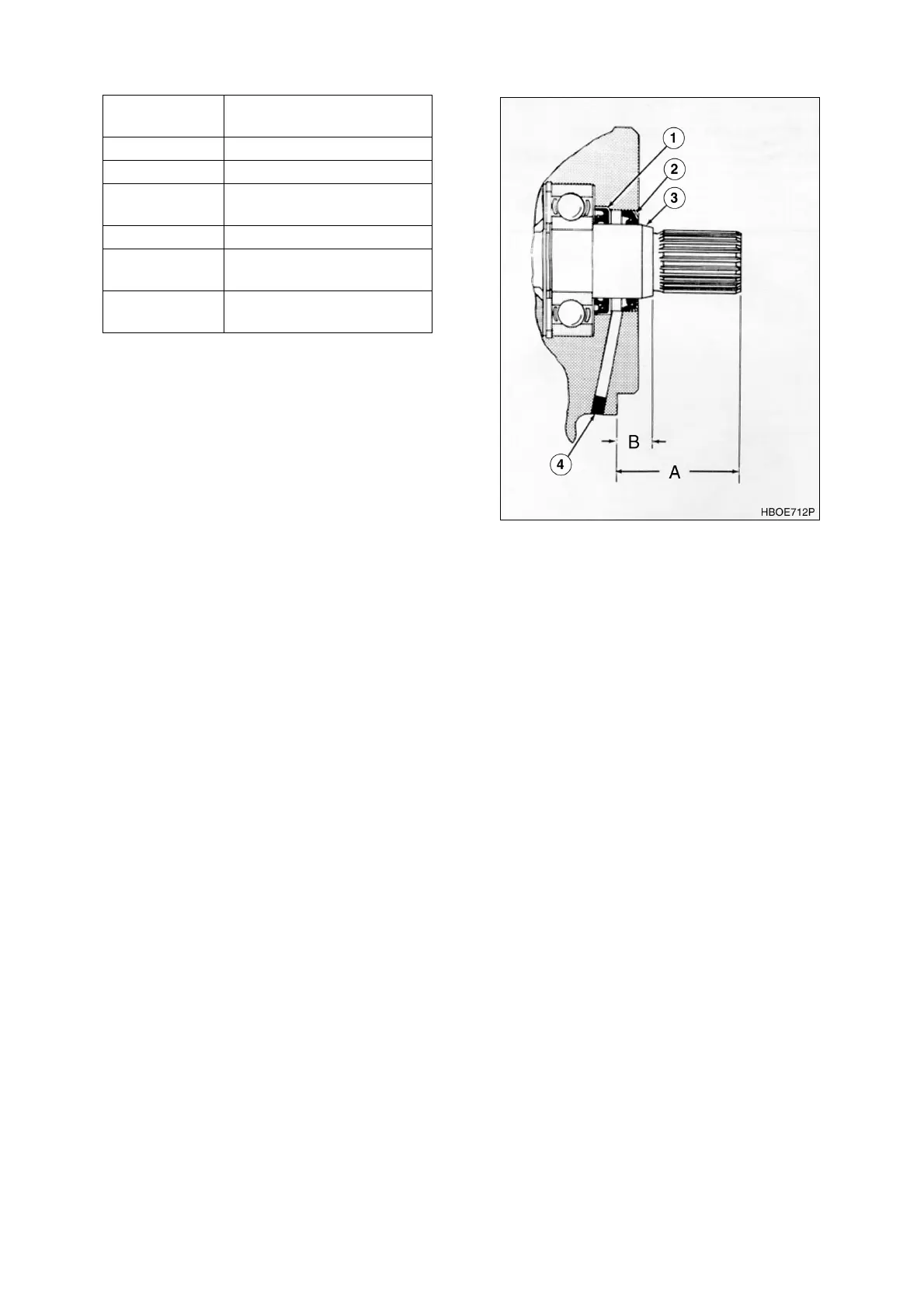

Figure 7 DOUBLE SHAFT SEAL
ARRANGEMENT
