Daewoo Mega 500-V - Page 568

S0709665K
Page 14
Flow Amplifier (Danfoss)
E. Remove plate and six O-rings.
F. Remove spring guide.
5. Removing end cover at LS-connection.
A. Unscrew screws with spring washer
using hexagon socket for 13 mm
external hexagon and 10 mm internal
hexagon.

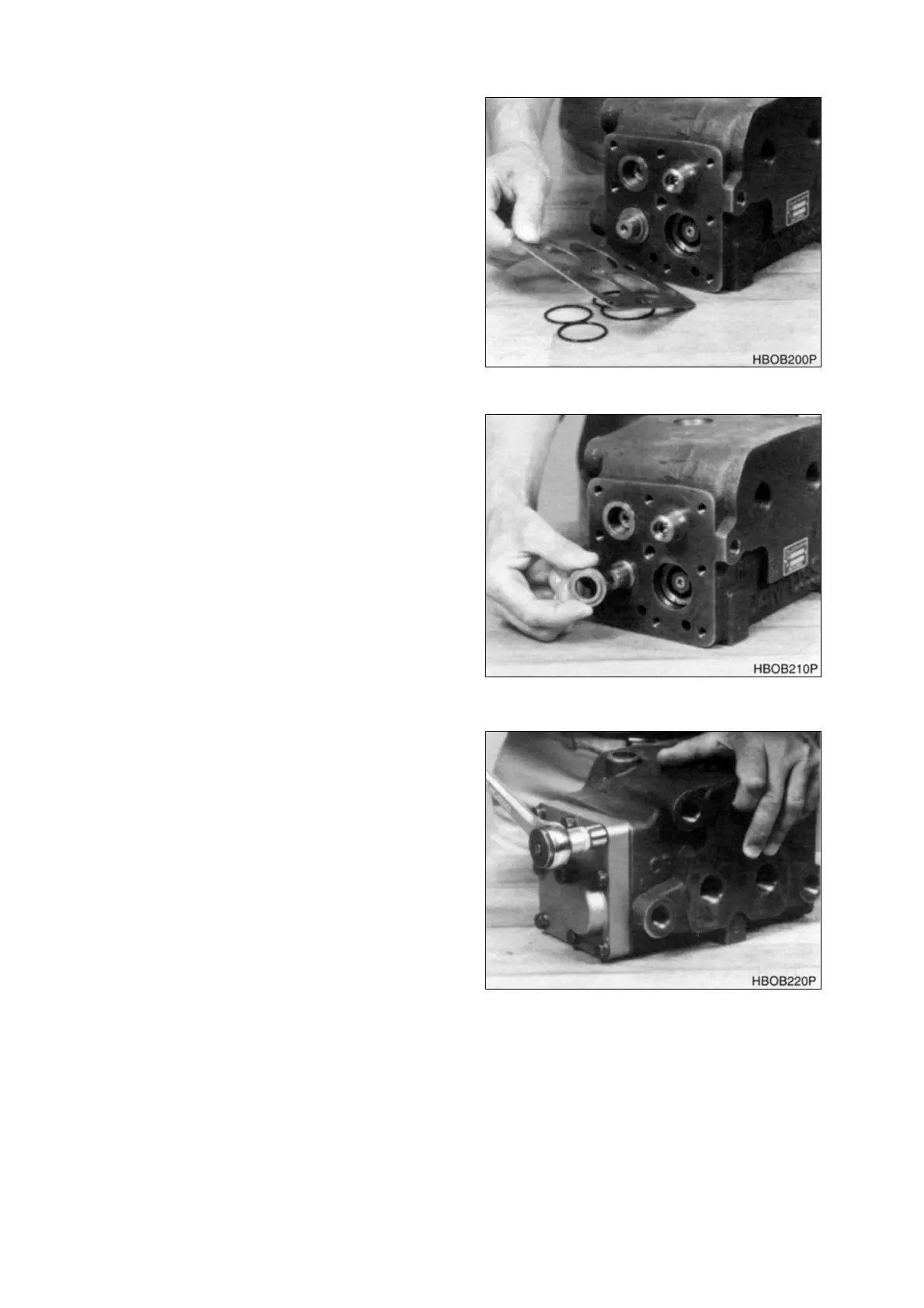

Figure 21
Figure 22
Figure 23
